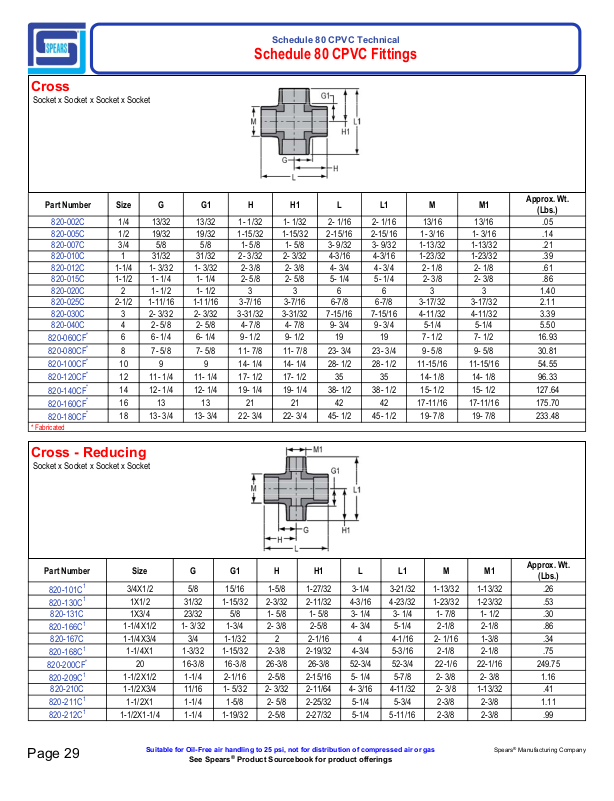

Cross
9
Socket x Socket x Socket x Socket
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Part Number Size G G1 H H1 L L1 M M1
820-002C 1/4 13/32 13/32 1- 1/32 1- 1/32 2- 1/16 2- 1/16 13/16 13/16 .05
820-005C 1/2 19/32 19/32 1-15/32 1-15/32 2-15/16 2-15/16 1- 3/16 1- 3/16 .14
820-007C 3/4 5/8 5/8 1- 5/8 1- 5/8 3- 9/32 3- 9/32 1-13/32 1-13/32 .21
820-010C 1 31/32 31/32 2- 3/32 2- 3/32 4-3/16 4-3/16 1-23/32 1-23/32 .39
820-012C 1-1/4 1- 3/32 1- 3/32 2- 3/8 2- 3/8 4- 3/4 4- 3/4 2- 1/8 2- 1/8 .61
820-015C 1-1/2 1- 1/4 1- 1/4 2- 5/8 2- 5/8 5- 1/4 5- 1/4 2- 3/8 2- 3/8 .86
820-020C 2 1- 1/2 1- 1/2 3 3 6 6 3 3 1.40
820-025C 2-1/2 1-11/16 1-11/16 3-7/16 3-7/16 6-7/8 6-7/8 3-17/32 3-17/32 2.11
820-030C 3 2- 3/32 2- 3/32 3-31/32 3-31/32 7-15/16 7-15/16 4-11/32 4-11/32 3.39
820-040C 4 2- 5/8 2- 5/8 4- 7/8 4- 7/8 9- 3/4 9- 3/4 5-1/4 5-1/4 5.50
820-060CF
820-080CF
820-100CF
820-120CF
820-140CF
820-160CF
820-180CF
* Fabricated
*
*
*
*
*
*
*
6 6- 1/4 6- 1/4 9- 1/2 9- 1/2 19 19 7- 1/2 7- 1/2 16.93
8 7- 5/8 7- 5/8 11- 7/8 11- 7/8 23- 3/4 23- 3/4 9- 5/8 9- 5/8 30.81
10 9 9 14- 1/4 14- 1/4 28- 1/2 28- 1/2 11-15/16 11-15/16 54.55
12 11- 1/4 11- 1/4 17- 1/2 17- 1/2 35 35 14- 1/8 14- 1/8 96.33
14 12- 1/4 12- 1/4 19- 1/4 19- 1/4 38- 1/2 38- 1/2 15- 1/2 15- 1/2 127.64
16 13 13 21 21 42 42 17-11/16 17-11/16 175.70
18 13- 3/4 13- 3/4 22- 3/4 22- 3/4 45- 1/2 45- 1/2 19- 7/8 19- 7/8 233.48
Cross - Reducing
Socket x Socket x Socket x Socket
Approx. Wt.
(Lbs.)
Part Number Size G G1 H H1 L L1 M M1
820-101C
820-130C
1
1
3/4X1/2 5/8 15/16 1-5/8 1-27/32 3-1/4 3-21/32 1-13/32 1-13/32 .26
1X1/2 31/32 1-15/32 2-3/32 2-11/32 4-3/16 4-23/32 1-23/32 1-23/32 .53
820-131C 1X3/4 23/32 5/8 1- 5/8 1- 5/8 3- 1/4 3- 1/4 1- 7/8 1- 1/2 .30
820-166C
1
1-1/4X1/2 1- 3/32 1-3/4 2- 3/8 2-5/8 4- 3/4 5-1/4 2-1/8 2-1/8 .86
820-167C 1-1/4X3/4 3/4 1-1/32 2 2-1/16 4 4-1/16 2- 1/16 1-3/8 .34
820-168C
820-200CF
820-209C
1
*
1
1-1/4X1 1-3/32 1-15/32 2-3/8 2-19/32 4-3/4 5-3/16 2-1/8 2-1/8 .75
20 16-3/8 16-3/8 26-3/8 26-3/8 52-3/4 52-3/4 22-1/6 22-1/16 249.75
1-1/2X1/2 1-1/4 2-1/16 2-5/8 2-15/16 5- 1/4 5-7/8 2- 3/8 2- 3/8 1.16
820-210C 1-1/2X3/4 11/16 1- 5/32 2- 3/32 2-11/64 4- 3/16 4-11/32 2- 3/8 1-13/32 .41
820-211C
820-212C
Page 2
1
1
1-1/2X1 1-1/4 1-5/8 2- 5/8 2-25/32 5-1/4 5-3/4 2-3/8 2-3/8 1.11
1-1/2X1-1/4 1-1/4 1-19/32 2-5/8 2-27/32 5-1/4 5-11/16 2-3/8 2-3/8 .99
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
See Spears® Product Sourcebook for product offerings
Spears® Manufacturing Company
Approx. Wt.
(Lbs.)
