Schedule 80 PVC Technical
.

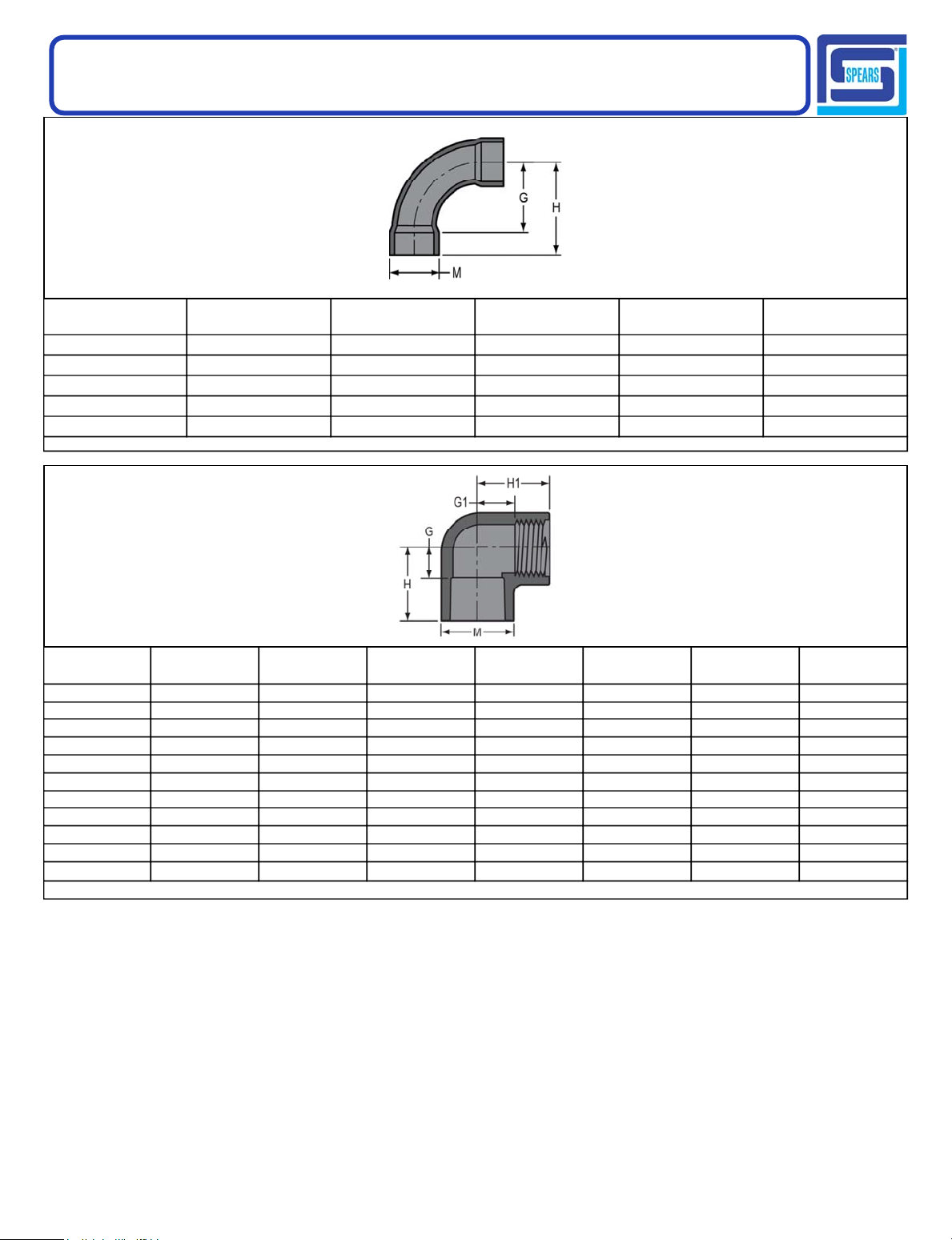

Schedule 80 Fittings
90° Ell - Long Sweep
Socket x Socket
Part Number Size G H M
806-030LSF
806-040LSF
806-060LSF
806-080LSF
806-100LSF
* Fabricated
*
*
*
*
*
3 7 9 4- 1/8 2.35
4 9 11- 1/4 5- 3/16 3.96
6 13 16- 1/4 7- 1/2 10.96
8 23-1/2 27-3/4 9-5/8 28.88
10 27 32-1/4 11-15/16 54.18
90° Ell
Socket x Fipt
(Continued)
Approx. Wt.
(Lbs.)
Part Number Size G G1 H H1 M
807-002 1/4 5/16 11/32 15/16 15/16 7/8 .03
807-003 3/8 1/4 7/16 1- 1/32 1- 1/32 1- 1/32 .05
807-005 1/2 15/32 9/16 1-11/32 1- 9/32 1- 3/16 .08
807-007 3/4 9/16 11/16 1- 9/16 1-13/32 1- 3/8 .10
807-010 1 11/16 3/4 1-7/8 1-11/16 1-23/32 .18
807-012 1-1/4 23/32 1- 1/32 1-31/32 1-31/32 2- 1/16 .28
807-015 1-1/2 31/32 1- 7/32 2-11/32 2- 5/32 2-3/8 .39
807-020 2 1-13/32 1-1/2 2-15/16 2-1/2 3 .80
807-030 3 1-13/16 2-1/4 3-11/16 3- 9/16 4-1/4 1.92
807-040 4 2-3/8 2-13/16 4- 9/16 4-7/32 5- 1/4 2.86
1
807-060
1
Thread outlet sized with Female Adapter
6 3-3/4 7-1/8 6-25/32 8-3/4 7-19/32 10.35
Approx. Wt.
(Lbs.)
Made in the U.S.A
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
See Spears® Product Sourcebook for product offerings
