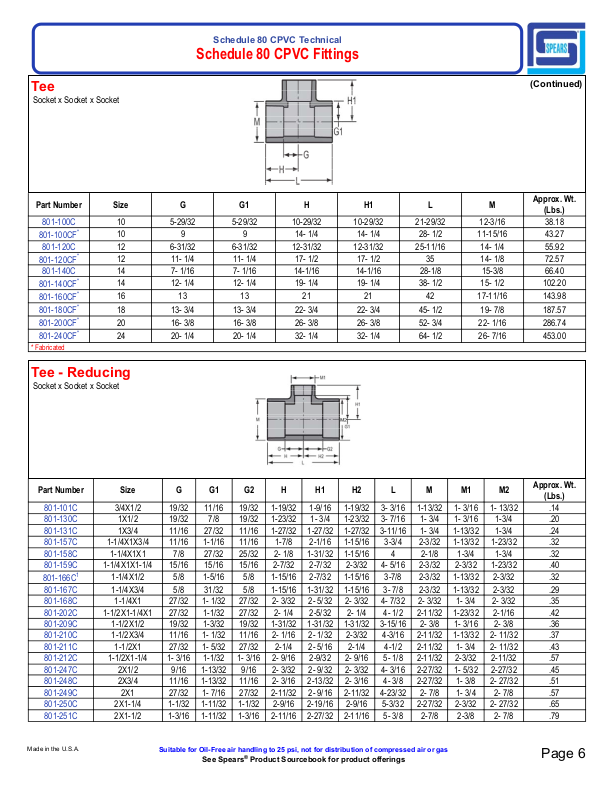

Schedule 80 CPVC Technical
.
Schedule 80 CPVC Fittings

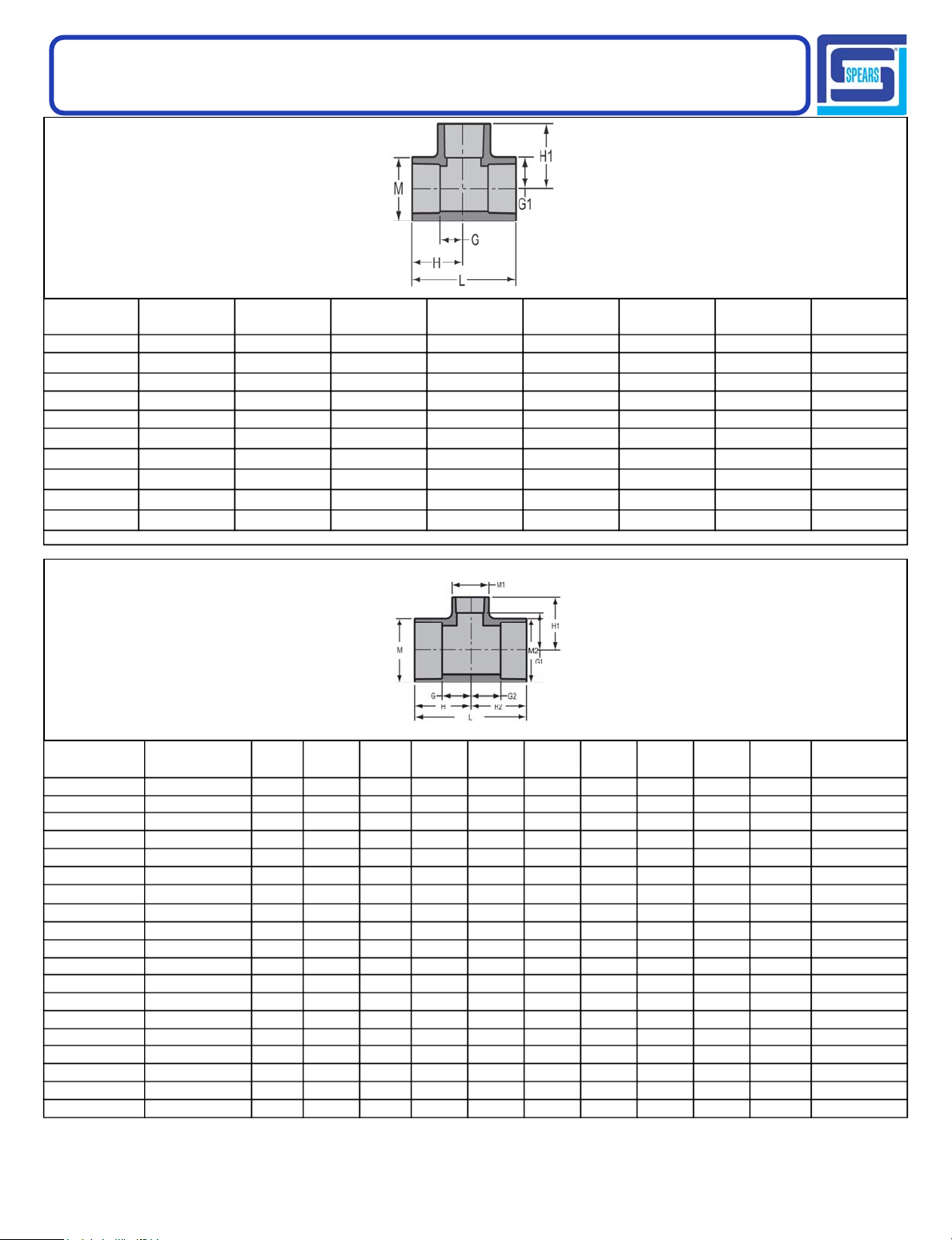

Tee
(Continued)
Socket x Socket x Socket
Part Number Size G G1 H H1 L M
801-100C 10 5-29/32 5-29/32 10-29/32 10-29/32 21-29/32 12-3/16 38.18
801-100CF
*
10 9 9 14- 1/4 14- 1/4 28- 1/2 11-15/16 43.27
801-120C 12 6-31/32 6-31/32 12-31/32 12-31/32 25-11/16 14- 1/4 55.92
801-120CF
*
12 11- 1/4 11- 1/4 17- 1/2 17- 1/2 35 14- 1/8 72.57
801-140C 14 7- 1/16 7- 1/16 14-1/16 14-1/16 28-1/8 15-3/8 66.40
801-140CF
801-160CF
801-180CF
801-200CF
801-240CF
* Fabricated
*
*
*
*
*
14 12- 1/4 12- 1/4 19- 1/4 19- 1/4 38- 1/2 15- 1/2 102.20
16 13 13 21 21 42 17-11/16 143.98
18 13- 3/4 13- 3/4 22- 3/4 22- 3/4 45- 1/2 19- 7/8 187.57
20 16- 3/8 16- 3/8 26- 3/8 26- 3/8 52- 3/4 22- 1/16 286.74
24 20- 1/4 20- 1/4 32- 1/4 32- 1/4 64- 1/2 26- 7/16 453.00
Tee - Reducing
Socket x Socket x Socket
Approx. Wt.
(Lbs.)
Part Number Size G G1 G2 H H1 H2 L M M1 M2
801-101C 3/4X1/2 19/32 11/16 19/32 1-19/32 1-9/16 1-19/32 3- 3/16 1-13/32 1- 3/16 1- 13/32 .14
801-130C 1X1/2 19/32 7/8 19/32 1-23/32 1- 3/4 1-23/32 3- 7/16 1- 3/4 1- 3/16 1-3/4 .20
801-131C 1X3/4 11/16 27/32 11/16 1-27/32 1-27/32 1-27/32 3-11/16 1- 3/4 1-13/32 1-3/4 .24
801-157C 1-1/4X1X3/4 11/16 1-1/16 11/16 1-7/8 2-1/16 1-15/16 3-3/4 2-3/32 1-13/32 1-23/32 .32
801-158C 1-1/4X1X1 7/8 27/32 25/32 2- 1/8 1-31/32 1-15/16 4 2-1/8 1-3/4 1-3/4 .32
801-159C 1-1/4X1X1-1/4 15/16 15/16 15/16 2-7/32 2-7/32 2-3/32 4- 5/16 2-3/32 2-3/32 1-23/32 .40
801-166C
1
1-1/4X1/2 5/8 1-5/16 5/8 1-15/16 2-7/32 1-15/16 3-7/8 2-3/32 1-13/32 2-3/32 .32
801-167C 1-1/4X3/4 5/8 31/32 5/8 1-15/16 1-31/32 1-15/16 3- 7/8 2-3/32 1-13/32 2-3/32 .29
801-168C 1-1/4X1 27/32 1- 1/32 27/32 2- 3/32 2- 5/32 2- 3/32 4- 7/32 2- 3/32 1- 3/4 2- 3/32 .35
801-202C 1-1/2X1-1/4X1 27/32 1-1/32 27/32 2- 1/4 2-5/32 2- 1/4 4- 1/2 2-11/32 1-23/32 2-1/16 .42
801-209C 1-1/2X1/2 19/32 1-3/32 19/32 1-31/32 1-31/32 1-31/32 3-15/16 2- 3/8 1- 3/16 2- 3/8 .36
801-210C 1-1/2X3/4 11/16 1- 1/32 11/16 2- 1/16 2- 1/32 2-3/32 4-3/16 2-11/32 1-13/32 2- 11/32 .37
801-211C 1-1/2X1 27/32 1- 5/32 27/32 2-1/4 2- 5/16 2-1/4 4-1/2 2-11/32 1- 3/4 2- 11/32 .43
801-212C 1-1/2X1-1/4 1- 3/16 1-1/32 1- 3/16 2- 9/16 2-9/32 2- 9/16 5- 1/8 2-11/32 2-3/32 2-11/32 .57
801-247C 2X1/2 9/16 1-13/32 9/16 2- 3/32 2- 9/32 2- 3/32 4- 3/16 2-27/32 1- 5/32 2-27/32 .45
801-248C 2X3/4 11/16 1-13/32 11/16 2- 3/16 2-13/32 2- 3/16 4- 3/8 2-27/32 1- 3/8 2- 27/32 .51
801-249C 2X1 27/32 1- 7/16 27/32 2-11/32 2- 9/16 2-11/32 4-23/32 2- 7/8 1- 3/4 2- 7/8 .57
801-250C 2X1-1/4 1-1/32 1-11/32 1-1/32 2-9/16 2-19/16 2-9/16 5-3/32 2-27/32 2-3/32 2- 27/32 .65
801-251C 2X1-1/2 1-3/16 1-11/32 1-3/16 2-11/16 2-27/32 2-11/16 5- 3/8 2-7/8 2-3/8 2- 7/8 .79
Made in the U.S.A
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
See Spears® Product Sourcebook for product offerings
Approx. Wt.
(Lbs.)
Page 6
