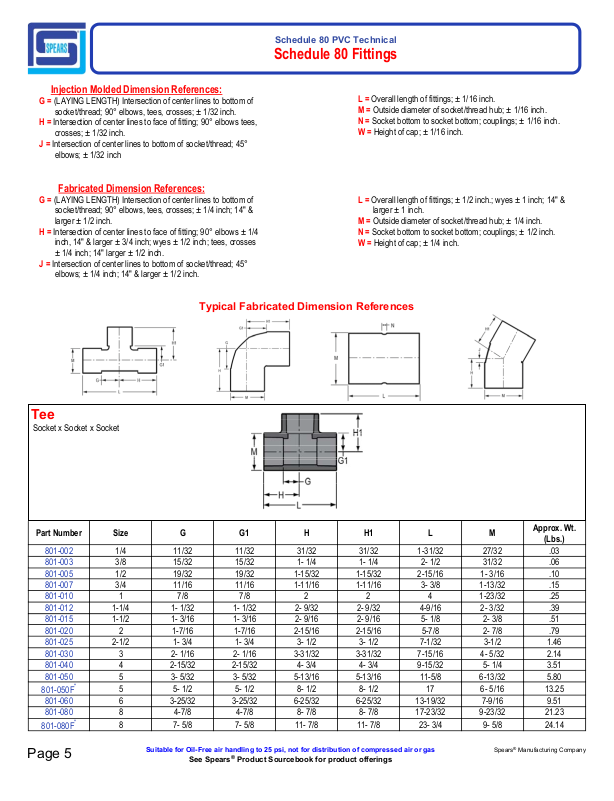

Schedule 80 PVC Technical
5
Schedule 80 Fittings
Injection Molded Dimension References:
G = (LAYING LENGTH) Intersection of center lines to bottom of
socket/thread; 90° elbows, tees, crosses; ± 1/32 inch.
H = Intersection of center lines to face of fitting; 90° elbows tees,
crosses; ± 1/32 inch.
J = Intersection of center lines to bottom of socket/thread; 45°
elbows; ± 1/32 inch
Fabricated Dimension References:
G = (LAYING LENGTH) Intersection of center lines to bottom of
socket/thread; 90° elbows, tees, crosses; ± 1/4 inch; 14" &
larger ± 1/2 inch.
H = Intersection of center lines to face of fitting; 90° elbows ± 1/4
inch, 14" & larger ± 3/4 inch; wyes ± 1/2 inch; tees, crosses
± 1/4 inch; 14" larger ± 1/2 inch.
J = Intersection of center lines to bottom of socket/thread; 45°
elbows; ± 1/4 inch; 14" & larger ± 1/2 inch.

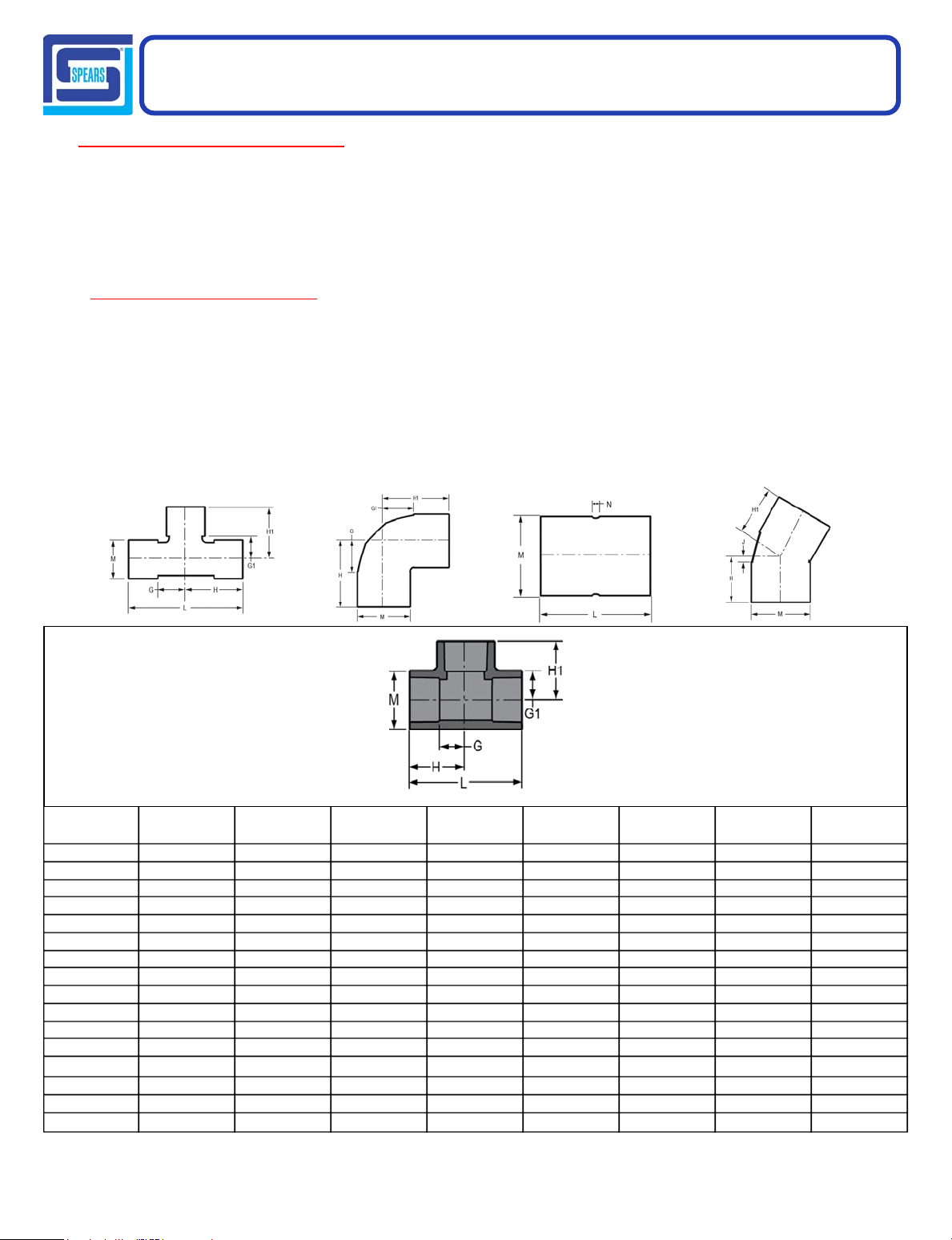

Typical Fabricated Dimension References
L = Overall length of fittings; ± 1/16 inch.
M = Outside diameter of socket/thread hub; ± 1/16 inch.
N = Socket bottom to socket bottom; couplings; ± 1/16 inch.
W = Height of cap; ± 1/16 inch.
L = Overall length of fittings; ± 1/2 inch.; wyes ± 1 inch; 14" &
larger ± 1 inch.
M = Outside diameter of socket/thread hub; ± 1/4 inch.
N = Socket bottom to socket bottom; couplings; ± 1/2 inch.
W = Height of cap; ± 1/4 inch.
Tee
Socket x Socket x Socket
Part Number Size G G1 H H1 L M
801-002 1/4 11/32 11/32 31/32 31/32 1-31/32 27/32 .03
801-003 3/8 15/32 15/32 1- 1/4 1- 1/4 2- 1/2 31/32 .06
801-005 1/2 19/32 19/32 1-15/32 1-15/32 2-15/16 1- 3/16 .10
801-007 3/4 11/16 11/16 1-11/16 1-11/16 3- 3/8 1-13/32 .15
801-010 1 7/8 7/8 2 2 4 1-23/32 .25
801-012 1-1/4 1- 1/32 1- 1/32 2- 9/32 2- 9/32 4-9/16 2- 3/32 .39
801-015 1-1/2 1- 3/16 1- 3/16 2- 9/16 2- 9/16 5- 1/8 2- 3/8 .51
801-020 2 1-7/16 1-7/16 2-15/16 2-15/16 5-7/8 2- 7/8 .79
801-025 2-1/2 1- 3/4 1- 3/4 3- 1/2 3- 1/2 7-1/32 3-1/2 1.46
801-030 3 2- 1/16 2- 1/16 3-31/32 3-31/32 7-15/16 4- 5/32 2.14
801-040 4 2-15/32 2-15/32 4- 3/4 4- 3/4 9-15/32 5- 1/4 3.51
801-050 5 3- 5/32 3- 5/32 5-13/16 5-13/16 11-5/8 6-13/32 5.80
801-050F
801-080F
*
801-060 6 3-25/32 3-25/32 6-25/32 6-25/32 13-19/32 7-9/16 9.51
801-080 8 4-7/8 4-7/8 8- 7/8 8- 7/8 17-23/32 9-23/32 21.23
*
5 5- 1/2 5- 1/2 8- 1/2 8- 1/2 17 6- 5/16 13.25
8 7- 5/8 7- 5/8 11- 7/8 11- 7/8 23- 3/4 9- 5/8 24.14
Approx. Wt.
(Lbs.)
Page
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
See Spears® Product Sourcebook for product offerings
Spears® Manufacturing Company
