Schedule 40 Fittings & Accessories Technical Information
j

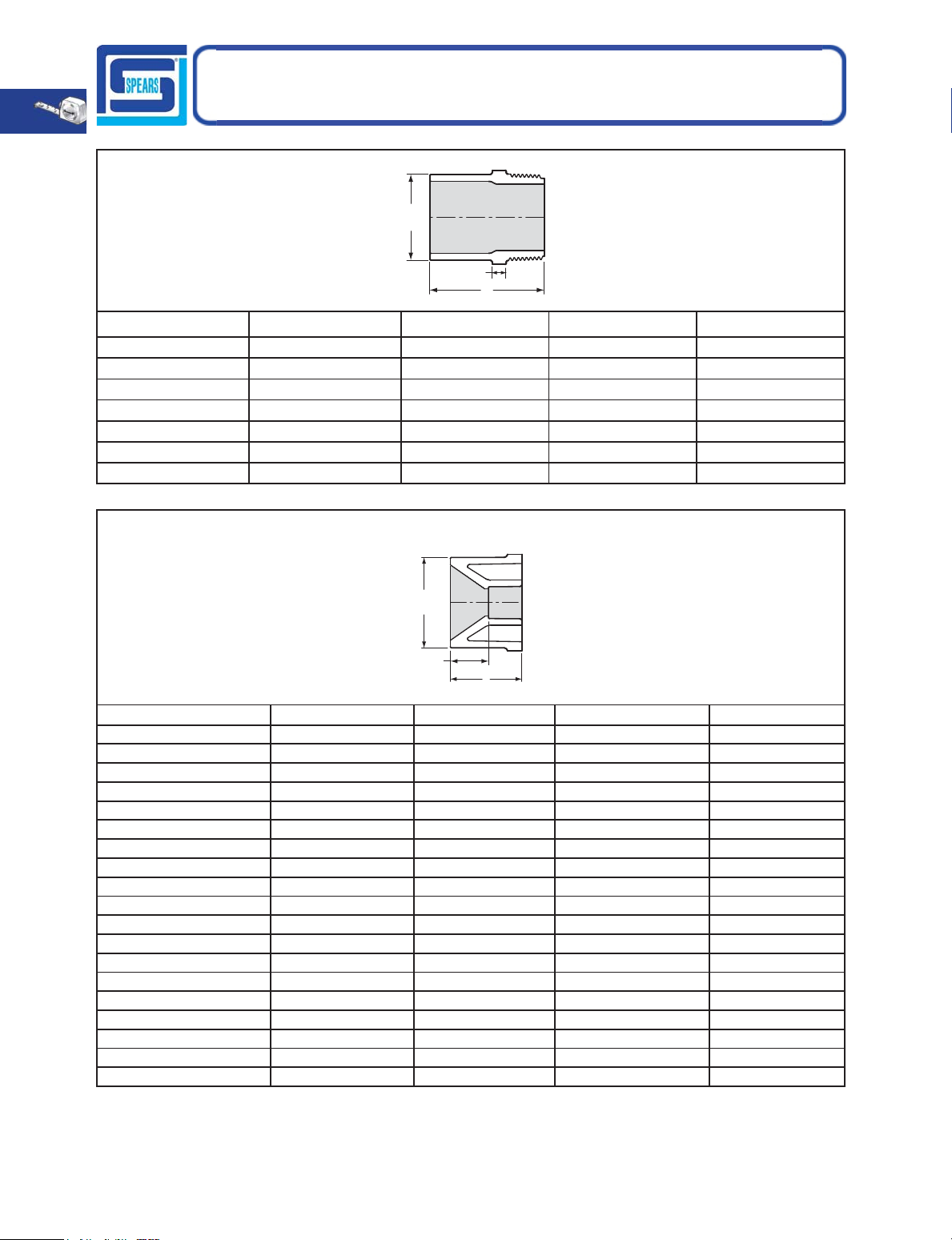

Schedule 40 Fittings Dimensions & Information
MALE ADAPTER
Spigot x Mipt
PIPE O.D.
N
L
Part Number Size L N Approx. Wt. (Lbs.)
461-005 1/2 1-11/16 11/32 .03 461-007 3/4 2 13/32 .04 461-010 1 2-1/4 11/32 .06 461-131 1x3/4 1-15/16 1/4 .06 461-012 1-1/4 2-9/32 9/32 .09 461-015 1-1/2 2-7/16 5/16 .12 461-020 2 2-9/16 3/8 .17
REDUCER BUSHING (Flush Style)
Spigot x Socket
PIPE O.D.
N
L
Part Number Size L N Approx. Wt. (Lbs.)
437-052 3/8x1/4 31/32 5/16 .01 437-072 1/2x1/4 1-3/32 13/32 .02 437-073 1/2x3/8 7/8 3/8 .02 437-101 3/4x1/2 1-1/16 9/32 .02 437-130 1x1/2 1-1/4 15/32 .05 437-131 1x3/4 1-1/4 5/16 .03 437-166 1-1/4x1/2 1-13/32 21/32 .08 437-167 1-1/4x3/4 1-1/2 19/32 .09 437-168 1-1/4x1 1-1/2 7/16 .06 437-209 1-1/2x1/2 1-15/32 23/32 .11 437-210 1-1/2x3/4 1-7/16 7/16 .12 437-211 1-1/2x1 1-17/32 1/2 .12 437-212 1-1/2x1-1/4 1-17/32 9/32 .06 437-247 2x1/2 1-5/8 7/8 .17 437-248 2x3/4 1-9/16 9/16 .16 437-249 2x1 1-9/16 17/32 .17 437-250 2x1-1/4 1-19/32 11/32 .18 437-251 2x1-1/2 1-9/16 1/4 .13 437-287 2-1/2x1/2 2-1/4 1-7/16 .32
Page 99 Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas SpearsĀ® Manufacturing Company
