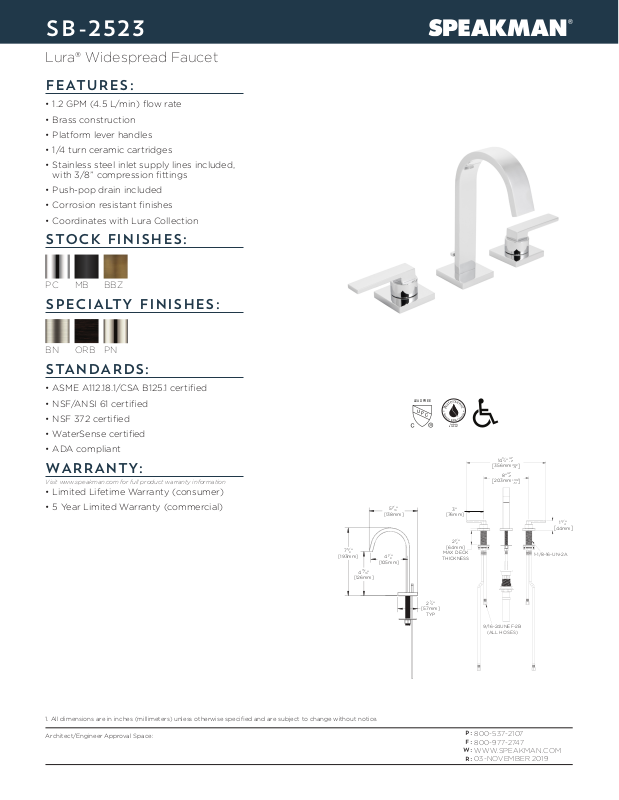

SB-2523
]
IAPMO R&T
LEAD FREE
Lura® Widespread Faucet
FEATURES:
• 1.2 GPM (4.5 L/min) flow rate
• Brass construction
• Platform lever handles
• 1/4 turn ceramic cartridges
• Stainless steel inlet supply lines included,
with 3/8” compression fittings
• Push-pop drain included
• Corrosion resistant finishes
• Coordinates with Lura Collection
STOCK FINISHES:
MB BBZ
PC
SPECIALTY FINISHES:
BN
ORB
PN
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
• NSF/ANSI 61 certified
• NSF 372 certified
• WaterSense certified
• ADA compliant
WARRANTY:
Visit www.speakman.com for full product warranty information
• Limited Lifetime Warranty (consumer)
• 5 Year Limited Warranty (commercial)
Certified by
3
+4
"
⁄
"
14
-2
"
4
+102
356mm
[
]
-51
+4
"
8
"
-2
"
+102
203mm
[
]
-51
7
⁄
"
5
16
[138mm]
5
⁄
7
"
8
[193mm]
4
[126mm]
1
⁄
"
4
8
[105mm]
15
⁄
"
16
[57mm]
2
TYP
1
⁄
"
4
3
"
[76mm]
1
⁄
2
"
2
[64mm]
MAX DECK
THICKNESS
9/16-24UNEF-2B
(ALL HOSES)
1
44mm
[
1-1/8-16-UN-2A
3
⁄
"
4
1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
P:
800-537-2107
F:
80 0 -97 7-2 747
W:
WWW.SPEAKMAN.COM
R:
03-NOVEMBER 2019
