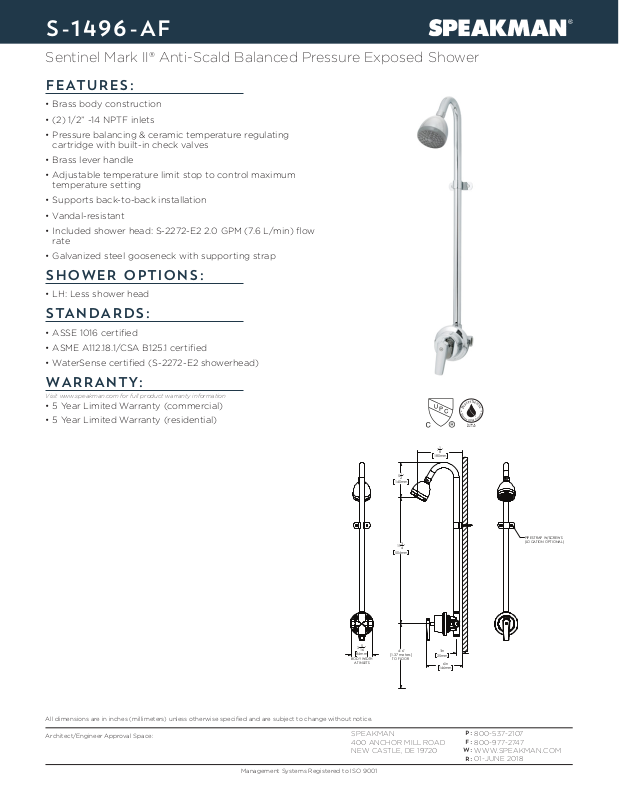

Page 1
S-1496-AF
IAPMO R&T
Sentinel Mark II® Anti-Scald Balanced Pressure Exposed Shower
FEATURES:
• Brass body construction
• (2) 1/2” -14 NPTF inlets
• Pressure balancing & ceramic temperature regulating
cartridge with built-in check valves
• Brass lever handle
• Adjustable temperature limit stop to control maximum
temperature setting
• Supports back-to-back installation
• Vandal-resistant
• Included shower head: S-2272-E2 2.0 GPM (7.6 L/min) flow
rate
• Galvanized steel gooseneck with supporting strap
SHOWER OPTIONS:
• LH: Less shower head
STANDARDS:
• ASSE 1016 certified
• ASME A112.18.1/CSA B125.1 certified
• WaterSense certified (S-2272-E2 showerhead)
WARRANTY:
Visit www.speakman.com for full product warranty information
• 5 Year Limited Warranty (commercial)
• 5 Year Limited Warranty (residential)
5
140mm
19
504mm
Certified by
1
7
"
8
180mm
1
"
2
PIPE STRAP W/SCREWS
3
"
4
(LOCATION OPTIONAL)
5
3
16
84mm
BODY WIDTH
AT INLETS
All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW CASTLE, DE 19720
Management Systems Registered to ISO 9001
"
4'-6'
[1.37 meters]
TO FLOOR
1in
25mm
6in
146mm
P:
800-537-2107
F:
80 0 -97 7-2 747
W:
WWW.SPEAKMAN.COM
R:
01-JUNE 2018
