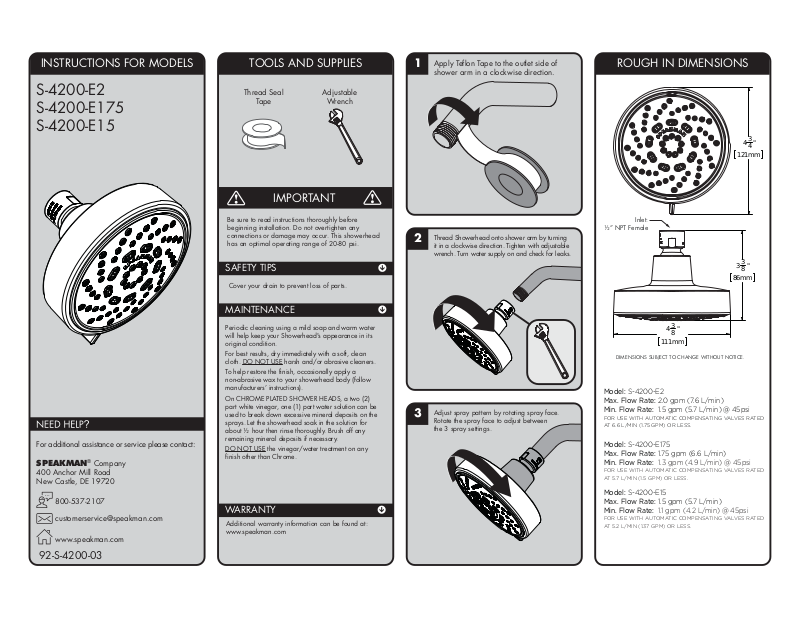

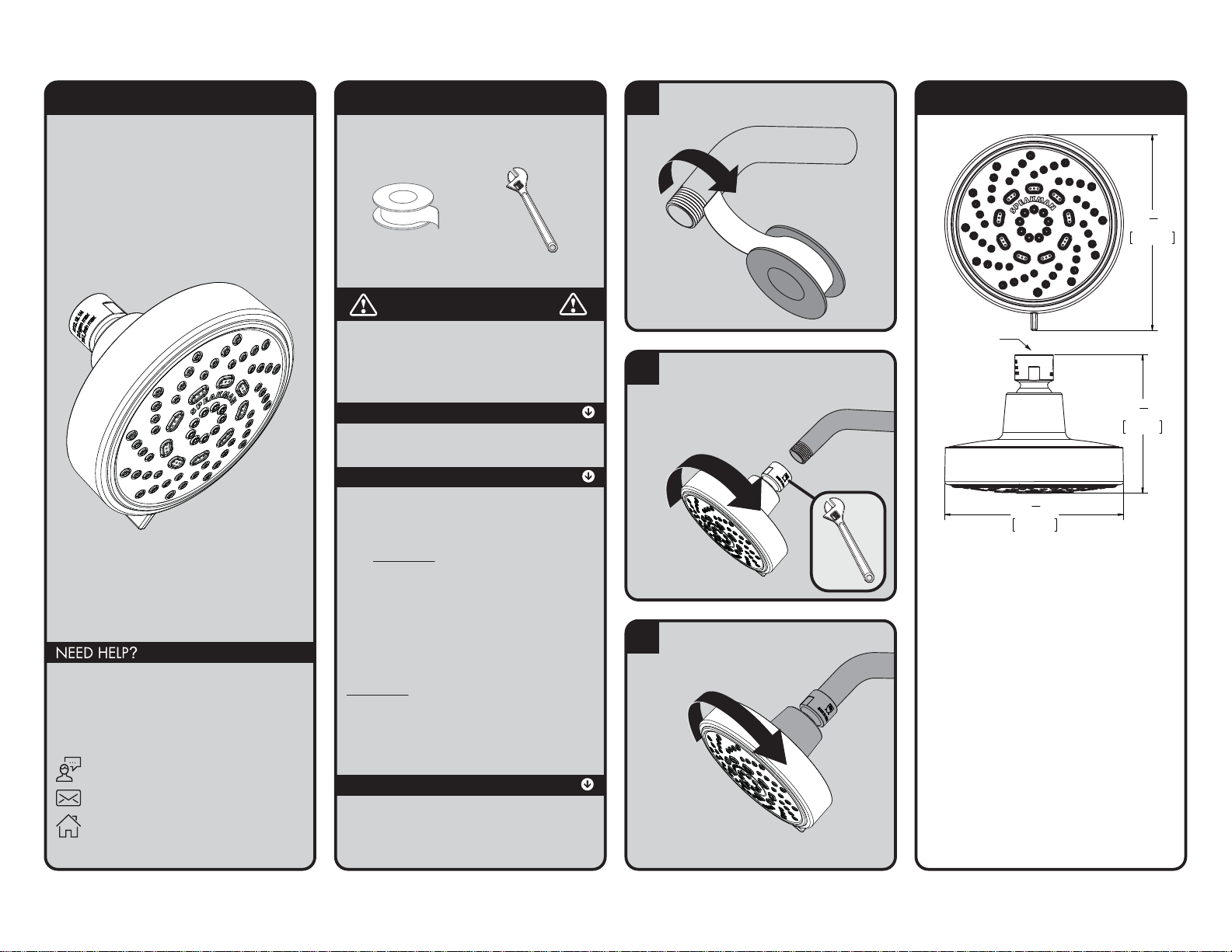

INSTRUCTIONS FOR MODELS
92-S-4200-03
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
S-4200-E2
S-4200-E175
S-4200-E15
TOOLS AND SUPPLIES
1
Apply Teflon Tape to the outlet side of
shower arm in a clockwise direction.
2
Thread Showerhead onto shower arm by turning
it in a clockwise direction. Tighten with adjustable
wrench. Turn water supply on and check for leaks.
3
Adjust spray pattern by rotating spray face.
Rotate the spray face to adjust between
the 3 spray settings.
ROUGH IN DIMENSIONS
Thread Seal
Tape
IMPORTANT
Adjustable
Wrench
3
4
4
121mm
"
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur. This showerhead
has an optimal operating range of 20-80 psi.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Periodic cleaning using a mild soap and warm water
will help keep your Showerhead's appearance in its
original condition.
For best results, dry immediately with a soft, clean
cloth. DO NOT USE harsh and/or abrasive cleaners.
To help restore the finish, occasionally apply a
non-abrasive wax to your showerhead body (follow
manufacturers’ instructions).
On CHROME PLATED SHOWER HEADS, a two (2)
part white vinegar, one (1) part water solution can be
used to break down excessive mineral deposits on the
sprays. Let the showerhead soak in the solution for
about ½ hour then rinse thoroughly. Brush off any
remaining mineral deposits if necessary.
DO NOT USE the vinegar/water treatment on any
finish other than Chrome.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
½” NPT Female
Inlet:
3
86mm
3
4
"
8
111mm
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
3
"
8
Model: S-4200-E2
Max. Flow Rate: 2.0 gpm (7.6 L/min)
Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 6.6 L/MIN (1.75 GPM) OR LESS.
Model: S-4200-E175
Max. Flow Rate: 1.75 gpm (6.6 L/min)
Min. Flow Rate: 1.3 gpm (4.9 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 5.7 L/MIN (1.5 GPM) OR LESS.
Model: S-4200-E15
Max. Flow Rate: 1.5 gpm (5.7 L/min)
Min. Flow Rate: 1.1 gpm (4.2 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 5.2 L/MIN (1.37 GPM) OR LESS.
