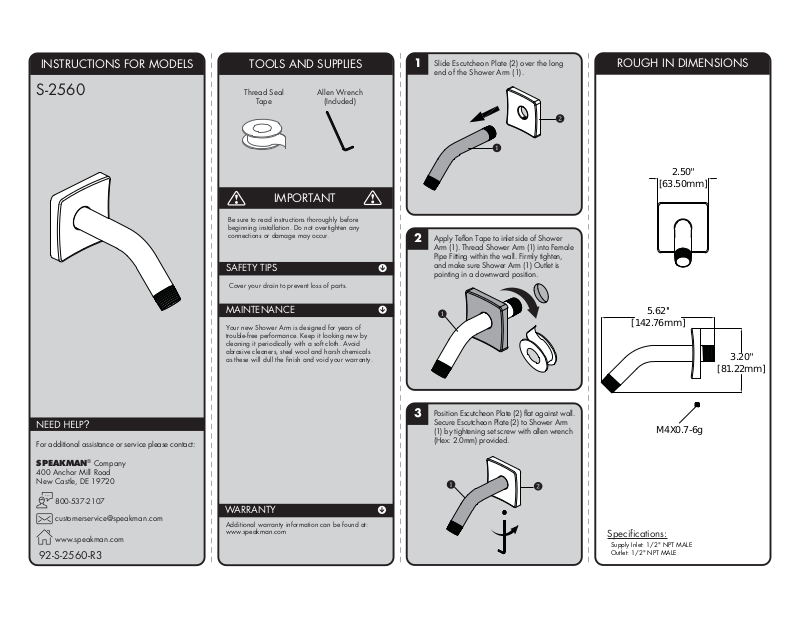

INSTRUCTIONS FOR MODELS
92-S-2560-R3
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com

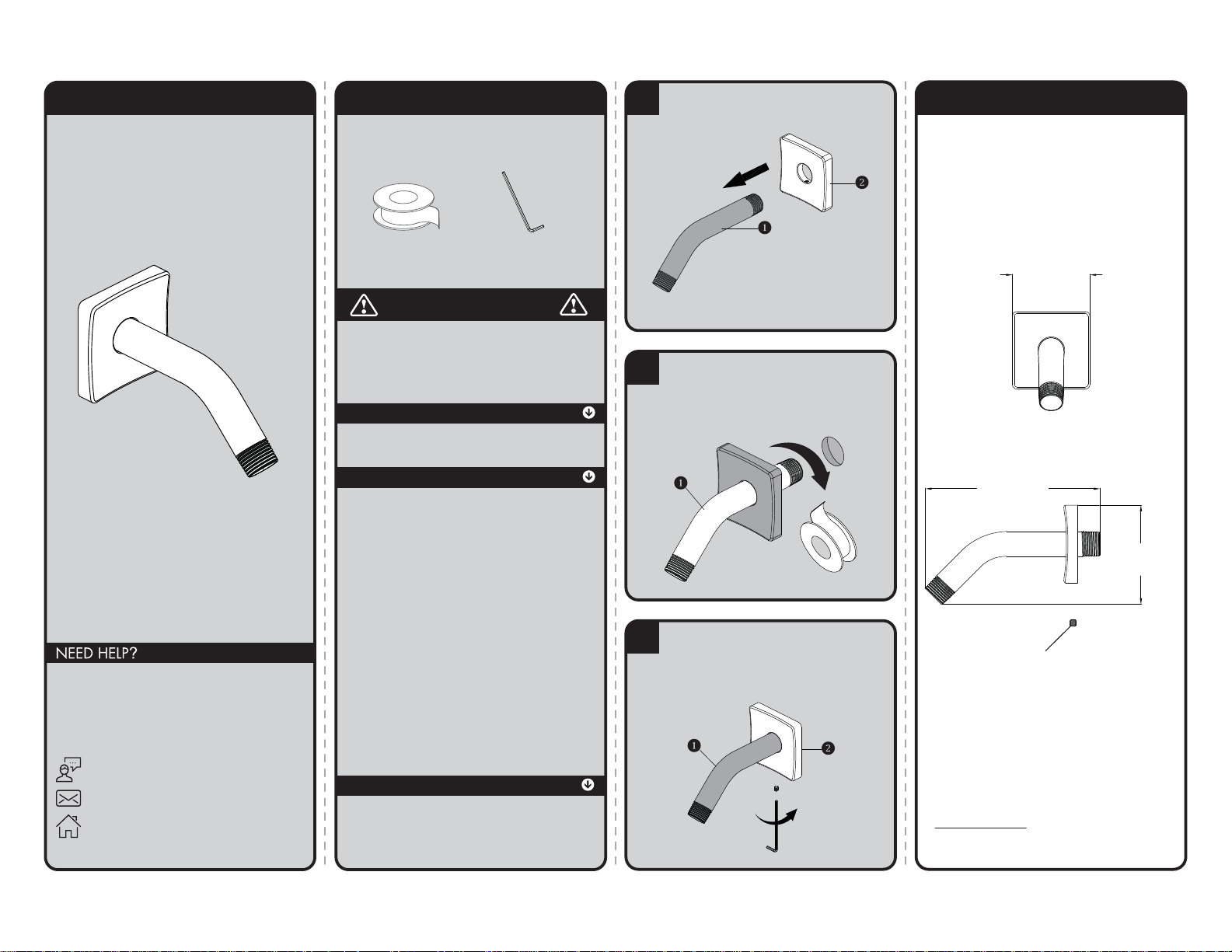

S-2560
TOOLS AND SUPPLIES
1
Slide Escutcheon Plate (2) over the long
end of the Shower Arm (1).
2
Apply Teflon Tape to inlet side of Shower
Arm (1). Thread Shower Arm (1) into Female
Pipe Fitting within the wall. Firmly tighten,
and make sure Shower Arm (1) Outlet is
pointing in a downward position.
3
Position Escutcheon Plate (2) flat against wall.
Secure Escutcheon Plate (2) to Shower Arm
(1) by tightening set screw with allen wrench
(Hex: 2.0mm) provided.
ROUGH IN DIMENSIONS
Specifications:
Supply Inlet: 1/2" NPT MALE
Outlet: 1/2" NPT MALE
2.50''
[63.50mm]
5.62''
[142.76mm]
3.20''
[81.22mm]
M4X0.7-6g
Thread Seal
Tape
IMPORTANT
Allen Wrench
(Included)
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Your new Shower Arm is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool and harsh chemicals
as these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
