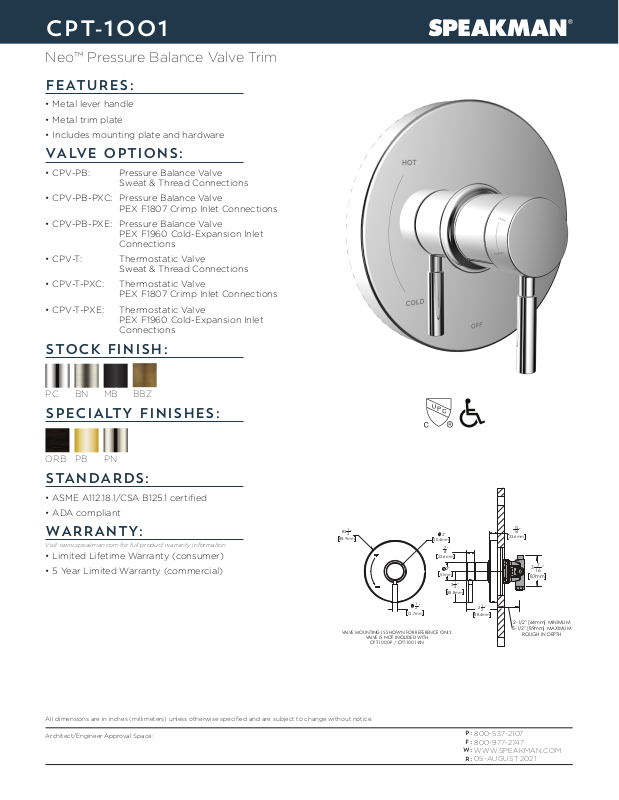

CP T-10 01
Neo™ Pressure Balance Valve Trim
FEATURES:
• Metal lever handle
• Metal trim plate
• Includes mounting plate and hardware
VALVE OPTIONS:
• CPV-PB: Pressure Balance Valve
Sweat & Thread Connections
• CPV-PB-PXC: Pressure Balance Valve
PEX F1807 Crimp Inlet Connections
• CPV-PB-PXE: Pressure Balance Valve
PEX F1960 Cold-Expansion Inlet
Connections
• CPV-T: Thermostatic Valve
Sweat & Thread Connections
• CPV-T-PXC: Thermostatic Valve
PEX F1807 Crimp Inlet Connections
• CPV-T-PXE: Thermostatic Valve
PEX F1960 Cold-Expansion Inlet
Connections
STOCK FINISH:
PC
BN
MB
BBZ
SPECIALTY FINISHES:
ORB PN
PB
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
• ADA compliant
WARRANTY:
Visit www.speakman.com for full product warranty information
• Limited Lifetime Warranty (consumer)
• 5 Year Limited Warranty (commercial)
1
"
R3
2
88.9mm
VALVE MOUNTING IS SHOWN FOR REFERENCE ONLY.
VALVE IS NOT INCLUDED WITH
CPT-1000-P / CPT-1001-KN
12.7mm
50.4mm
22.6mm
51mm
1
"
2
2"
7
"
8
2"
88.8mm
15
"
16
23.6mm
7
3
"
16
1
"
3
2
1
"
3
2
88.4mm
87mm
2-1/2" [64mm] MINIMUM
3-1/2" [89mm] MAXIMUM
ROUGH IN DEPTH
All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
P:
800-537-2107
F:
80 0 -97 7-2 747
W:
WWW.SPEAKMAN.COM
R:
05-AUGUST 2021
