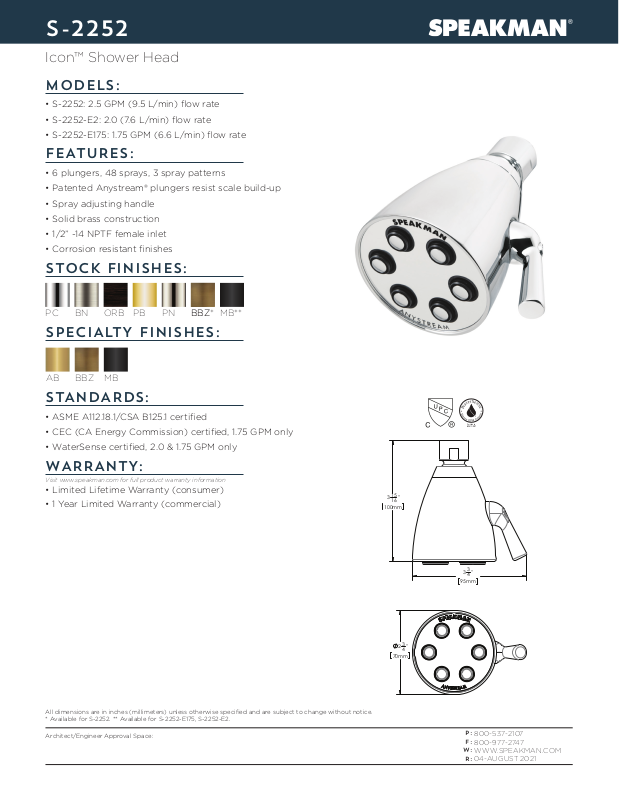

S-2 252
IAPMO R&T
Icon™ Shower Head
MODELS:
• S-2252: 2.5 GPM (9.5 L/min) flow rate
• S-2252-E2: 2.0 (7.6 L/min) flow rate
• S-2252-E175: 1.75 GPM (6.6 L/min) flow rate
FEATURES:
• 6 plungers, 48 sprays, 3 spray patterns
• Patented Anystream® plungers resist scale build-up
• Spray adjusting handle
• Solid brass construction
• 1/2” -14 NPTF female inlet
• Corrosion resistant finishes
STOCK FINISHES:
PC
BN
PBORB
PN
BBZ
MB**BBZ*
SPECIALTY FINISHES:
AB
MBBBZ
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
• CEC (CA Energy Commission) certified, 1.75 GPM only
• WaterSense certified, 2.0 & 1.75 GPM only
WARRANTY:
Visit www.speakman.com for full product warranty information
• Limited Lifetime Warranty (consumer)
• 1 Year Limited Warranty (commercial)
15
3
16
100mm
Certified by
"
3
"
3
4
95mm
All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
* Available for S-2252. ** Available for S-2252-E175, S-2252-E2.
Architect/Engineer Approval Space:
2
70mm
3
"
4
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
04-AUGUST 2021
