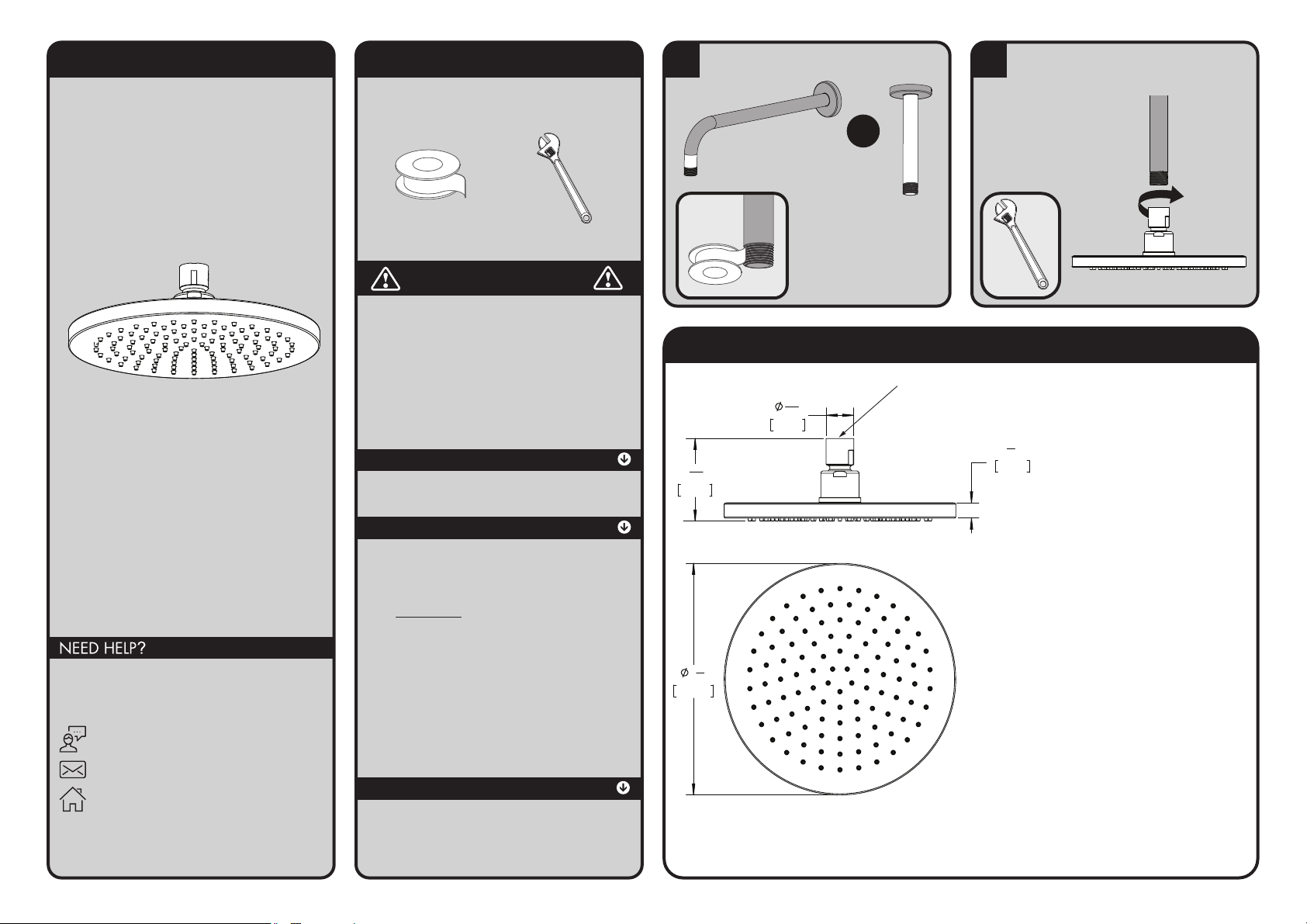

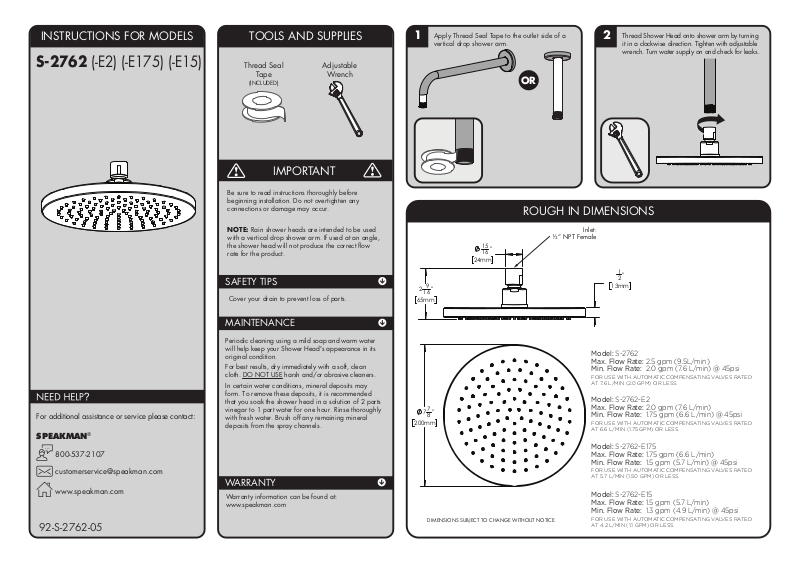

INSTRUCTIONS FOR MODELS
92-S-2762-05
For additional assistance or service please contact:
SPEAKMAN
®
800-537-2107
www.speakman.com
S-2762 (-E2) (-E175) (-E15)
TOOLS AND SUPPLIES
1
Apply Thread Seal Tape to the outlet side of a
vertical drop shower arm.
OR
2
Thread Shower Head onto shower arm by turning
it in a clockwise direction. Tighten with adjustable
wrench. Turn water supply on and check for leaks.
ROUGH IN DIMENSIONS
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
Model: S-2762-E175
Max. Flow Rate: 1.75 gpm (6.6 L/min)
Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 5.7 L/MIN (1.50 GPM) OR LESS.
Model: S-2762-E15
Max. Flow Rate: 1.5 gpm (5.7 L/min)
Min. Flow Rate: 1.3 gpm (4.9 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 4.2 L/MIN (1.1 GPM) OR LESS.
Model: S-2762
Max. Flow Rate: 2.5 gpm (9.5L/min)
Min. Flow Rate: 2.0 gpm (7.6 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 7.6 L/MIN (2.0 GPM) OR LESS.
Model: S-2762-E2
Max. Flow Rate: 2.0 gpm (7.6 L/min)
Min. Flow Rate: 1.75 gpm (6.6 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 6.6 L/MIN (1.75 GPM) OR LESS.
15
16
"
24mm
7
7
8
"
200mm
1
2
"
13mm
2
9
16
"
65mm
Inlet:
½” NPT Female
Thread Seal
Adjustable
Tape
(INCLUDED)
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
NOTE: Rain shower heads are intended to be used
with a vertical drop shower arm. If used at an angle,
the shower head will not produce the correct flow
rate for the product.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Periodic cleaning using a mild soap and warm water
will help keep your Shower Head's appearance in its
original condition.
For best results, dry immediately with a soft, clean
cloth. DO NOT USE harsh and/or abrasive cleaners.
In certain water conditions, mineral deposits may
form. To remove these deposits, it is recommended
that you soak the shower head in a solution of 2 parts
vinegar to 1 part water for one hour. Rinse thoroughly
with fresh water. Brush off any remaining mineral
deposits from the spray channels.
WARRANTY
Warranty information can be found at:
www.speakman.com
Wrench
