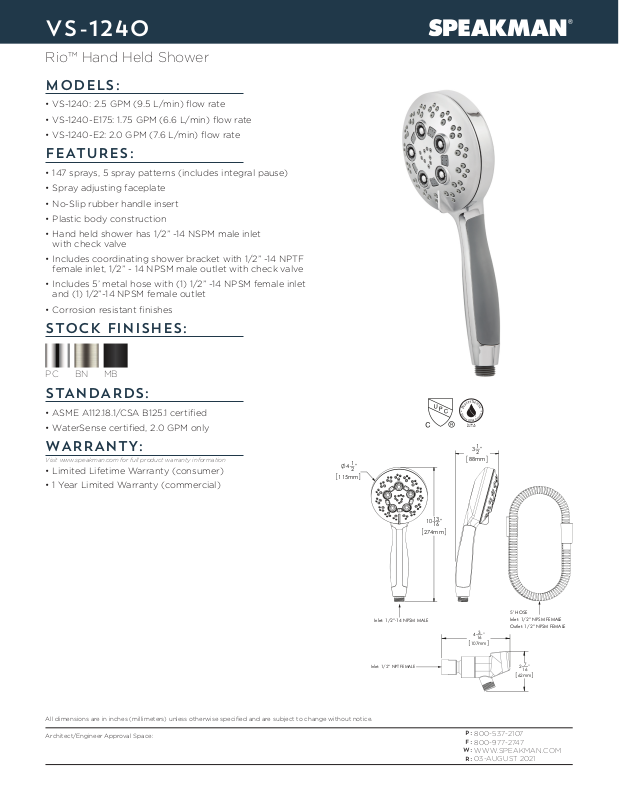

VS-1240
IAPMO R&T
Rio™ Hand Held Shower
MODELS:
• VS-1240: 2.5 GPM (9.5 L/min) flow rate
• VS-1240-E175: 1.75 GPM (6.6 L/min) flow rate
• VS-1240-E2: 2.0 GPM (7.6 L/min) flow rate
FEATURES:
• 147 sprays, 5 spray patterns (includes integral pause)
• Spray adjusting faceplate
• No-Slip rubber handle insert
• Plastic body construction
• Hand held shower has 1/2” -14 NSPM male inlet
with check valve
• Includes coordinating shower bracket with 1/2” -14 NPTF
female inlet, 1/2” - 14 NPSM male outlet with check valve
• Includes 5’ metal hose with (1) 1/2” -14 NPSM female inlet
and (1) 1/2”-14 NPSM female outlet
• Corrosion resistant finishes
STOCK FINISHES:
BN
PC
MB
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
• WaterSense certified, 2.0 GPM only
WARRANTY:
Visit www.speakman.com for full product warranty information
• Limited Lifetime Warranty (consumer)
• 1 Year Limited Warranty (commercial)
4
115mm
1
"
2
Inlet: 1/2”-14 NPSM MALE
13
10
16
274mm
Certified by
1
3
"
2
88mm
"
5’ HOSE
Inlet: 1/2” NPSM FEMALE
3
4
16
107mm
Outlet: 1/2” NPSM FEMALE
"
All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
Inlet: 1/2” NPT FEMALE
7
2
"
16
62mm
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
03-AUGUST 2021
