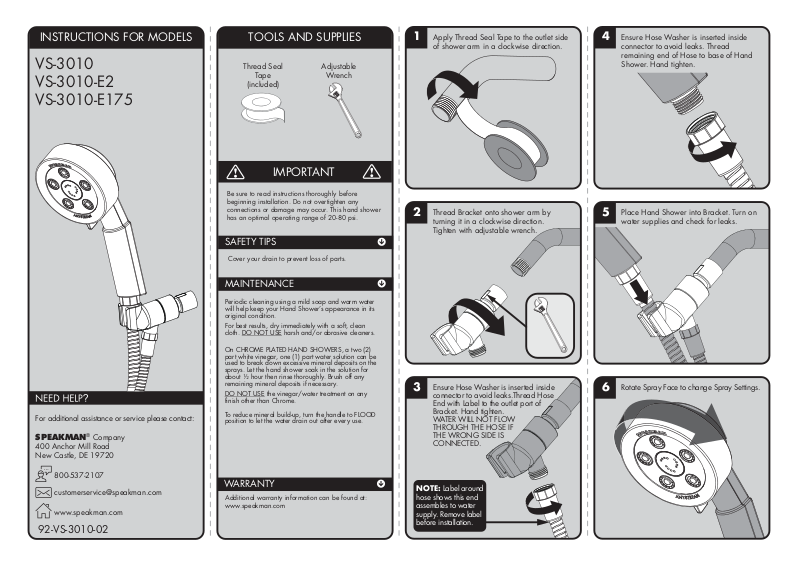

INSTRUCTIONS FOR MODELS
92-VS-3010-02
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
VS-3010
VS-3010-E2
VS-3010-E175

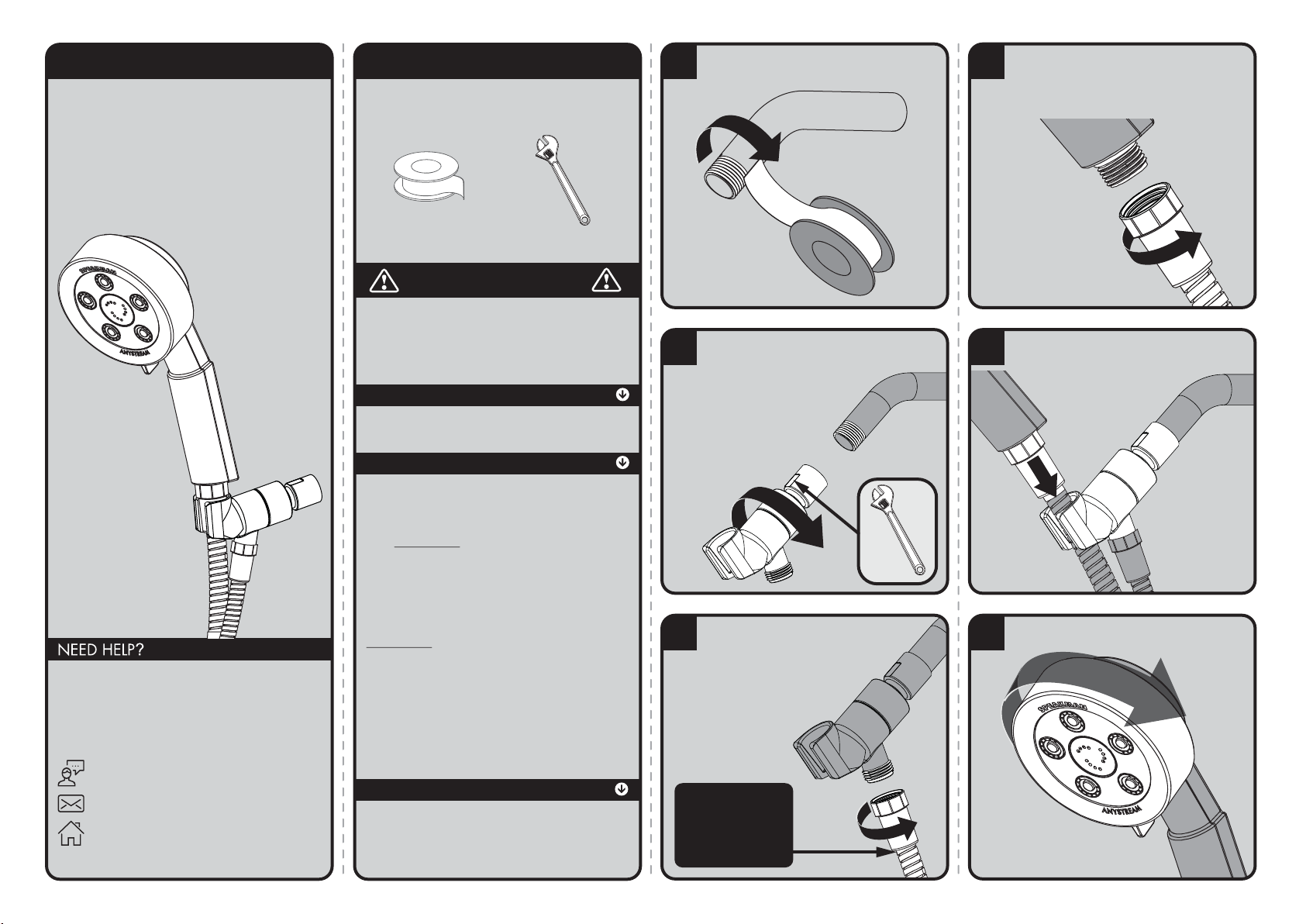

TOOLS AND SUPPLIES
1
Apply Thread Seal Tape to the outlet side
of shower arm in a clockwise direction.
2
Thread Bracket onto shower arm by
turning it in a clockwise direction.
Tighten with adjustable wrench.
3
Ensure Hose Washer is inserted inside
connector to avoid leaks.Thread Hose
End with Label to the outlet port of
Bracket. Hand tighten.
WATER WILL NOT FLOW
THROUGH THE HOSE IF
THE WRONG SIDE IS
CONNECTED.
NOTE: Label around
hose shows this end
assembles to water
supply. Remove label
before installation.
4
Ensure Hose Washer is inserted inside
connector to avoid leaks. Thread
remaining end of Hose to base of Hand
Shower. Hand tighten.
5
Place Hand Shower into Bracket. Turn on
water supplies and check for leaks.
6
Rotate Spray Face to change Spray Settings.
Thread Seal
Tape
(included)
Adjustable
Wrench
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur. This hand shower
has an optimal operating range of 20-80 psi.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Periodic cleaning using a mild soap and warm water
will help keep your Hand Shower’s appearance in its
original condition.
For best results, dry immediately with a soft, clean
cloth. DO NOT USE harsh and/or abrasive cleaners.
On CHROME PLATED HAND SHOWERS, a two (2)
part white vinegar, one (1) part water solution can be
used to break down excessive mineral deposits on the
sprays. Let the hand shower soak in the solution for
about ½ hour then rinse thoroughly. Brush off any
remaining mineral deposits if necessary.
DO NOT USE the vinegar/water treatment on any
finish other than Chrome.
To reduce mineral build-up, turn the handle to FLOOD
position to let the water drain out after every use.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Page 2

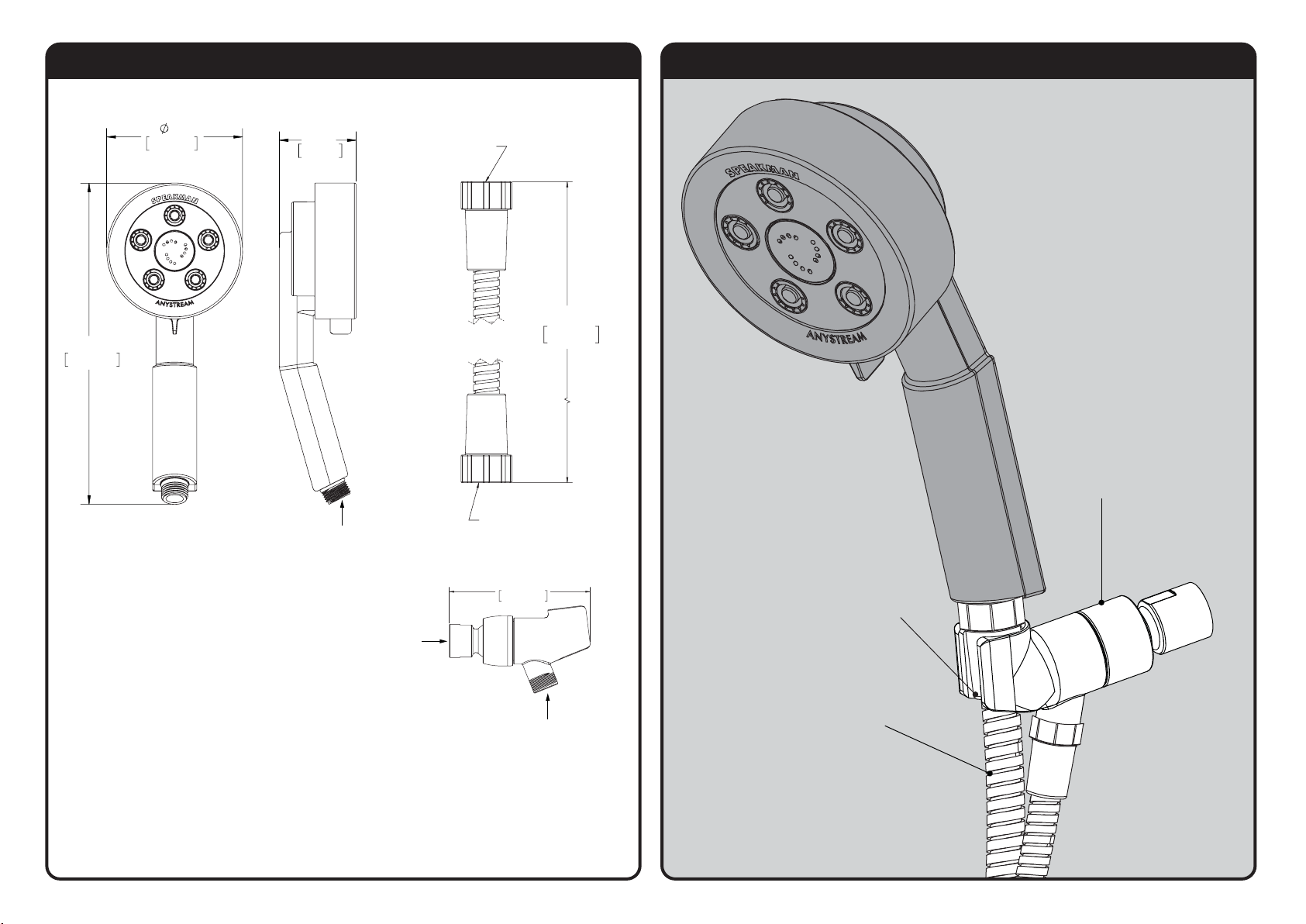

ROUGH IN DIMENSIONS
Model: VS-3010-E175
Max. Flow Rate: 1.75 gpm (6.6 L/min)
Min. Flow Rate: 1.3 gpm (4.9 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 5.7 L/MIN (1.5 GPM) OR LESS.
Model: VS-3010
Max. Flow Rate: 2.5 gpm (9.5L/min)
Min. Flow Rate: 2.0 gpm (7.6 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 7.6 L/MIN (2.0 GPM) OR LESS.
Model: VS-3010-E2
Max. Flow Rate: 2.0 gpm (7.6 L/min)
Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 6.6 L/MIN (1.75 GPM) OR LESS.
4”
9-1/2”
240mm
102mm
1/2-14 NPSM
THREADED
INLET
2-1/4”
58mm
4"
102mm
1/2-14 NPT
THREADED
INLET
1/2-14 NPSM
THREADED
OUTLET
61"
165mm
1/2"-14 NPSM FEMALE
THREADED OUTLET
1/2"-14 NPSM FEMALE
THREADED INLET
MARKED
"ATTACH THIS CHECK
VALVE END TO THE
WATER SUPPLY"
REPAIR PARTS
VS-130-XX
BRACKET ASSEMBLY
* XX = FINISH
RPG45-41791
HOSE WASHER GROUP
VS-158-XX
HOSE ASSEMBLY
