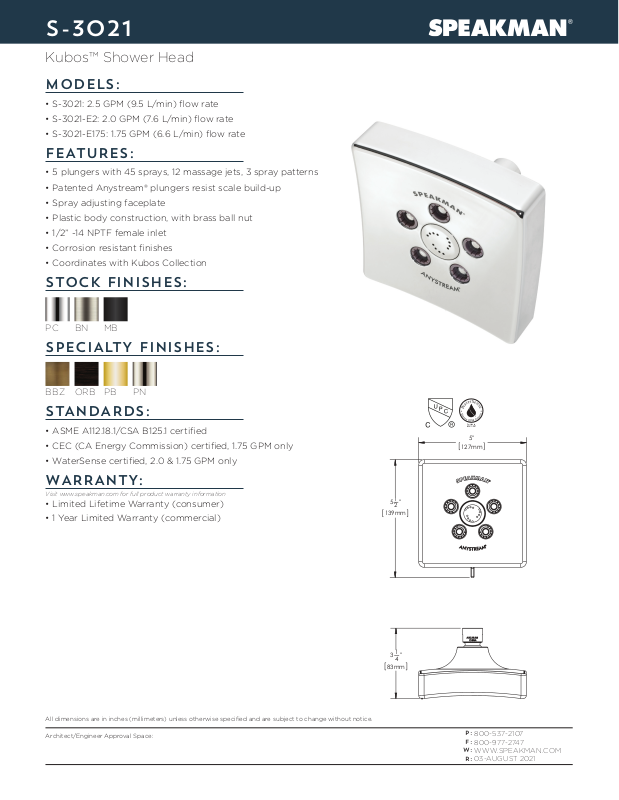

Page 1
S-3021
IAPMO R&T
Kubos™ Shower Head
MODELS:
• S-3021: 2.5 GPM (9.5 L/min) flow rate
• S-3021-E2: 2.0 GPM (7.6 L/min) flow rate
• S-3021-E175: 1.75 GPM (6.6 L/min) flow rate
FEATURES:
• 5 plungers with 45 sprays, 12 massage jets, 3 spray patterns
• Patented Anystream® plungers resist scale build-up
• Spray adjusting faceplate
• Plastic body construction, with brass ball nut
• 1/2” -14 NPTF female inlet
• Corrosion resistant finishes
• Coordinates with Kubos Collection
STOCK FINISHES:
PC
BN MB
SPECIALTY FINISHES:
BBZ
PNPBORB
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
• CEC (CA Energy Commission) certified, 1.75 GPM only
• WaterSense certified, 2.0 & 1.75 GPM only
WARRANTY:
Visit www.speakman.com for full product warranty information
• Limited Lifetime Warranty (consumer)
• 1 Year Limited Warranty (commercial)
1
5
2
139mm
Certified by
5"
127mm
"
All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
1
3
4
83mm
"
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
03-AUGUST 2021
