SB-3242
LEAD FREE

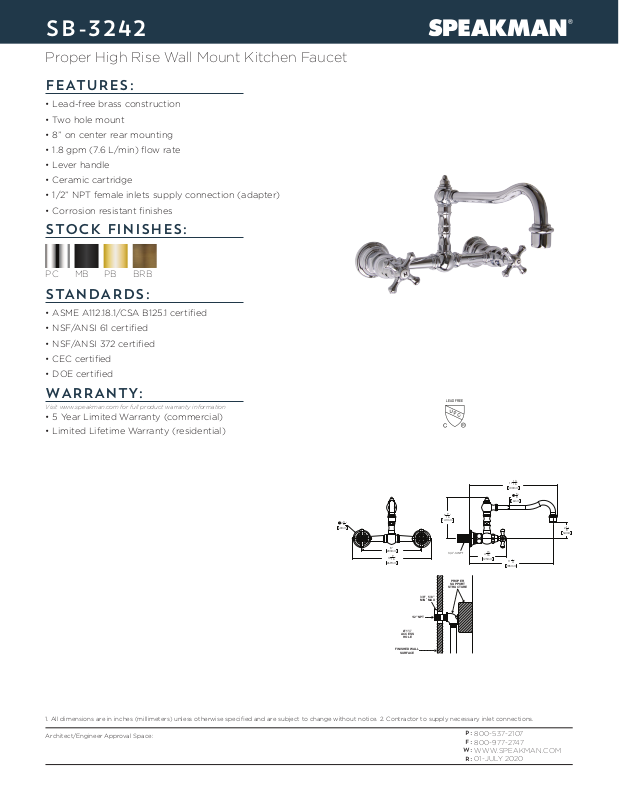

Proper High Rise Wall Mount Kitchen Faucet
FEATURES:
• Lead-free brass construction
• Two hole mount
• 8” on center rear mounting
• 1.8 gpm (7.6 L/min) flow rate
• Lever handle
• Ceramic cartridge
• 1/2” NPT female inlets supply connection (adapter)
• Corrosion resistant finishes
STOCK FINISHES:
PC PBMB
BRB
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
• NSF/ANSI 61 certified
• NSF/ANSI 372 certified
• CEC certified
• DOE certified
WARRANTY:
Visit www.speakman.com for full product warranty information
• 5 Year Limited Warranty (commercial)
• Limited Lifetime Warranty (residential)
60mm
13
11
"
16
300mm
5
"
8
16mm
9
5
"
16
3
2
"
8
8"
203mm
9
10
"
16
269mm
141mm
3/4"-14 NPT
PROPER
SUPPORT
STRUCTURE
3/8”
5/8”
-
MIN
MAX
4
125mm
15
"
16
1
11
"
4
285mm
54mm
1
2
"
8
1/2” NPT
Ø 1½”
ACCESS
HOLE
FINISHED WALL
SURFACE
1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice. 2. Contractor to supply necessary inlet connections.
P:
Architect/Engineer Approval Space:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-JULY 2020
