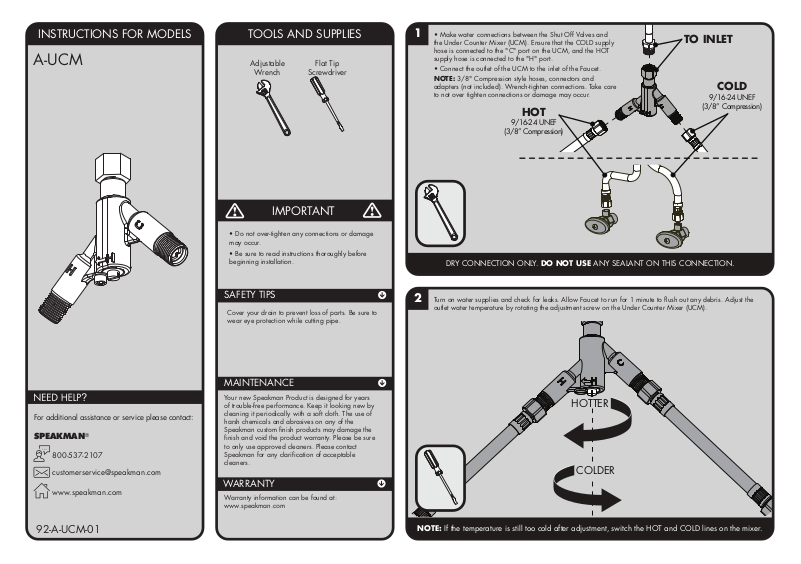

INSTRUCTIONS FOR MODELS
TOOLS AND SUPPLIES
Flat Tip
Screwdriver
Adjustable
Wrench
1

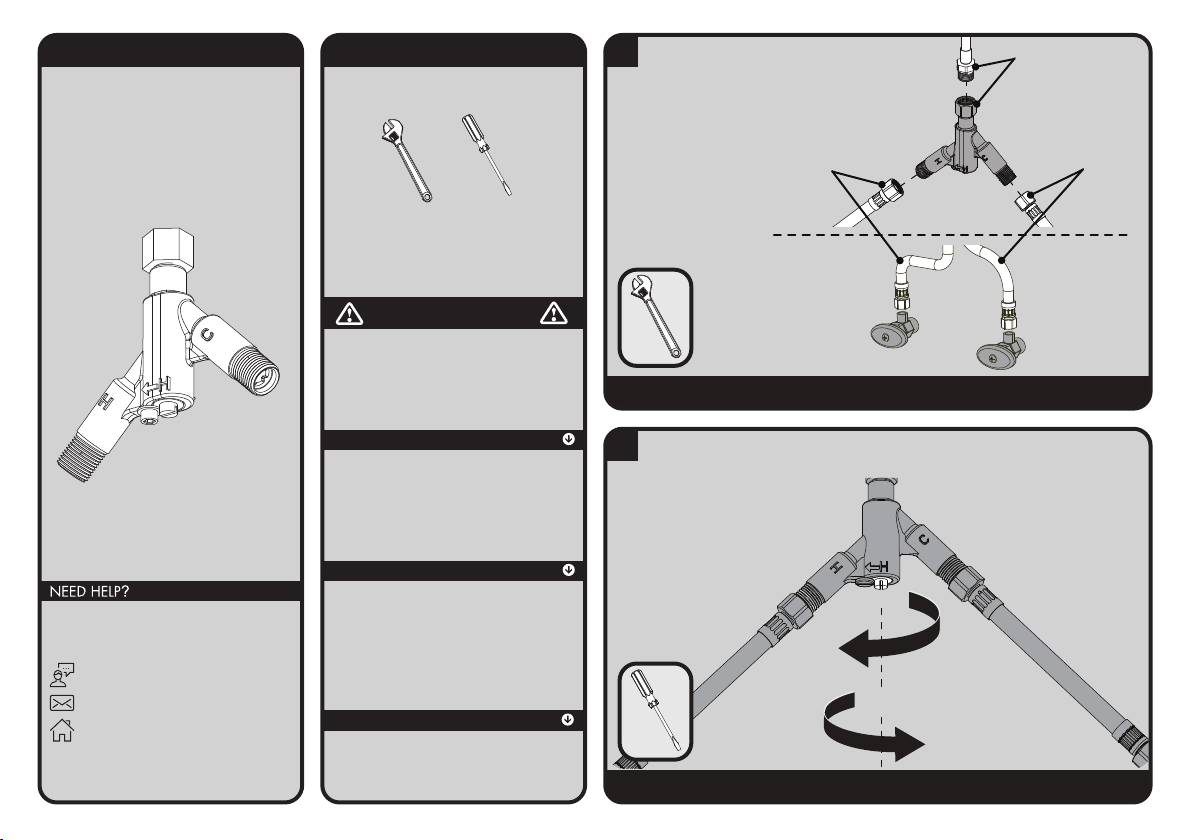

• Make water connections between the Shut Off Valves and
the Under Counter Mixer (UCM). Ensure that the COLD supply
hose is connected to the "C" port on the UCM, and the HOT
supply hose is connected to the "H" port.
• Connect the outlet of the UCM to the inlet of the Faucet.
NOTE: 3/8" Compression style hoses, connectors and
adapters (not included). Wrench-tighten connections. Take care
to not over tighten connections or damage may occur.
HOT
9/16-24 UNEF
(3/8” Compression)
COLD
TO INLET
9/16-24 UNEF
(3/8” Compression)
DRY CONNECTION ONLY. DO NOT USE ANY SEALANT ON THIS CONNECTION.
2
Turn on water supplies and check for leaks. Allow Faucet to run for 1 minute to flush out any debris. Adjust the
outlet water temperature by rotating the adjustment screw on the Under Counter Mixer (UCM).
COLDER
HOTTER
NOTE: If the temperature is still too cold after adjustment, switch the HOT and COLD lines on the mixer.
A-UCM
IMPORTANT
• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
SAFETY TIPS
Cover your drain to prevent loss of parts. Be sure to
For additional assistance or service please contact:
SPEAKMAN
800-537-2107
www.speakman.com
®
92-A-UCM-01
wear eye protection while cutting pipe.
MAINTENANCE
Your new Speakman Product is designed for years
of trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of
harsh chemicals and abrasives on any of the
Speakman custom finish products may damage the
finish and void the product warranty. Please be sure
to only use approved cleaners. Please contact
Speakman for any clarification of acceptable
cleaners.
WARRANTY
Warranty information can be found at:
www.speakman.com
