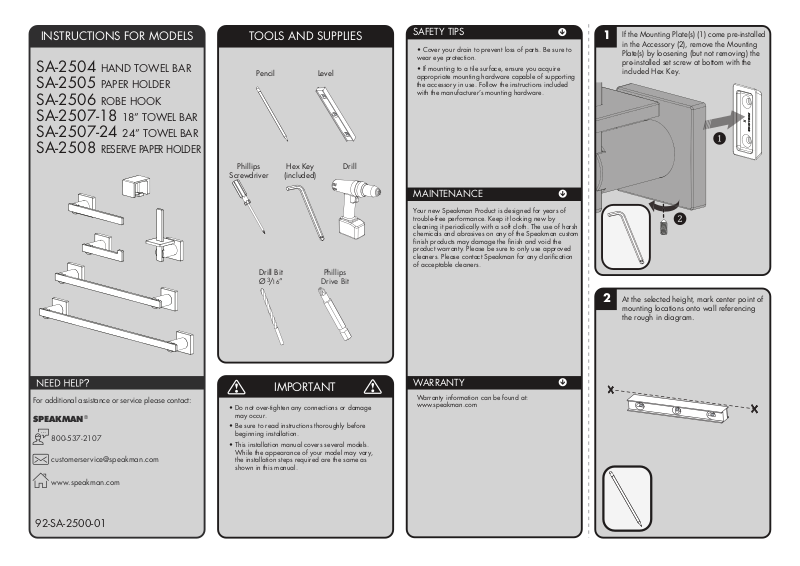

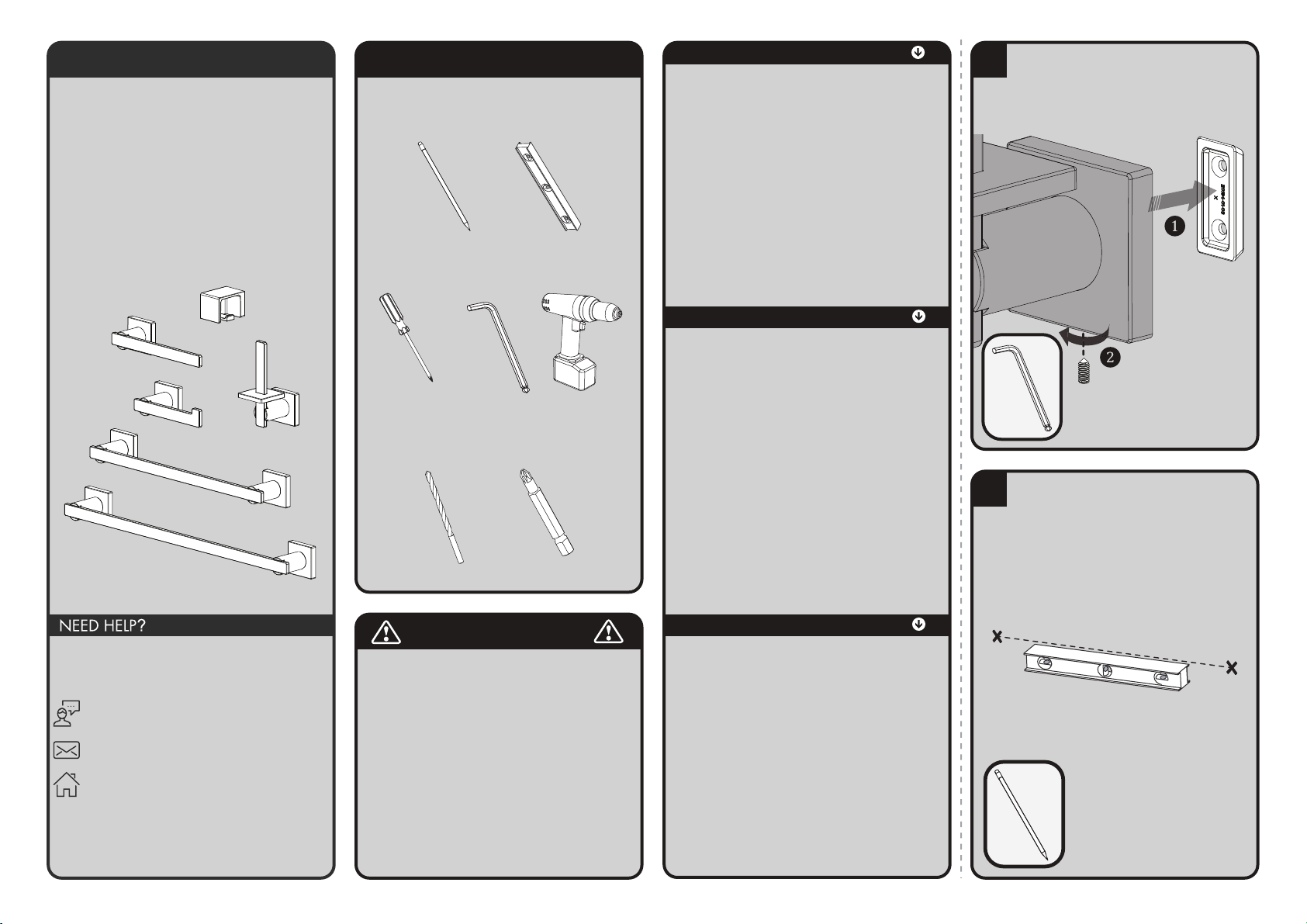

Page 1
INSTRUCTIONS FOR MODELS
92-SA-2500-01
For additional assistance or service please contact:
SPEAKMAN
®
800-537-2107
www.speakman.com
SA-2504 HAND TOWEL BAR
SA-2505 PAPER HOLDER
SA-2506 ROBE HOOK
SA-2507-18 18” TOWEL BAR
SA-2507-24 24” TOWEL BAR
SA-2508
RESERVE PAPER HOLDER
TOOLS AND SUPPLIES
Phillips
Screwdriver
Pencil
Drill
Drill Bit
Ø3/16”
Level
Hex Key
(included)
Phillips
Drive Bit
Warranty information can be found at:
www.speakman.com
WARRANTY
MAINTENANCE
• Cover your drain to prevent loss of parts. Be sure to
wear eye protection.
• If mounting to a tile surface, ensure you acquire
appropriate mounting hardware capable of supporting
the accessory in use. Follow the instructions included
with the manufacturer’s mounting hardware.
SAFETY TIPS
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Do not over-tighten any connections or damage
may occur.
• This installation manual covers several models.
While the appearance of your model may vary,
the installation steps required are the same as
shown in this manual.
1
If the Mounting Plate(s) (1) come pre-installed
in the Accessory (2), remove the Mounting
Plate(s) by loosening (but not removing) the
pre-installed set screw at bottom with the
included Hex Key.
2
At the selected height, mark center point of
mounting locations onto wall referencing
the rough in diagram.
Page 2

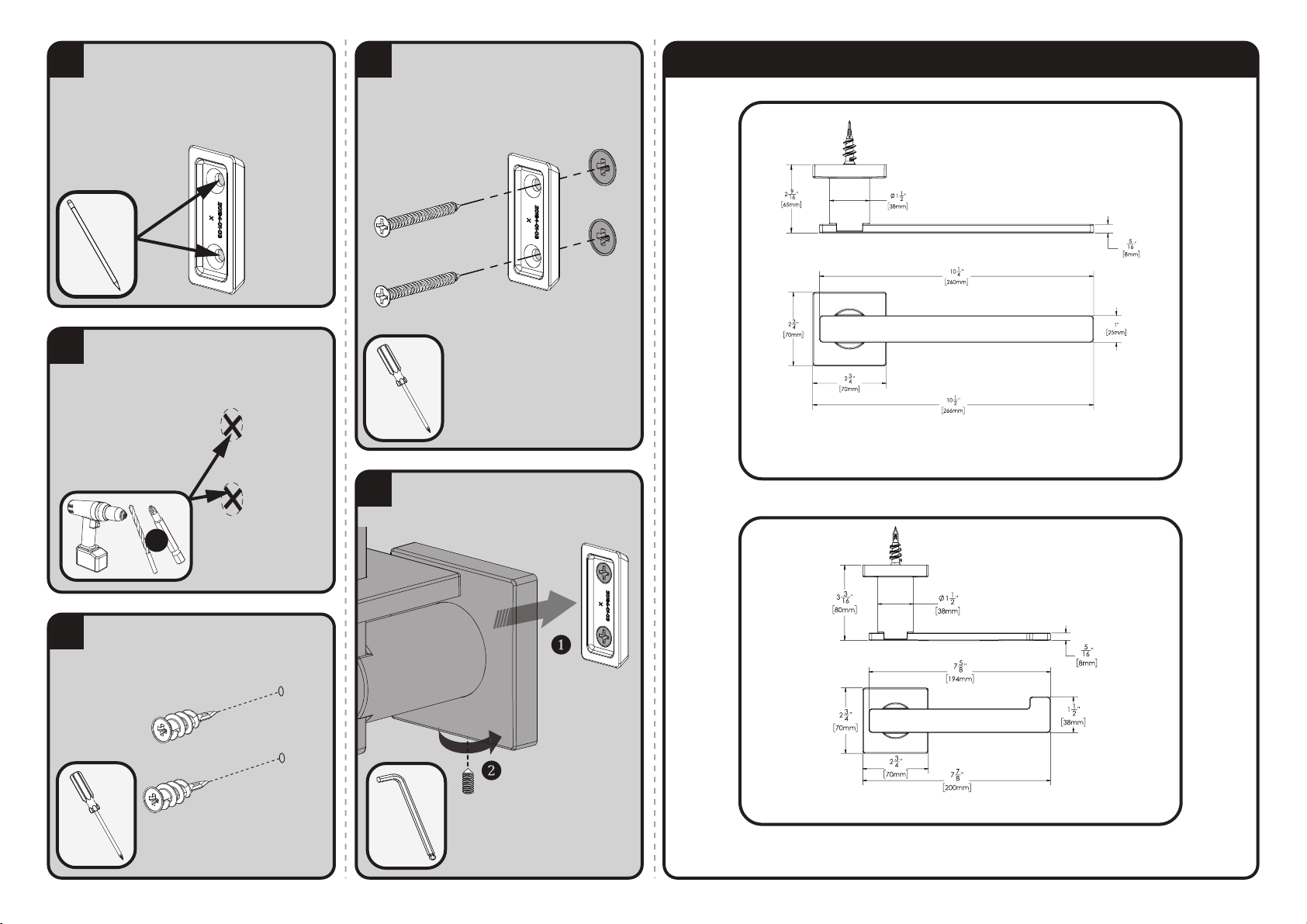

3
Align Mounting Plate over center point
marked in previous step. Mounting Plate
should be vertical as shown below. Mark
Mounting Screw locations onto the wall
surface. Remove items after marking
mounting locations.
4
If mounting directly to wood stud, Plastic
Anchors are not required. If mounting
to drywall, drill guide holes at marked
locations using a Drill equipped with
a Ø 3/16" bit.
Ø3/16”
OR
5
Insert Plastic Anchors into drilled holes and
screw in the anchor using a Philips Head
screwdriver, or a Drill equipped with
a Phillips Driver Bit until the head is flush
with the wall surface.
6
Secure Mounting Plate with the Mounting
Screws provided. Verify that the Mounting
Plate is aligned vertically.
7
Place Accessory (1) over Mounting Bracket
and secure the pre-installed set screw (2)
with the included Hex Key.
ROUGH-IN DIAGRAMS
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
SA-2504
SA-2505
Page 3

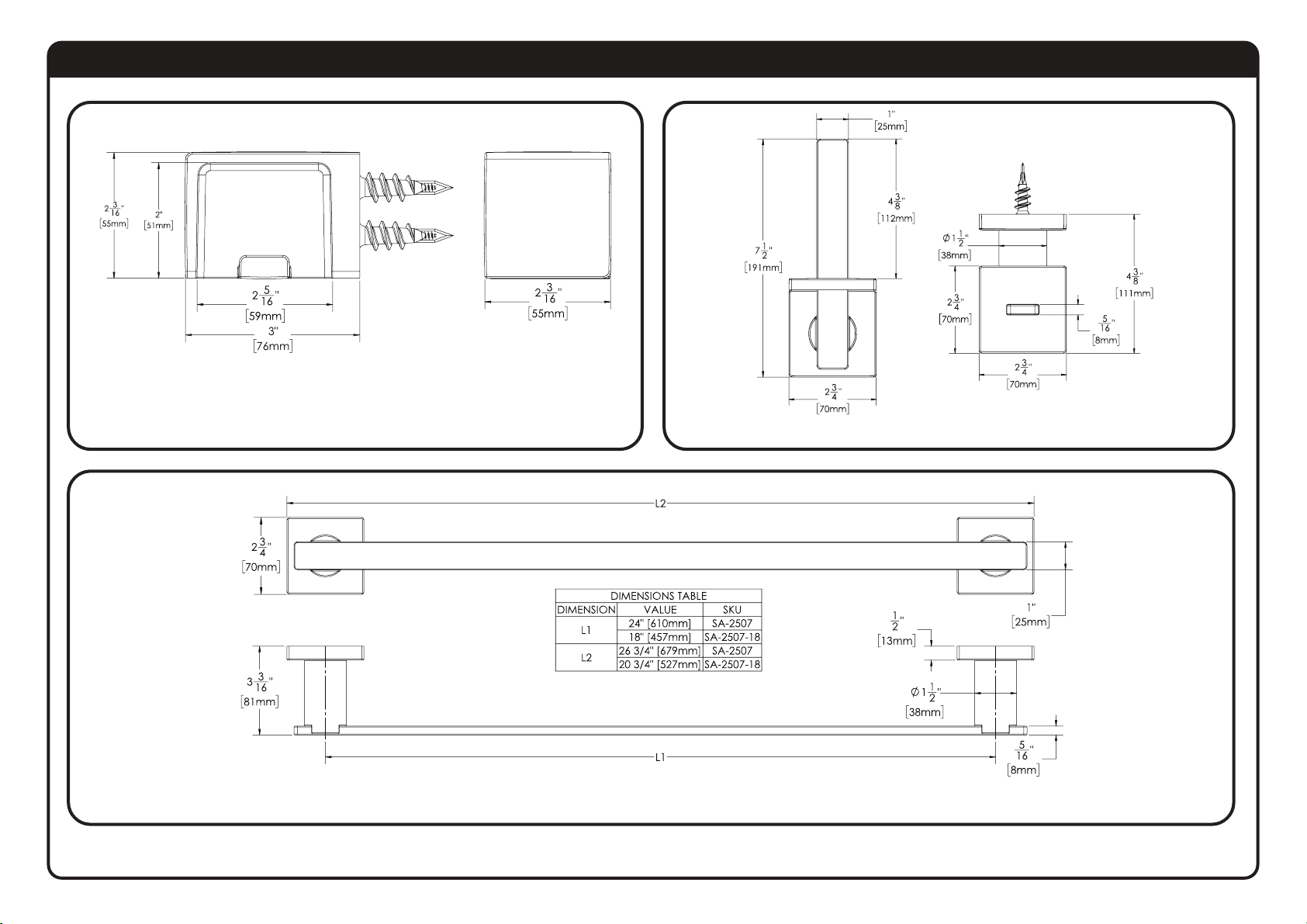

ROUGH-IN DIAGRAMS
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
SA-2506
SA-2508
SA-2507-18
SA-2507-24
