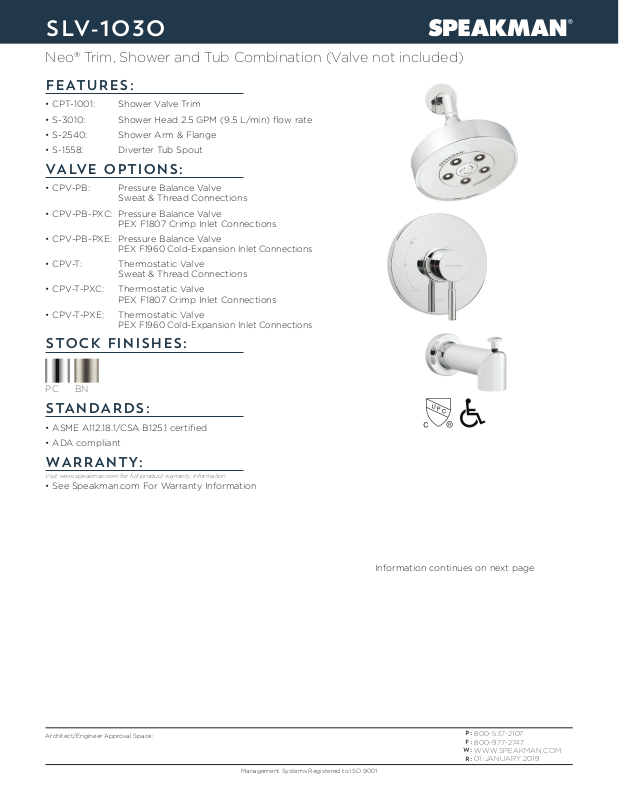

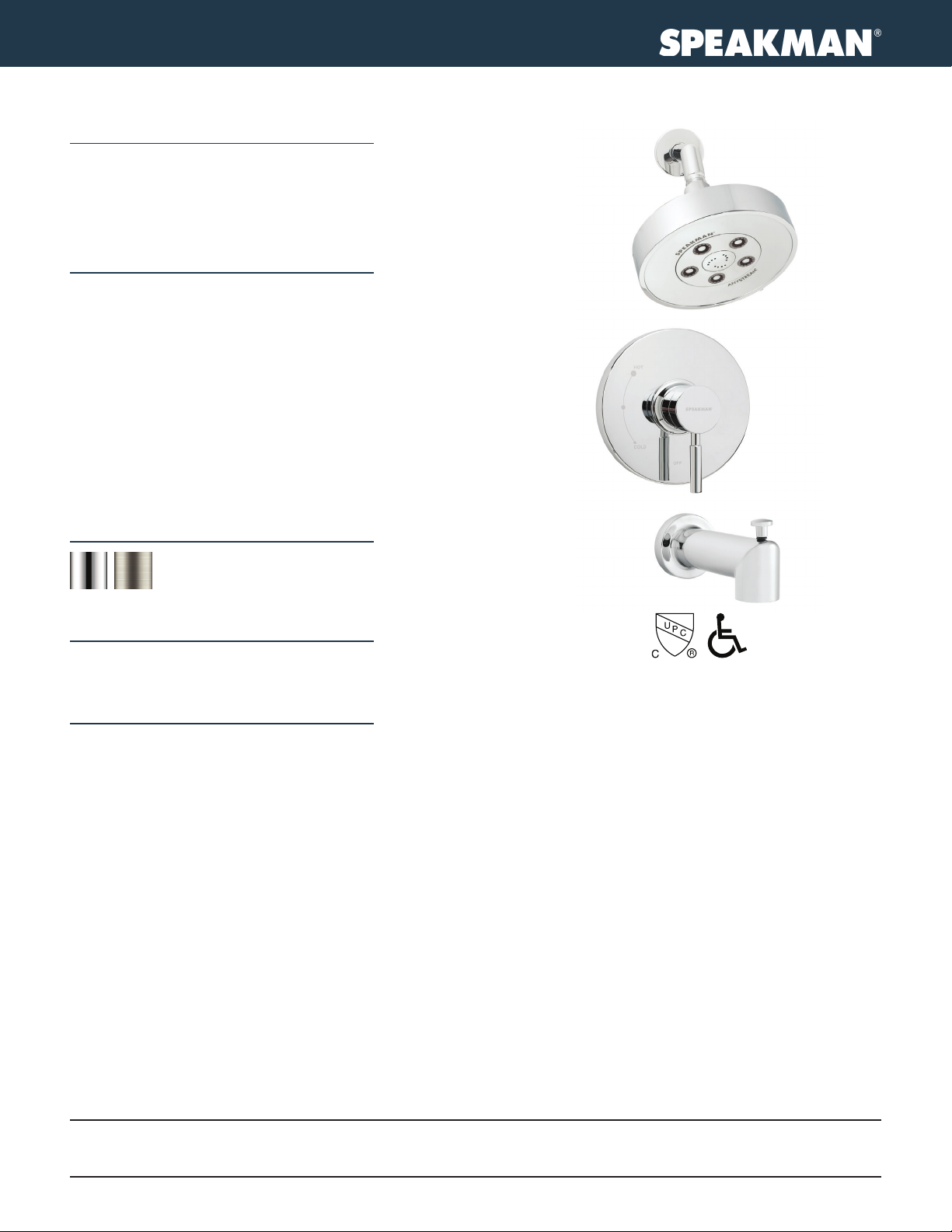

Page 1
SLV-1030
Neo® Trim, Shower and Tub Combination (Valve not included)
FEATURES:
• CPT-1001: Shower Valve Trim
• S-3010: Shower Head 2.5 GPM (9.5 L/min) flow rate
• S-2540: Shower Arm & Flange
• S-1558: Diverter Tub Spout
VALVE OPTIONS:
• CPV-PB: Pressure Balance Valve
Sweat & Thread Connections
• CPV-PB-PXC: Pressure Balance Valve
PEX F1807 Crimp Inlet Connections
• CPV-PB-PXE: Pressure Balance Valve
PEX F1960 Cold-Expansion Inlet Connections
• CPV-T: Thermostatic Valve
Sweat & Thread Connections
• CPV-T-PXC: Thermostatic Valve
PEX F1807 Crimp Inlet Connections
• CPV-T-PXE: Thermostatic Valve
PEX F1960 Cold-Expansion Inlet Connections
STOCK FINISHES:
PC
BN
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
• ADA compliant
WARRANTY:
Visit www.speakman.com for full product warranty information
• See Speakman.com For Warranty Information
Information continues on next page
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-JANUARY 2019

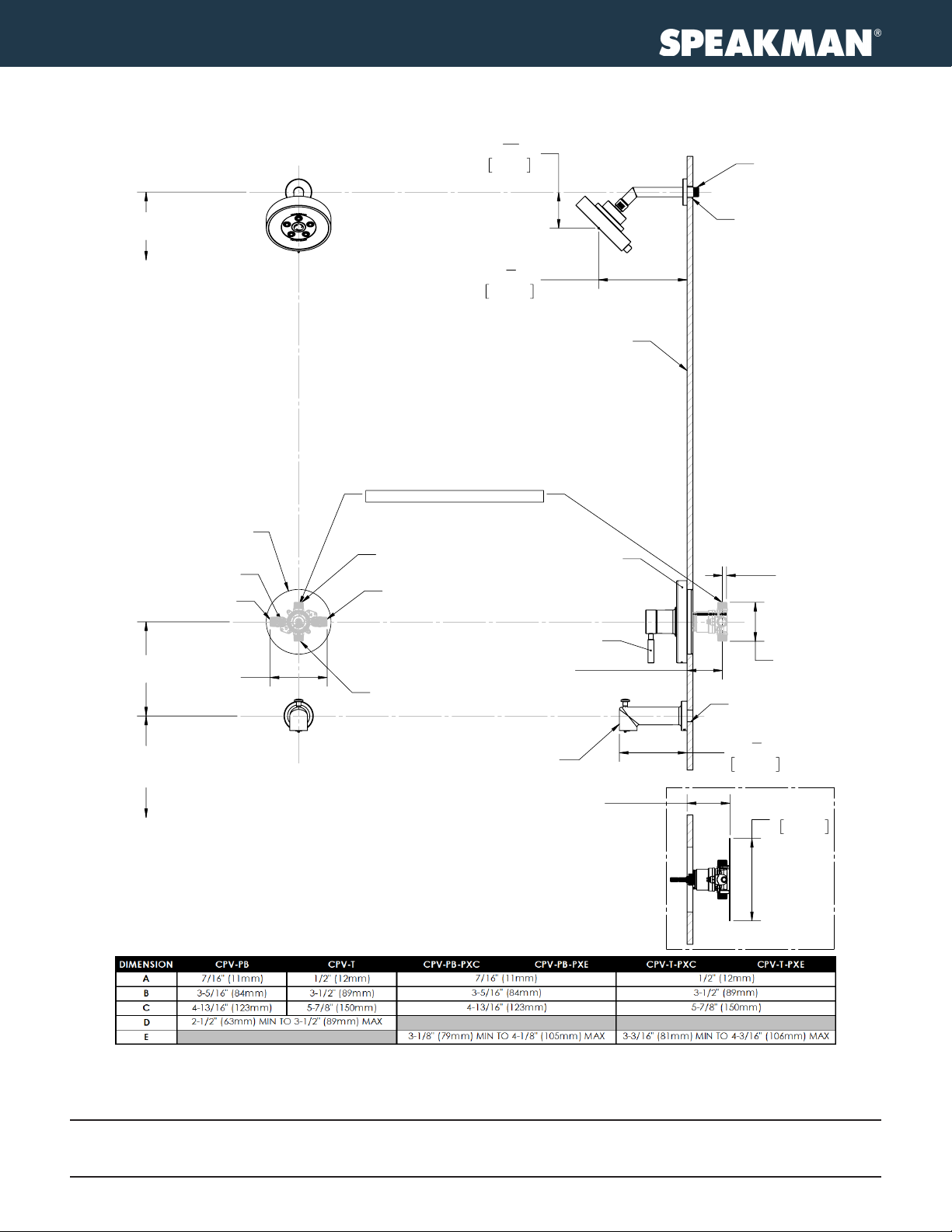

Page 2
SLV-1030
Neo® Trim, Shower and Tub Combination (Valve not included)
1
"
3
16
78mm
1/2" NPT
MALE
6'6" [2m]
TO FLOOR
5-1/2" [140mm] DIA.
ROUGH-IN HOLE FOR
VALVE ACCESS
INTEGRAL SPRING
CHECK STOPS
HOT WATER INLET
1'9" [533mm]
SEE NOTE #3
C
1
"
7
2
191mm
SHOWER VALVE NOT INCLUDED
SHOWER OUTLET,
TO SHOWER ARM
COLD WATER INLET
LEVER HANDLE
TUB OUTLET,
TO DIVERTER TUB SPOUT
CENTERLINE OF
FINISHED WALL
WALL PLATE
7" [178mm] DIA.
METAL
D
TO THE
INLET(S)
1" [25mm] DIA.
ROUGH-IN HOLE
A
B
1" [25mm] DIA.
ROUGH-IN HOLE
4" [102mm]
TO TOP
OF TUB
NOTES:
ALL DIMENSIONS ARE IN INCHES [MILLIMETERS] UNLESS OTHERWISE SPECIFIED AND ARE
1.
SUBJECT TO CHANGE WITHOUT NOTICE.
ALL INLETS AND OUTLETS ARE 1/2" FEMALE COPPER SWEAT AND 1/2" MALE NPT UNLESS
2.
OTHERWISE SPECIFIED.
FOR ADA MOUNTING LOCATIONS CONSULT ADAAG, ANSI A117.1, OR STATE
3.
REGULATIONS.
Architect/Engineer Approval Space:
DIVERTER TUB SPOUT
1/2" COPPER SLIPFIT
CONNECTION
Management Systems Registered to ISO 9001
E
TO THE
BRACE(S)
3
"
5
4
146mm
7"
178mm
PEX ROUGH-IN
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-JANUARY 2019
