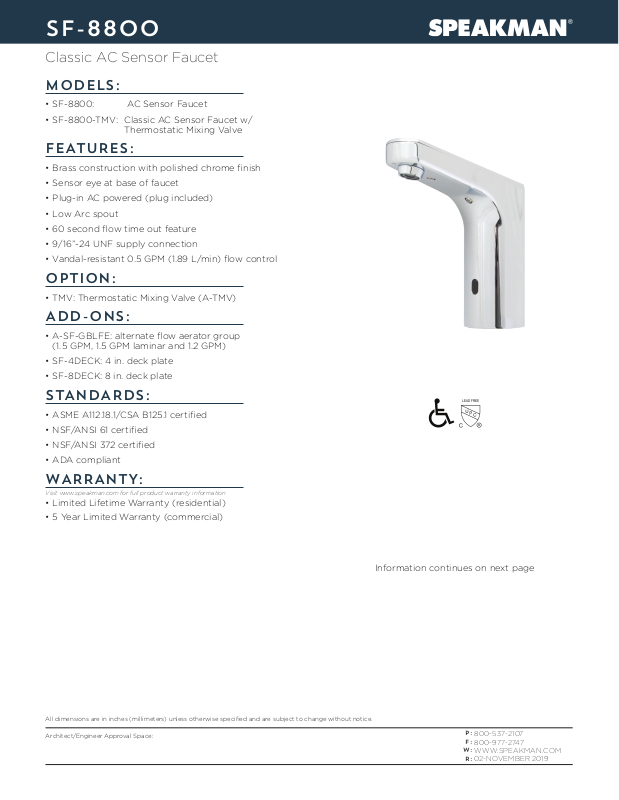

Page 1
SF-8800
LEAD FREE
Classic AC Sensor Faucet
MODELS:
• SF-8800: AC Sensor Faucet
• SF-8800-TMV: Classic AC Sensor Faucet w/
Thermostatic Mixing Valve
FEATURES:
• Brass construction with polished chrome finish
• Sensor eye at base of faucet
• Plug-in AC powered (plug included)
• Low Arc spout
• 60 second flow time out feature
• 9/16”-24 UNF supply connection
• Vandal-resistant 0.5 GPM (1.89 L/min) flow control
OPTION:
• TMV: Thermostatic Mixing Valve (A-TMV)
ADD-ONS:
• A-SF-GBLFE: alternate flow aerator group
(1.5 GPM, 1.5 GPM laminar and 1.2 GPM)
• SF-4DECK: 4 in. deck plate
• SF-8DECK: 8 in. deck plate
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
• NSF/ANSI 61 certified
• NSF/ANSI 372 certified
• ADA compliant
WARRANTY:
Visit www.speakman.com for full product warranty information
• Limited Lifetime Warranty (residential)
• 5 Year Limited Warranty (commercial)
Information continues on next page
All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
02-NOVEMBER 2019
Page 2
SF-8800
Classic AC Sensor Faucet
2.244in
56.99mm
6.850in
173.99mm
6.398in
162.50mm
116.16mm
4.573in
15.00°
3"
MAX DECK
THICKNESS
1 1/4"
MIN DECK
HOLE SIZE
All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
02-NOVEMBER 2019
