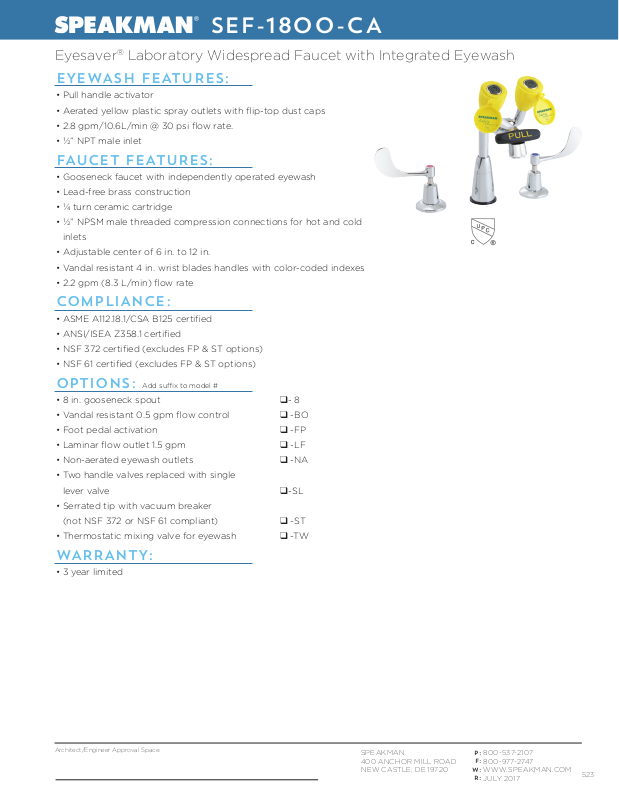

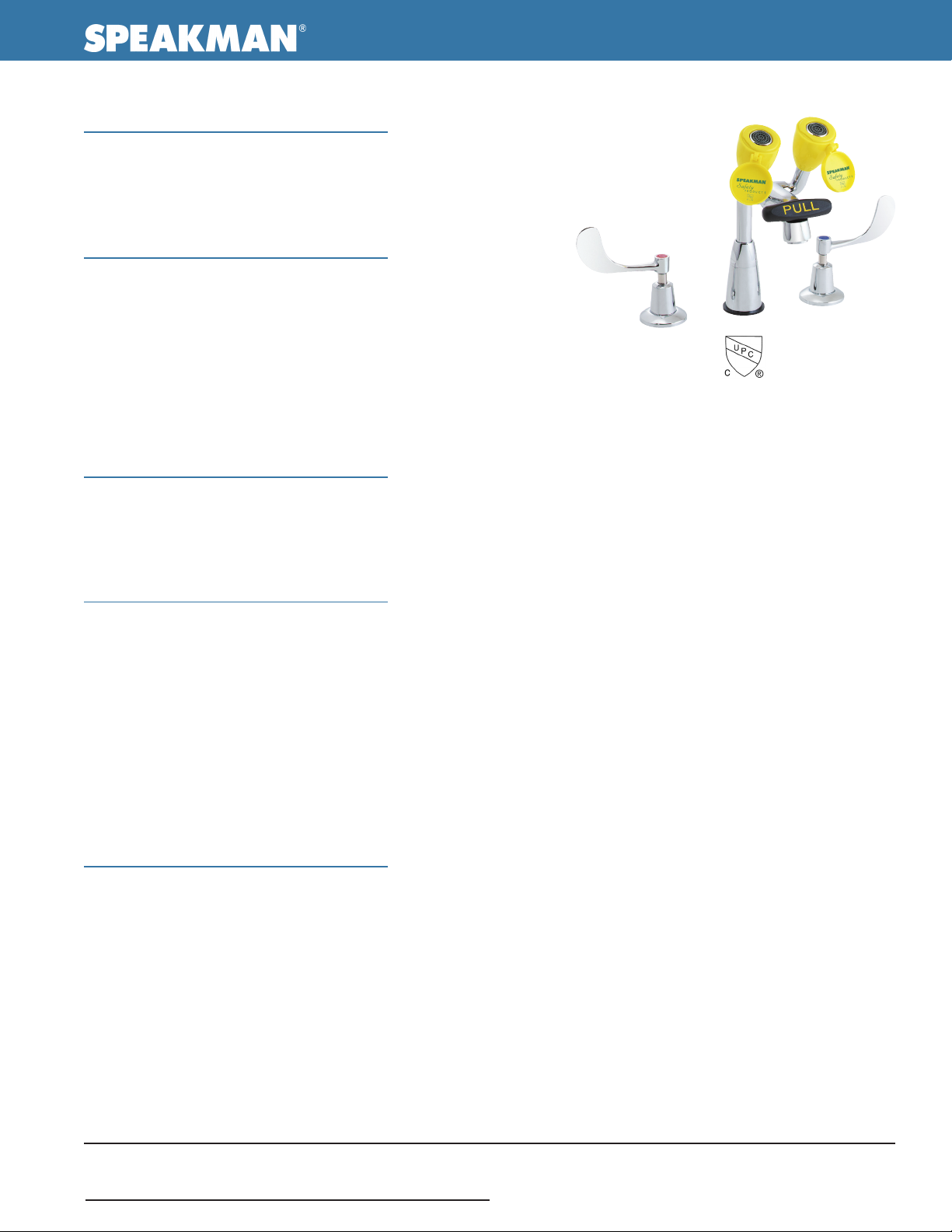

SEF-1800- C A
Eyesaver® Laboratory Widespread Faucet with Integrated Eyewash
EYEWASH FEATURES:
• Pull handle activator
• Aerated yellow plastic spray outlets with flip-top dust caps
• 2.8 gpm/10.6L/min @ 30 psi flow rate.
• ½” NPT male inlet
FAUCET FEATURES:
• Gooseneck faucet with independently operated eyewash
• Lead-free brass construction
• ¼ turn ceramic cartridge
• ½” NPSM male threaded compression connections for hot and cold
inlets
• Adjustable center of 6 in. to 12 in.
• Vandal resistant 4 in. wrist blades handles with color-coded indexes
• 2.2 gpm (8.3 L/min) flow rate
COMPLIANCE:
• ASME A112.18.1/CSA B125 certified
• ANSI/ISEA Z358.1 certified
• NSF 372 certified (excludes FP & ST options)
• NSF 61 certified (excludes FP & ST options)
OPTIONS: Add sux to model #
• 8 in. gooseneck spout ❑- 8
• Vandal resistant 0.5 gpm flow control ❑ -BO
• Foot pedal activation ❑ -FP
• Laminar flow outlet 1.5 gpm ❑ -LF
• Non-aerated eyewash outlets ❑ -NA
• Two handle valves replaced with single
lever valve ❑-SL
• Serrated tip with vacuum breaker
(not NSF 372 or NSF 61 compliant) ❑ -ST
• Thermostatic mixing valve for eyewash ❑ -TW
WARRANTY:
• 3 year limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
JULY 2017
523
Page 2
(NOT INCLUDED)

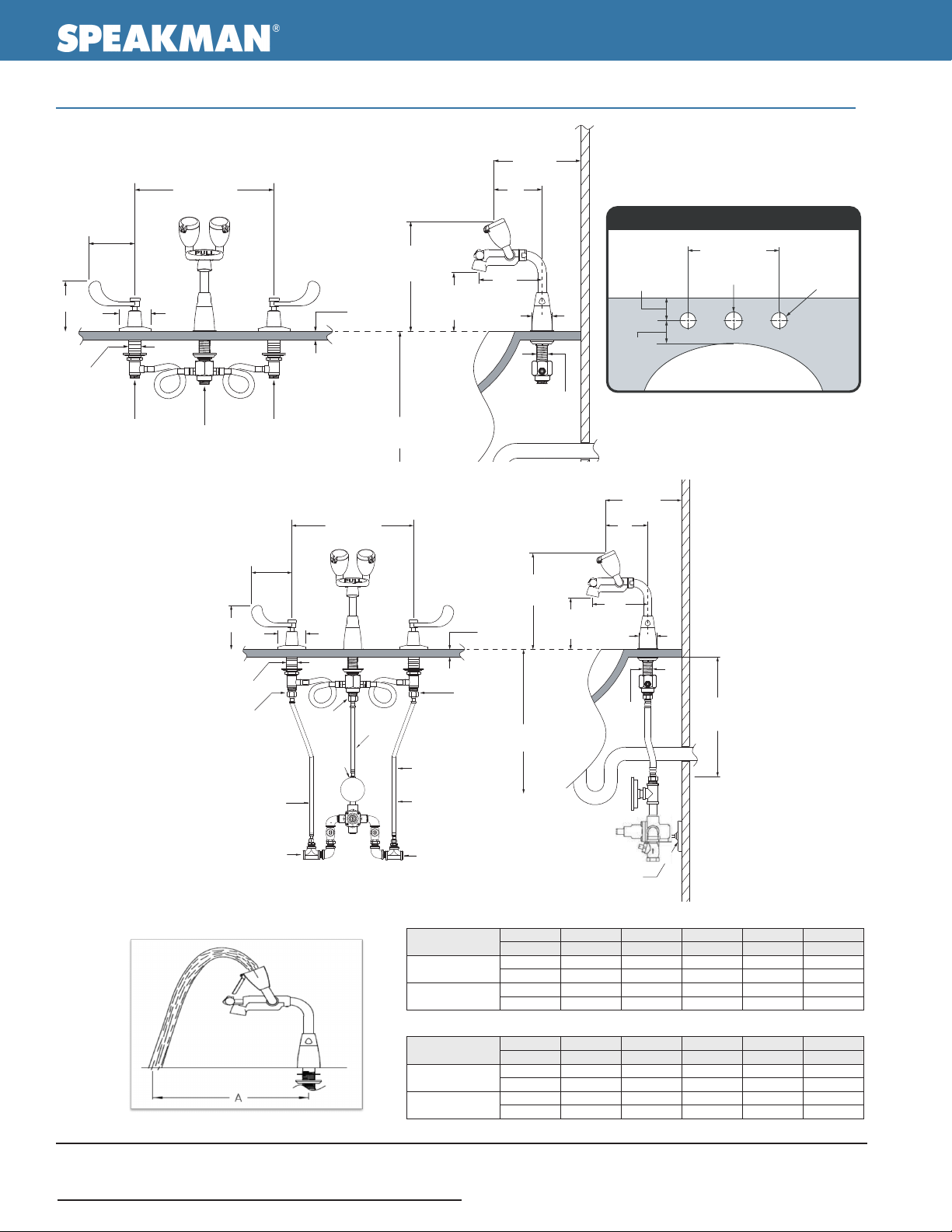

DIMENSIONS:
4”
( 102mm )
6” MIN ( 152mm )
12” MAX ( 305mm )
2” MAX
( 51mm )
Ø 2¼”
( 57mm )
Ø 1⅛”
HOT
SUPPLY INLET
½” NPSM MALE
COLD
SUPPLY INLET
½” NPSM MALE
COLD
SUPPLY INLET
FOR EYEWASH
½” NPT MALE
COUNTERTOP
MAX HEIGHT 36” ( 914 mm )
MIN HEIGHT 24” ( 610 mm )
* = -8 Dimensions
NOTE: All dimensions are in inches (millimeters)
unless otherwise specified and are subject to change.
6” MIN ( 152mm )
FROM ANY
OBSTRUCTION
4”
( 101mm )
*
6”
( 158mm )
5½”
( 140mm )
*
8”
( 203mm )
5” ( 133mm )
*
7” ( 184mm )
9” ( 229mm )
*
11” ( 279mm )
Ø 1¾”
( 44mm )
15/16”
( 24 mm)
LAVATORY ROUGH-IN
6” MIN - 12” MAX
Ø 1⅜”
( 35mm )
TYP.
Ø 1”
( 25mm )
2”
( 51mm )
MIN. TO WALL
2”
( 51mm )
MIN. TO LEDGE
6” MIN ( 152mm )
12” MAX ( 305mm )
4”
( 102mm )
4⅜”
( 111mm )
Ø 1⅛”
( 28mm )
SUPPLY INLET
½” NPSM MALE
HOT
Ø 2¼”
( 57mm )
SUPPLY INLET
FOR EYEWASH
½” NPT MALE
COLD
NOTE: 1. Side mounting (right or left) of the mixing valve is recommended. Mounting valve below the sink tting may damage the mixing
valve’s temperature gage during use of the sink tting. 2. Sink tting inlets are 1/2-14 NPT female. 3. All dimensions are in inches (millimeters)
unless otherwise specied and are subject to change without notice.
6” MIN ( 152mm )
FROM ANY
OBSTRUCTION
4”
( 101mm )
6”
*
( 158mm )
9” ( 229mm )
11” ( 279mm )
4⅜”
( 111mm )
COLD
SUPPLY INLET
½” NPSM MALE
4”
( 102mm )
2” MAX
( 51mm )
MAX HEIGHT 36” ( 914 mm )
MIN HEIGHT 24” ( 610 mm )
6” MIN ( 152mm )
12” MAX ( 305mm )
Ø 2¼”
( 57mm )
*
COUNTERTOP
5” ( 133mm )
7” ( 184mm )
*
( 140mm )
( 203mm )
( 44mm )
2” MAX
( 51mm )
5½”
8”
*
Ø 1¾”
9” ( 229mm )
*
15/16”
( 24 mm)
11” ( 279mm )
5” ( 133mm )
7” ( 184mm )
*
6” MIN ( 152mm )
FROM ANY
OBSTRUCTION
4”
( 101mm )
6”
*
( 158mm )
5½”
( 140mm )
8”
*
( 203mm )
Ø 1¾”
( 44mm )
Ø 1⅛”
( 28mm )
HOT ENDBODY
SUPPLY INLET
½” NPSM MALE
HOT HOSE
HOT WATER
SUPPLY INLET
TEPID SUPPLY
INLET FOR
EYEWASH
½” NPT MALE
THERMOSTATIC
MIXING VALVE
OUTPUT
EYEWASH
HOSE
COLD ENDBODY
SUPPLY INLET
½” NPSM MALE
MAX HEIGHT 36” ( 914 mm )
MIN HEIGHT 24” ( 610 mm )
BEFORE MOUNTING
VERIFY THE SUPPLY
HOSES WILL REACH
THE CONNECTIONS
COLD HOSE
COLD WATER
SUPPLY INLET
Flowing Pressure
Flow Rate
Eyewash Distance
Plume ”A”
Flowing Pressure
Flow Rate
Eyewash Distance
Plume “A”
MOUNT
VALVE
18 MAX.
BELOW
COUNTER
COUNTERTOP
15/16”
( 24 mm)
*NOTE- MOUNT THE
MIXING VALVE USING
1/2 PIPE HANGERS (2)
WITH WALL PLATES (2).
SEF-1800-CA Spray Plume Length and Flow
30 psi 40 psi 50 psi 60 psi 70 psi 80 psi
2.07 Bar 2.76 Bar 3.45 Bar 4.14 Bar 4.83 Bar 5.52 Bar
2.9 gpm 3.1 gpm 2.9 gpm 2.9 gpm 2.9 gpm 2.9 gpm
11.09 L/min 11.55 L/min 11.13 L/min 10.98 L/min 10.90 L/min 10.86 L/min
13.5” 14.25” 14.25” 13.75” 13.75” 13.75”
34.29 cm 36.2 cm 36.2 cm 34.93 cm 34.93 cm 34.93 cm
SEF-1800-CA-8 Spray Plume Length and Flow
30 psi 40 psi 50 psi 60 psi 70 psi 80 psi
2.07 Bar 2.76 Bar 3.45 Bar 4.14 Bar 4.83 Bar 5.52 Bar
2.9 gpm 3.1 gpm 2.9 gpm 2.9 gpm 2.9 gpm 2.9 gpm
11.09 L/min 11.55 L/min 11.13 L/min 10.98 L/min 10.90 L/min 10.86 L/min
17.0” 18” 17.5” 17.0” 17.0” 17.0”
43.18 cm 45.72 cm 44.45 cm 43.18 cm 43.18 cm 43.18 cm
