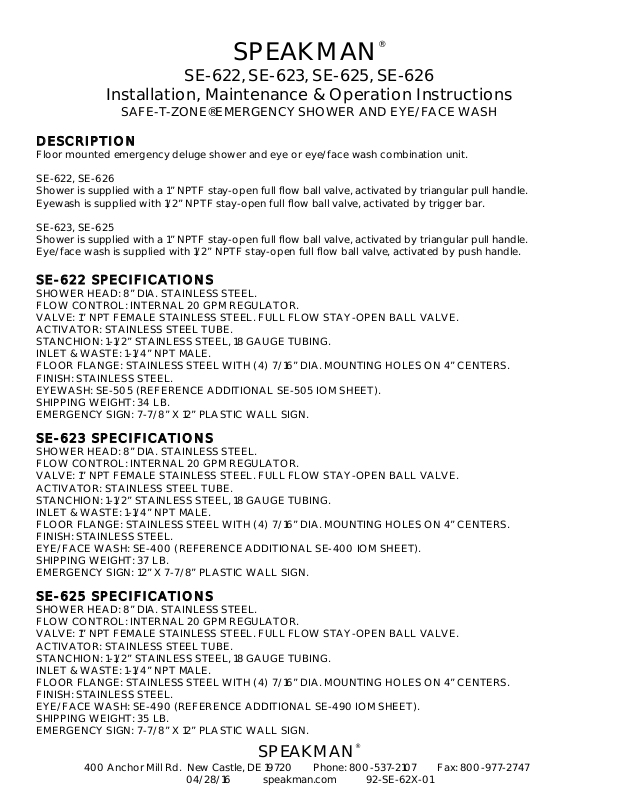

SPEAKMAN

SE-622, SE-623, SE-625, SE-626

Installation, Maintenance & Operation Instructions

SAFE-T-ZONE® EMERGENCY SHOWER AND EYE/FACE WASH

Floor mounted emergency deluge shower and eye or eye/face wash combination unit.
SE-622, SE-626

Shower is supplied with a 1” NPTF stay-open full flow ball valve, activated by triangular pull handle.
Eyewash is supplied with 1/2” NPTF stay-open full flow ball valve, activated by trigger bar.

SE-623, SE-625

Shower is supplied with a 1” NPTF stay-open full flow ball valve, activated by triangular pull handle.
Eye/face was h is supplied with 1/2” NPTF stay-open full flow ball valve, activated by push handle.

SHOWER HEAD: 8” DIA. STAINLESS STEEL.
FLOW CONTROL: INTERNAL 20 GPM REGULATOR.
VALVE: 1” NPT FEMALE STAINLESS STEEL. FULL FLOW STAY-OPEN BALL VALVE.
ACTIVATOR: STAINLESS STEEL TUBE.
STANCHION: 1-1/2” STAINLESS STEEL, 18 GAUGE TUBING.
INLET & WASTE: 1-1/4” NPT MALE.
FLOOR FLANGE: STAINLESS STEEL WITH (4) 7/16” DIA. MO UNTING HOLES ON 4” CENTERS.
FINISH: STAINLESS STEEL.
EYEWASH: SE-505 (REFERENCE ADDITIONAL SE-505 IOM SHEET).
SHIPPING WEIGHT: 34 LB.
EMERGENCY SIGN: 7-7/8” X 12” PLASTIC WALL SIGN.

SHOWER HEAD: 8” DIA. STAINLESS STEEL.
FLOW CONTROL: INTERNAL 20 GPM REGULATOR.
VALVE: 1” NPT FEMALE STAINLESS STEEL. FULL FLOW STAY-OPEN BALL VALVE.
ACTIVATOR: STAINLESS STEEL TUBE.
STANCHION: 1-1/2” STAINLESS STEEL, 18 GAUGE TUBING.
INLET & WASTE: 1-1/4” NPT MALE.
FLOOR FLANGE: STAINLESS STEEL WITH (4) 7/16” DIA. MOUNTING HOLES ON 4” CENTERS.
FINISH: STAINLESS STEEL.
EYE/FACE WASH: SE-400 (REFERENCE ADDITIONAL SE-400 IOM SHEET).
SHIPPING WEIGHT: 37 LB.
EMERGENCY SIGN: 12” X 7-7/8” PLASTIC WALL SIGN.

SHOWER HEAD: 8” DIA. STAINLESS STEEL.
FLOW CONTROL: INTERNAL 20 GPM REGULATOR.
VALVE: 1” NPT FEMALE STAINLESS STEEL. FULL FLOW STAY-OPEN BALL VALVE.
ACTIVATOR: STAINLESS STEEL TUBE.
STANCHION: 1-1/2” STAINLESS STEEL, 18 GAUGE TUBING.
INLET & WASTE: 1-1/4” NPT MALE.
FLOOR FLANGE: STAINLESS STEEL WITH (4) 7/16” DIA. MOUNTING HOLES ON 4” CENTERS.
FINISH: STAINLESS STEEL.
EYE/FACE WASH: SE-490 (REFERENCE ADDITIONAL SE-490 IOM SHEET).
SHIPPING WEIGHT: 35 LB.
EMERGENCY SIGN: 7-7/8” X 12” PLASTIC WALL SIGN.

SPEAKMAN®

400 Anchor Mill Rd. New Castle, DE 19720 Phone: [phone] Fax: [phone]

04/28/16 speakman.com 92-SE-62X-01

SE-626 SPECIFICATIONS

INSTALLATION

OPERATION

TESTING PROGRAM

SHOWER HEAD: 8” DIA. STAINLESS STEEL.
FLOW CONTROL: INTERNAL 20 GPM REGULATOR.
VALVE: 1” NPT FEMALE STAINLESS STEEL. FULL FLOW STAY-O PEN BALL VALVE.
ACTIVATOR: STAINLESS STEEL TUBE.
STANCHION: 1-1/2” STAINLESS STEEL, 18 GAUGE TUBING.
INLET & WASTE: 1-1/4” NPT MALE.
FLOOR FLANGE: STAINLESS STEEL WITH (4) 7/16” DIA. MOUNTING HOLES ON 4” CENTERS.
FINISH: STAINLESS STEEL.
EYEWASH: SE-582 (REFERENCE ADDITIONAL SE-582 IOM SHEET).
SHIPPING WEIGHT: 39 LB.
EMERGENCY SIGN: 7-7/8” X 12” PLASTIC WALL SIGN.

When assembling use wrench to tighten connection joints. Be sure and use pipe sealant on all threaded
connections. Review drawin g (as shown on other side) to assure proper location of inlets, outlets,
and accessories.
The best method to assembling this unit is as follows:

(1) Mount the bottom stanchion section to the floor using suitable anchors. Then assemble the middle

section and then the top section, making su re rubber sealing gasket is seated correctly.
(Use pipe sealant on all joints).

(2) Rest the eyewash bowl or eye/face wash bowl on the rubber washer and drain spud, making sur e

to get the bowl as level as possible.

(3) Once bowl is positioned correctly on spud, apply plumbers putty to drain strainer and tighten with

hex tool (supplied).

(4) Take 1/2" stainless steel flexible hose and connect it to the 1/2" NPTM supply outlet located on

the stanchion and the 1/2" in-line strai ner on the ey e wa sh or ey e/ face wash.
(5) Assemble pull rod and shower head.
(6) Once unit is completely assembled, connect potable water supply to 1-1/4” top inlet, and 1-1/4” waste

to bottom outlet.

Failure to use potable water can result in emergency units producing impure or contaminated water causing
possible further injury. The drain tailpiece or waste should be connected to an adequate drain in compliance
with local plumbing codes.

The shower is activated by pulling the triangle pull handle. Once the valve is activated the head will
continue to discharge water until the valve is manually closed. This is done by pushing up the pull handle
to the off position.
The eyewash or eye/face wash is activated by pushing the trigger bar or the push handle back 90°. The unit
will operate until the trigger bar or the push handle is manually pulled back up to the off position.

The American National Standards Institute (ANSI) states that all safety emergency equipment shall be
activated on a weekly basis to flush the line and verify proper operation. Speakman Company furnishes
a testing record tag (91-0635) with each unit. On this tag the date of inspection and the inspector’s initials
should be noted.

SPEAKMAN®

400 Anchor Mill Rd. New Castle, DE 19720 Phone: [phone] Fax: [phone]

04/28/16 speakman.com 92-SE-62X-01

MAINTENANCE

be sure to shut the wate r suppl y off

WARNING: Use onl y genuine Speakman parts when repairing
or replacing componen ts. To order parts call 1-800-537-2107.

The valve and the eyewash or eye/f a ce wash are the only portion of the unit that may require maintenance.
Should you need parts to repair this unit, please reference the parts listing below for correct part number s.
Reference additional technical sheets (supplied) for information on the SE-505 eyewash, SE-400 ey e/ face
wash, SE-490 ey e/ fa c e wa sh , SE-582 eyewash, SE-820 shower head, and the SE-911-SS valve. Before any
maintenance is done

SHOWER AND EMERGENCY EYEWASH COMBINATIONS

SE-622 Stainless Steel SE-505 Eyewash
SE-623 Stainless Steel SE-400 Eye/Face Wash
SE-625 Stainless Steel SE-490 Eye/Face Wash
SE-626 Stainless Steel SE-582 Eyewash

.

SPEAKMAN®

400 Anchor Mill Rd. New Castle, DE 19720 Phone: [phone] Fax: [phone]

04/28/16 speakman.com 92-SE-62X-01

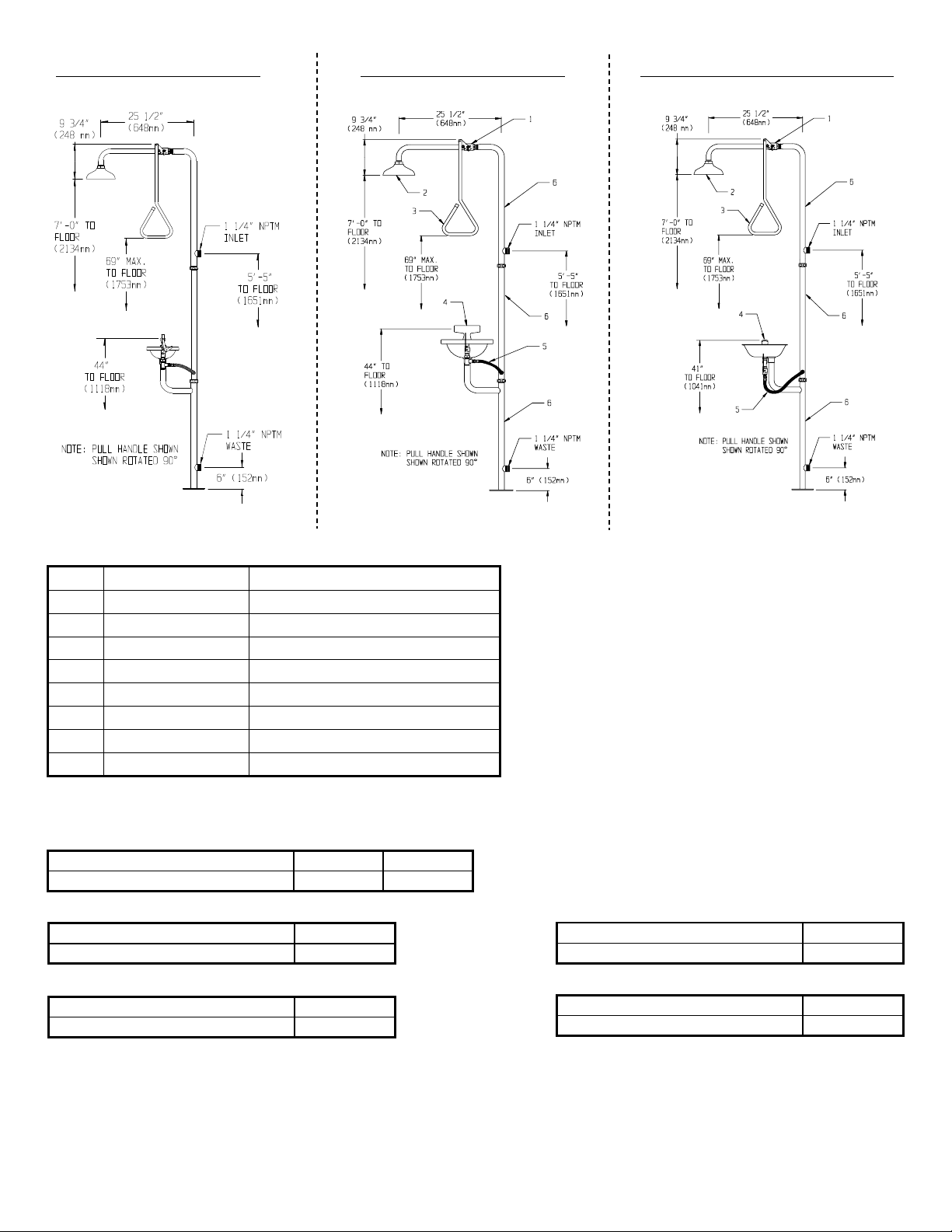

SE-622 ROUGH-IN SE-623 ROUGH-IN SE-625/626 ROUGH-IN

REPLACEMENT/REPAIR PART S

FLOW DATA

Note: All units meet

without notice.

FLOW PRESSURE PSI (BAR)

30 (2.07)

60 (4.14)

FLOW RATE GPM (LPM)

20 (75)

25 (94)

FLOW PRESSURE PSI (BAR)

30 (2.07)

FLOW RATE GPM (LPM)

3 (11)

FLOW PRESSURE PSI (BAR)

30 (2.07)

FLOW RATE GPM (LPM)

9.55 (36.6)

FLOW PRESSURE PSI (BAR)

30 (2.07)

FLOW RATE GPM (LPM)

4.5 (17.0)

FLOW PRESSURE PSI (BAR)

30 (2.07)

FLOW RATE GPM (LPM)

3.2 (12.1)

ITEM PART/GROUP # DESCRIPTION

1 SE-911-SS 1” Ball Valve with Pull Rod
2 SE-820 8” Stainless Steel Shower Head
3 RPG47-0043 Pull Handle

4A SE-505 Eyewash
4B SE-400 Eye/Face Wash
4C SE-490 Eye/Face Wash
4D SE-582 Eyewash

5 63-0027 S/S Flexible Hose

existing ANSI Z358.1
Standards and OSHA Rules.
Product improvements
may cause specification
and dimensional changes

SHOWER:

SE-505 EYEWASH: SE-400 EYE/FACE WASH:

SE-490 EYE/FACE WASH: SE-582 EYEWASH:

NOTE: This unit should be connected to an uninterrupted source
of potable water, with a mini mum flowing pressure of 30 PSI
and a maximum static pressure of 80 PSI.
