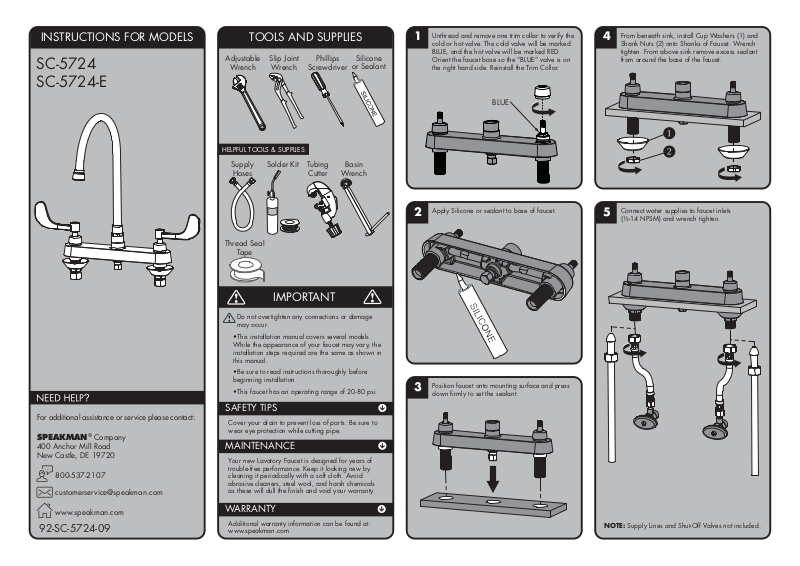

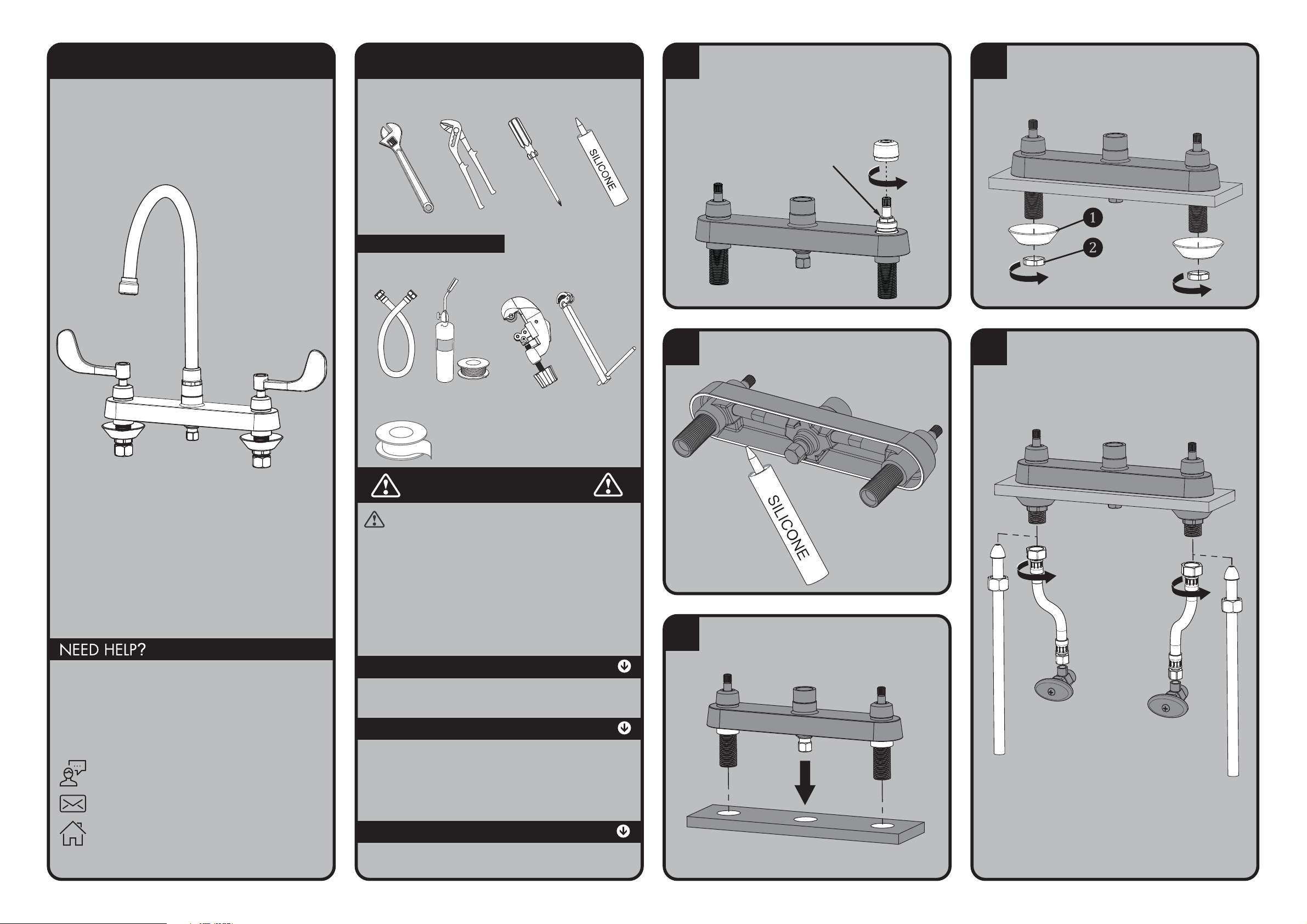

INSTRUCTIONS FOR MODELS
92-SC-5724-09
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
SC-5724
SC-5724-E
TOOLS AND SUPPLIES
1
Unthread and remove one trim collar to verify the
cold or hot valve. The cold valve will be marked
BLUE, and the hot valve will be marked RED.
Orient the faucet base so the “BLUE” valve is on
the right hand side. Reinstall the Trim Collar.
BLUE
2
Apply Silicone or sealant to base of faucet.
3
Position faucet onto mounting surface and press
down firmly to set the sealant.
4
From beneath sink, install Cup Washers (1) and
Shank Nuts (2) onto Shanks of Faucet. Wrench
tighten. From above sink remove excess sealant
from around the base of the faucet.
5
Connect water supplies to faucet inlets
(½-14 NPSM) and wrench tighten.
NOTE: Supply Lines and Shut-Off Valves not included.
Adjustable
Wrench
HELPFUL TOOLS & SUPPLIES:
Slip Joint
Wrench
Phillips
Screwdriver
Silicone
or Sealant
Supply
Hoses
Thread Seal
Tape
Solder Kit
Tubing
Cutter
Basin
Wrench
IMPORTANT
Do not overtighten any connections or damage
may occur.
•This installation manual covers several models.
While the appearance of your faucet may vary, the
installation steps required are the same as shown in
this manual.
•Be sure to read instructions thoroughly before
beginning installation.
•This faucet has an operating range of 20-80 psi.
SAFETY TIPS
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
MAINTENANCE
Your new Lavatory Faucet is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool, and harsh chemicals
as these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Page 2

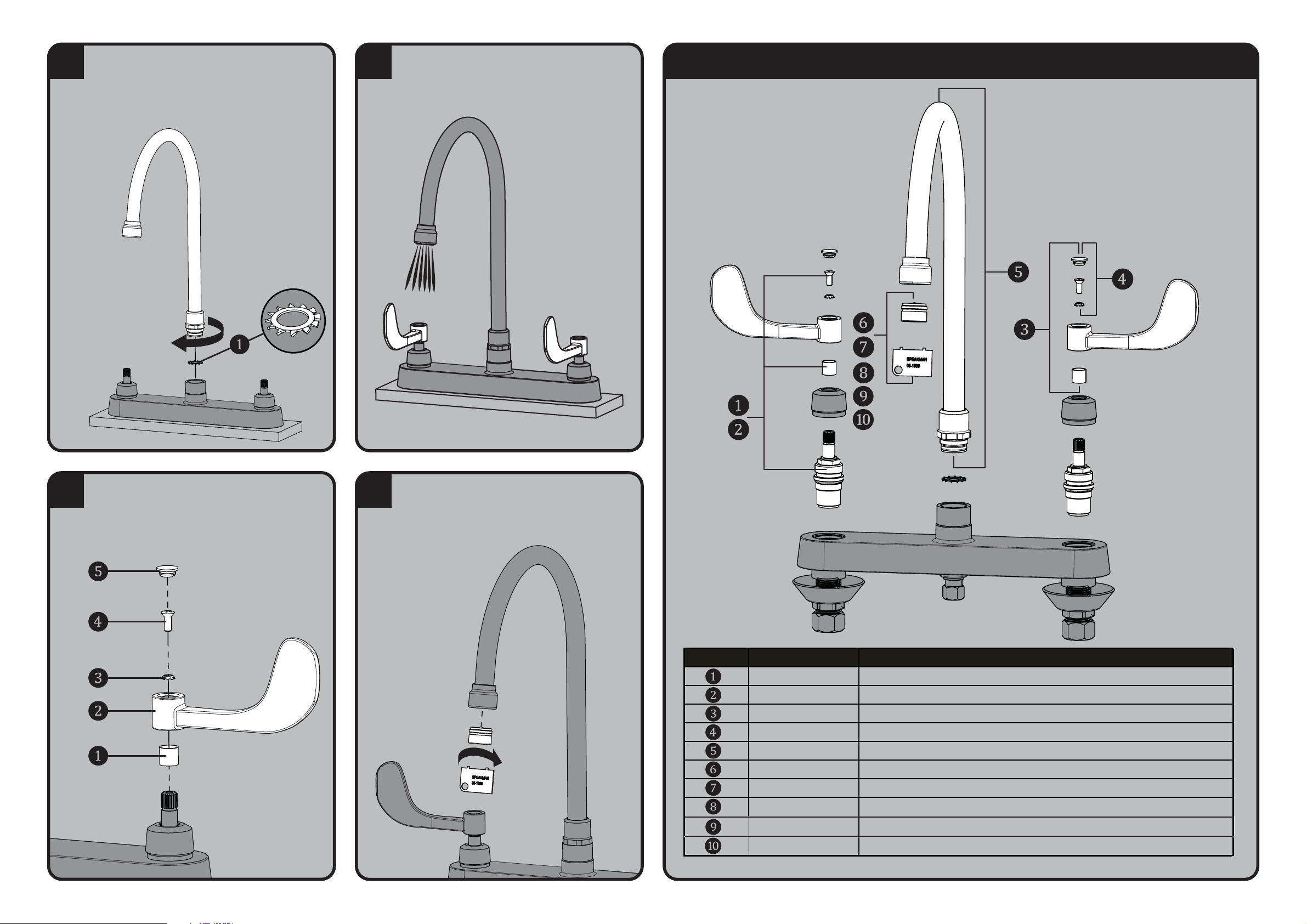

6
Install the Gooseneck Spout to the Faucet Body.
If you wish to have a non-swivel spout, place the
supplied lock washer (1) between the Gooseneck
Spout and the Faucet Body. Wrench tighten
Gooseneck Spout Collar to Faucet Base.
Install for rigid
(non-swivel) feature
7
Install the Trim Sleeves (1) over the spindles,
followed by the Handles (2), Lock Washers (3),
and secure with Handle Screws (4). Install Index
Buttons (5) into handles (Blue on right handle, Red
on left handle).
8
Turn on water supplies and flush both COLD and
HOT cartridges for one minute, while checking
for leaks.
9
Turn off COLD and HOT handles and install
supplied Spray Outlet with supplied Wrench.
SC-5724 REPAIR PARTS
ITEM NO . PART NO. DESCRIPTIO N
RPG05-0532-CA PERFECT VALVE GROUP (RED/HOT) WITH TRIM SLEEVE AND SCREW
RPG05-0533-CA PERFECT VALVE GROUP (BLUE/COLD) WITH TRIM SLEEVE AND SCREW
RPG04-0316-PC 4" WRIST BLADE HANDLE GROUP
RPG41-0285 RED, BLUE, AND WHITE INDEX BUTTONS WITH SCREWS AND LOCK WASHERS
G18-0217-CA 8" GOOSENECK SPOUT ASSEMBLY
RPG05-0837-PC 1.5 GPM AERATOR ASSEMBLY WITH WRENCH
RPG05-0851-PC 1.5 GPM LAMINAR FLOW OUTLET ASSEMBLY WITH WRENCH
A-EA12 1.2 GPM AERATOR ASSEMBLY WITH WRENCH
RPG38-0128-PC BOCA 0.5 GPM FLOW OUTLET ASSEMBLY WITH WRENCH (-E)
A-ELF 1.2 GPM LAMINAR FLOW OUTLET ASSEMBLY WITH WRENCH
Page 3

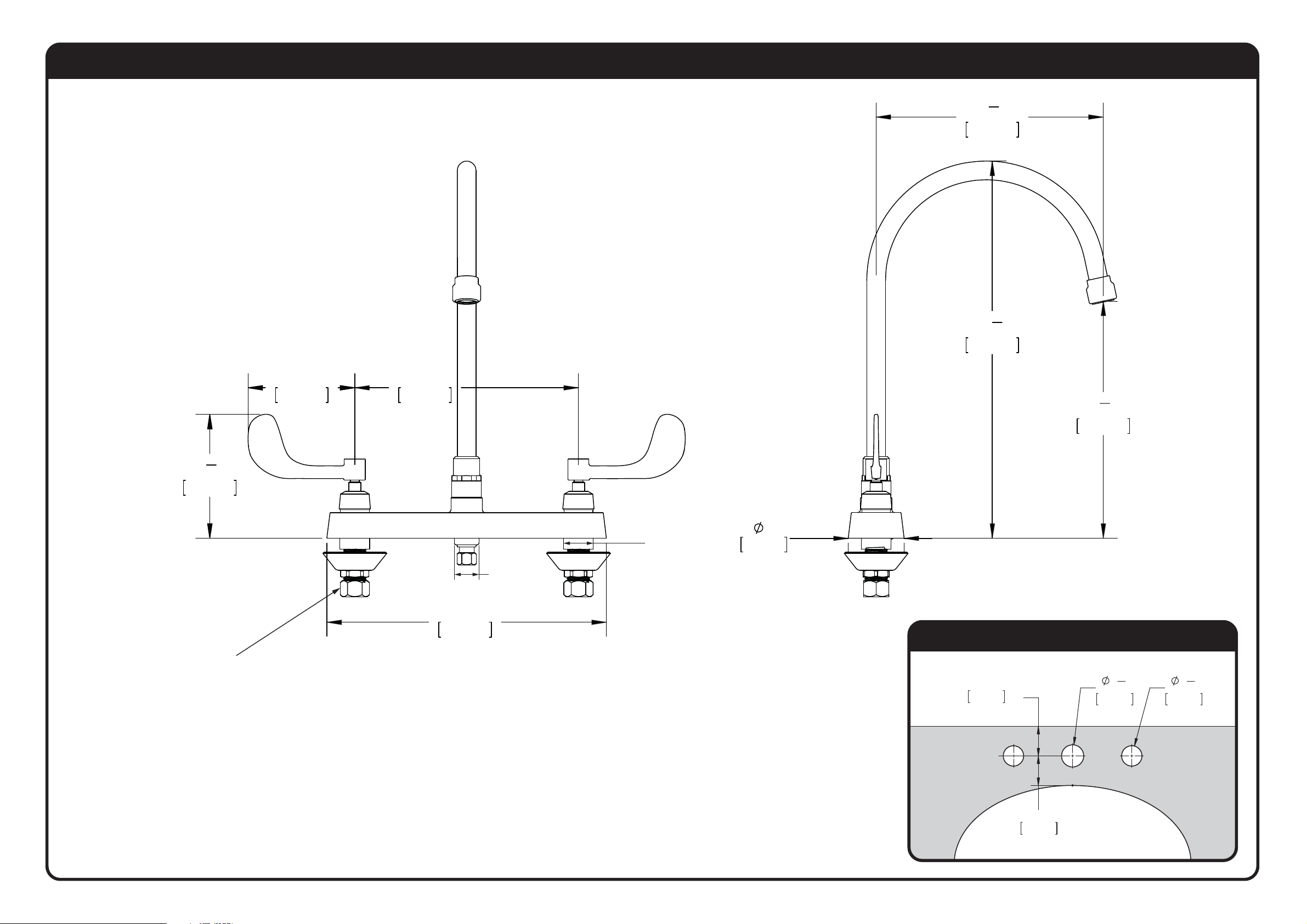

SC-5724 ROUGH-IN DIAGRAM
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
2"
51mm
13
1
2
"
343mm
8
1
8
"
206mm
8
1
2
"
215mm
8"
203mm
10"
254mm
4"
102mm
4
3
8
"
113mm
1-1/16” DIA.
7/8” DIA.
1
1
4
"
38mm
1
1
4
"
35mm
2"
51mm
MIN. TO WALL
2"
51mm
MIN. TO LEDGE
LAVATORY ROUGH-IN
MIN
MIN
½”-14 NPSM INLETS.
(SUPPLY LINES NOT INCLUDED)
