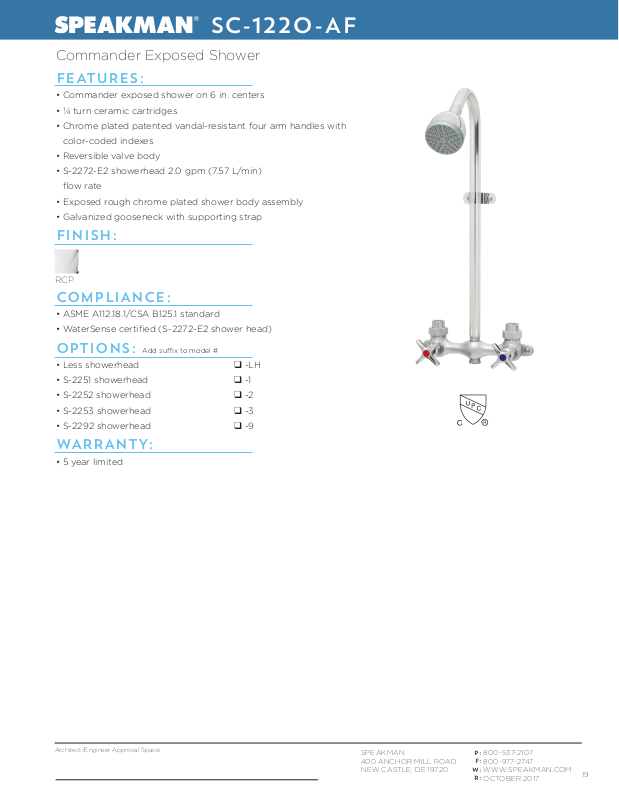

Page 1
SC-1220-AF
Commander Exposed Shower
FEATURES:
• Commander exposed shower on 6 in. centers
• ¼ turn ceramic cartridges
• Chrome plated patented vandal-resistant four arm handles with
color-coded indexes
• Reversible valve body
• S-2272-E2 showerhead 2.0 gpm (7.57 L/min)
flow rate
• Exposed rough chrome plated shower body assembly
• Galvanized gooseneck with supporting strap
FINISH:
RCP
COMPLIANCE:
• ASME A112.18.1/CSA B125.1 standard
• WaterSense certified (S-2272-E2 shower head)
OPTIONS: Add sux to model #
• Less showerhead ❑ -LH
• S-2251 showerhead ❑ -1
• S-2252 showerhead ❑ -2
• S-2253 showerhead ❑ -3
• S-2292 showerhead ❑ -9
WARRANTY:
• 5 year limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
19
Page 2
DIMENSIONS:
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice. 2. Unless otherwise
specied, all inlets and outlets are 1/2” NPT threads.
7-5/8"
(194mm)
4-1/2"
(114mm)
3"
(76mm)
6"
(152mm)
8-1/4"
(210mm)
15-1/2"
(394mm)
4'-6"
(1.37 Meters)
TO FLOOR
7/ 8"
(22mm)
Architect/Engineer Approval Space:
20
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
