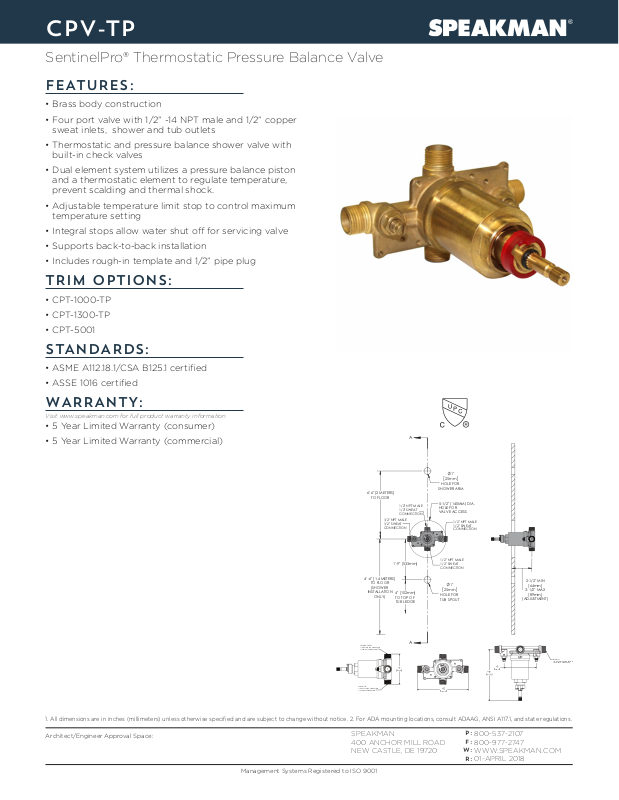

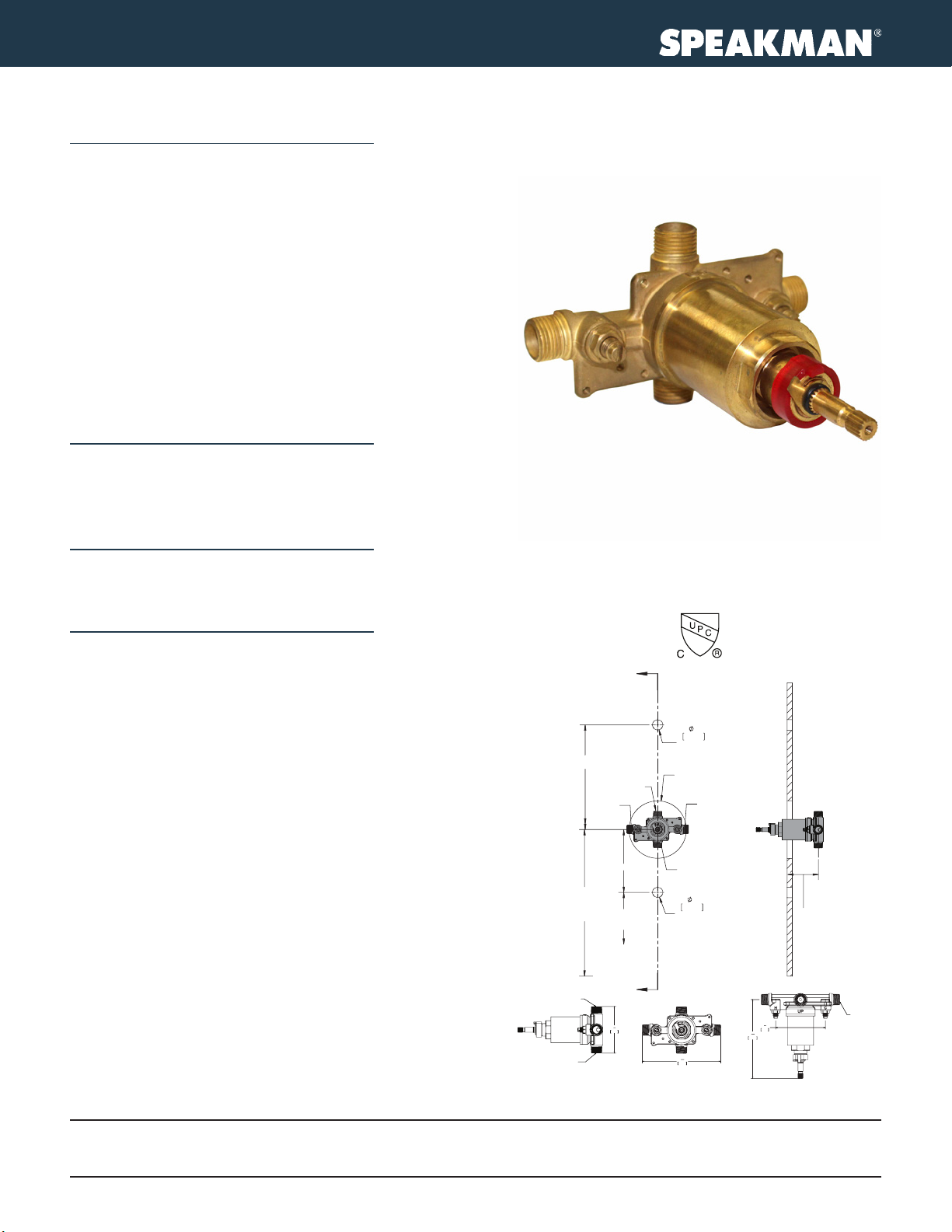

CPV-T P
N
SentinelPro® Thermostatic Pressure Balance Valve
FEATURES:
• Brass body construction
• Four port valve with 1/2” -14 NPT male and 1/2” copper
sweat inlets, shower and tub outlets
• Thermostatic and pressure balance shower valve with
built-in check valves
• Dual element system utilizes a pressure balance piston
and a thermostatic element to regulate temperature,
prevent scalding and thermal shock.
• Adjustable temperature limit stop to control maximum
temperature setting
• Integral stops allow water shut o for servicing valve
• Supports back-to-back installation
• Includes rough-in template and 1/2” pipe plug
TRIM OPTIONS:
• CPT-1000-TP
• CPT-1300-TP
• CPT-5001
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
• ASSE 1016 certified
WARRANTY:
Visit www.speakman.com for full product warranty information
• 5 Year Limited Warranty (consumer)
• 5 Year Limited Warranty (commercial)
6'-6" [2 METERS]
TO FLOOR
4’-6" [1.4 METERS]
TO FLOOR
(SHOWER
INSTALLATION
ONLY)
SHOWER OUTLET:
1/2" NPT MALE CONNECTION
1/2 SWEAT CONNECTION
TUB OUTLET:
1/2" NPT MALE CONNECTION
1/2 SWEAT CONNECTION
1/2" NPT MALE
1/2" SWEAT
CONNECTION
1'-9" [533mm]
4" [102mm]
TO TOP OF
TUB LEDGE
3
89mm
A
1/2" NPT MALE
1/2" SWEAT
CONNECTION
A
1
"
2
1"
25mm
HOLE FOR
SHOWER ARM
5-1/2" (140MM) DIA.
HOLE FOR
VALVE ACCESS
1/2" NPT MALE
1/2" SWEAT
CONNECTION
1/2" NPT MALE
1/2" SWEAT
CONNECTION
1"
25mm
HOLE FOR
TUB SPOUT
15
"
5
16
150mm
2-1/2" MIN
[64mm]
3-1/2" MAX
[89mm]
(ADJUSTMENT)
INLETS (2):
1/2" NPT MALE CONNECTIO
3
"
3
4
95mm
15
"
5
16
151mm
1/2 SWEAT CONNECTION
1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice. 2. For ADA mounting locations, consult ADAAG, ANSI A117.1, and state regulations.
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW CASTLE, DE 19720
P:
800-537-2107
F:
80 0 -97 7-2 747
W:
WWW.SPEAKMAN.COM
R:
01-APRIL 2018
Management Systems Registered to ISO 9001
