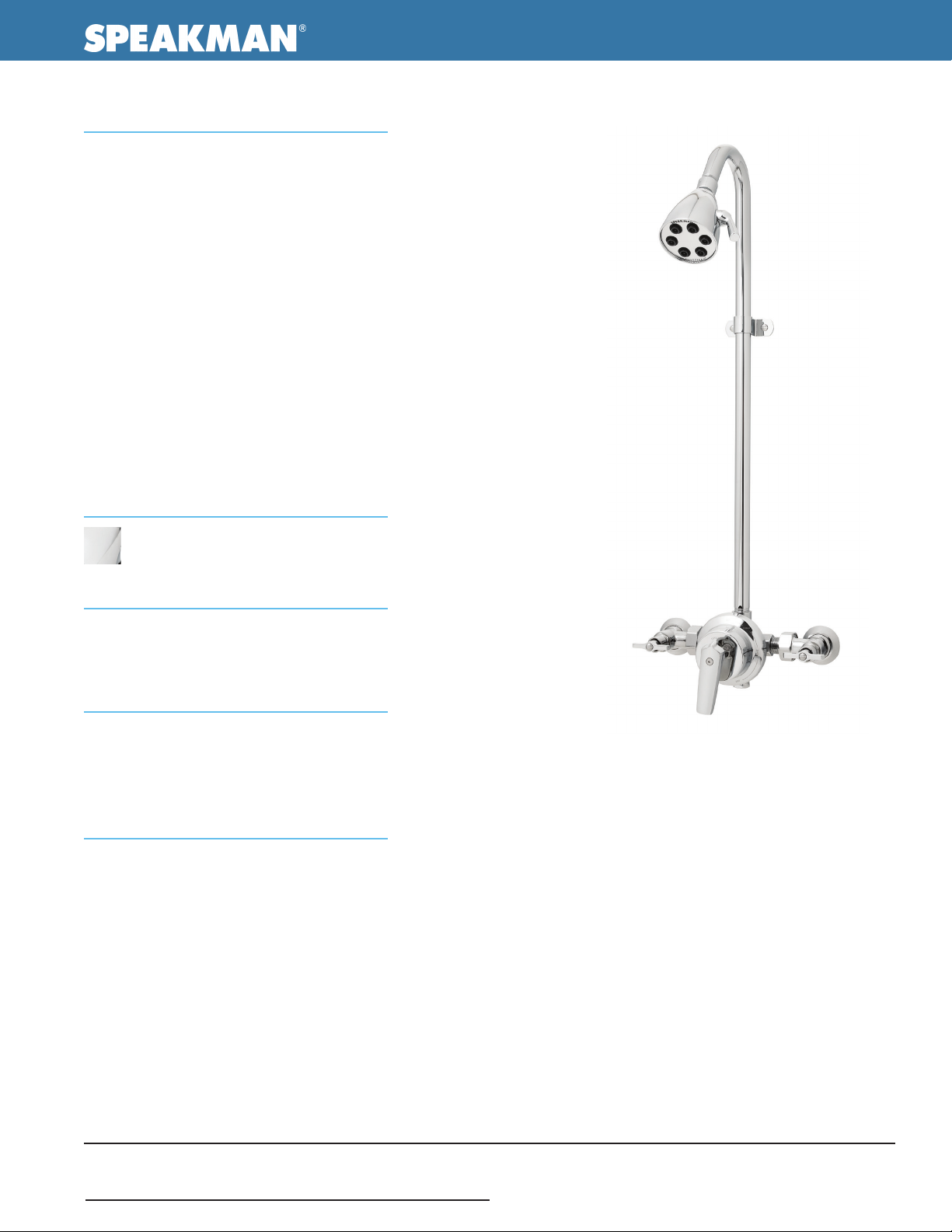

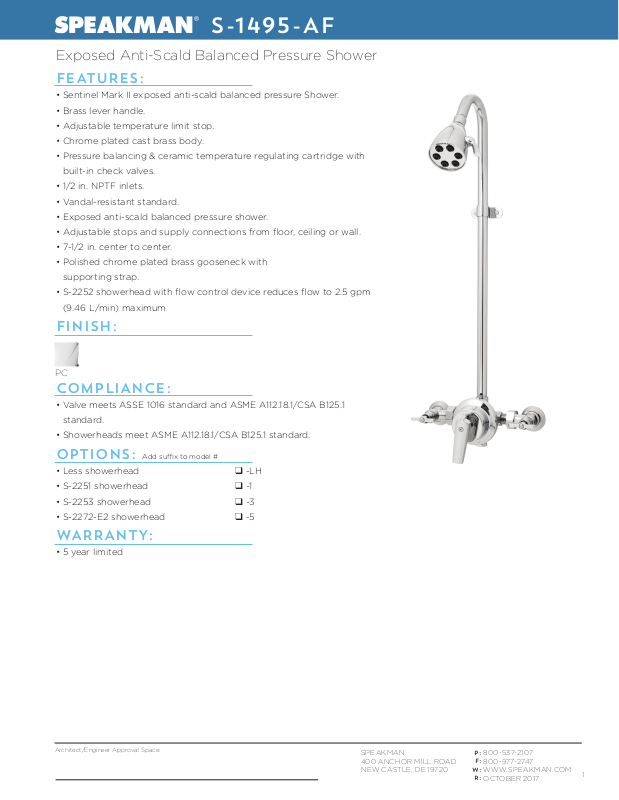

S-1495 -AF
Exposed Anti-Scald Balanced Pressure Shower
FEATURES:
• Sentinel Mark II exposed anti-scald balanced pressure Shower.
• Brass lever handle.
• Adjustable temperature limit stop.
• Chrome plated cast brass body.
• Pressure balancing & ceramic temperature regulating cartridge with
built-in check valves.
• 1/2 in. NPTF inlets.
• Vandal-resistant standard.
• Exposed anti-scald balanced pressure shower.
• Adjustable stops and supply connections from floor, ceiling or wall.
• 7-1/2 in. center to center.
• Polished chrome plated brass gooseneck with
supporting strap.
• S-2252 showerhead with flow control device reduces flow to 2.5 gpm
(9.46 L/min) maximum
FINISH:
PC
COMPLIANCE:
• Valve meets ASSE 1016 standard and ASME A112.18.1/CSA B125.1
standard.
• Showerheads meet ASME A112.18.1/CSA B125.1 standard.
OPTIONS: Add sux to model #
• Less showerhead ❑ -LH
• S-2251 showerhead ❑ -1
• S-2253 showerhead ❑ -3
• S-2272-E2 showerhead ❑ -5
WARRANTY:
• 5 year limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
1
Page 2
Angle Stop
1
"

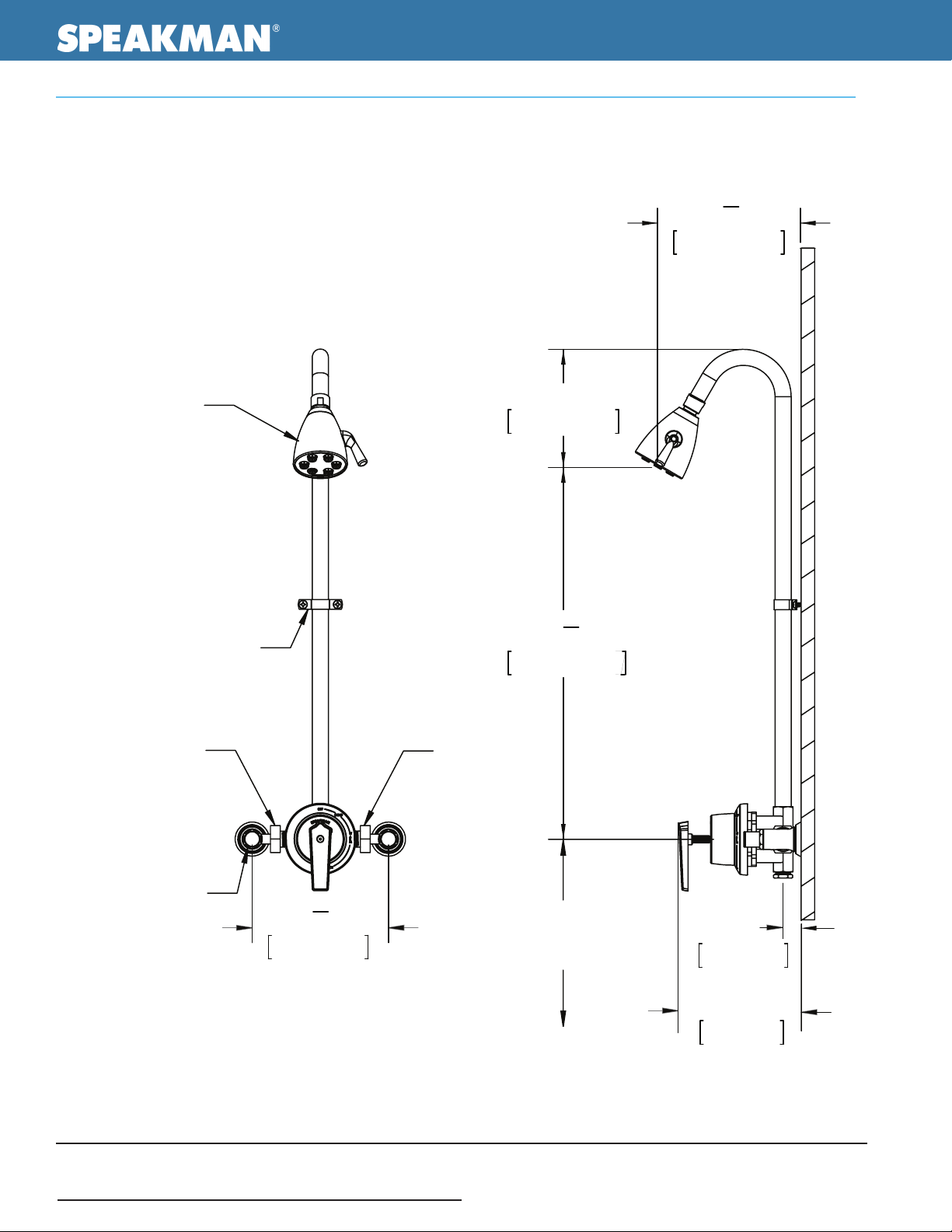

DIMENSIONS:
S-2252
NOTE: 1. Dimensions shown above are for the installation inclusive of the S-2252 showerhead. Dimensions will vary slightly depending on
showerhead choice. 2. Dimensions are subject to change without notice. 3. Unit can also be installed using a ceiling or oor supply.
7
4
184.29mm
6"
152.24mm
Pipe Strap
W/ Screws
(Location
Optional)
Hot Inlet
Union
Loose Key
(2 Places)
1
"
7
2
190.5mm
479.59mm
Cold Inlet
Union
(1.37 meters)
7
"
18
8
4'-6"
To Floor
1"
25.4mm
5"
127mm
