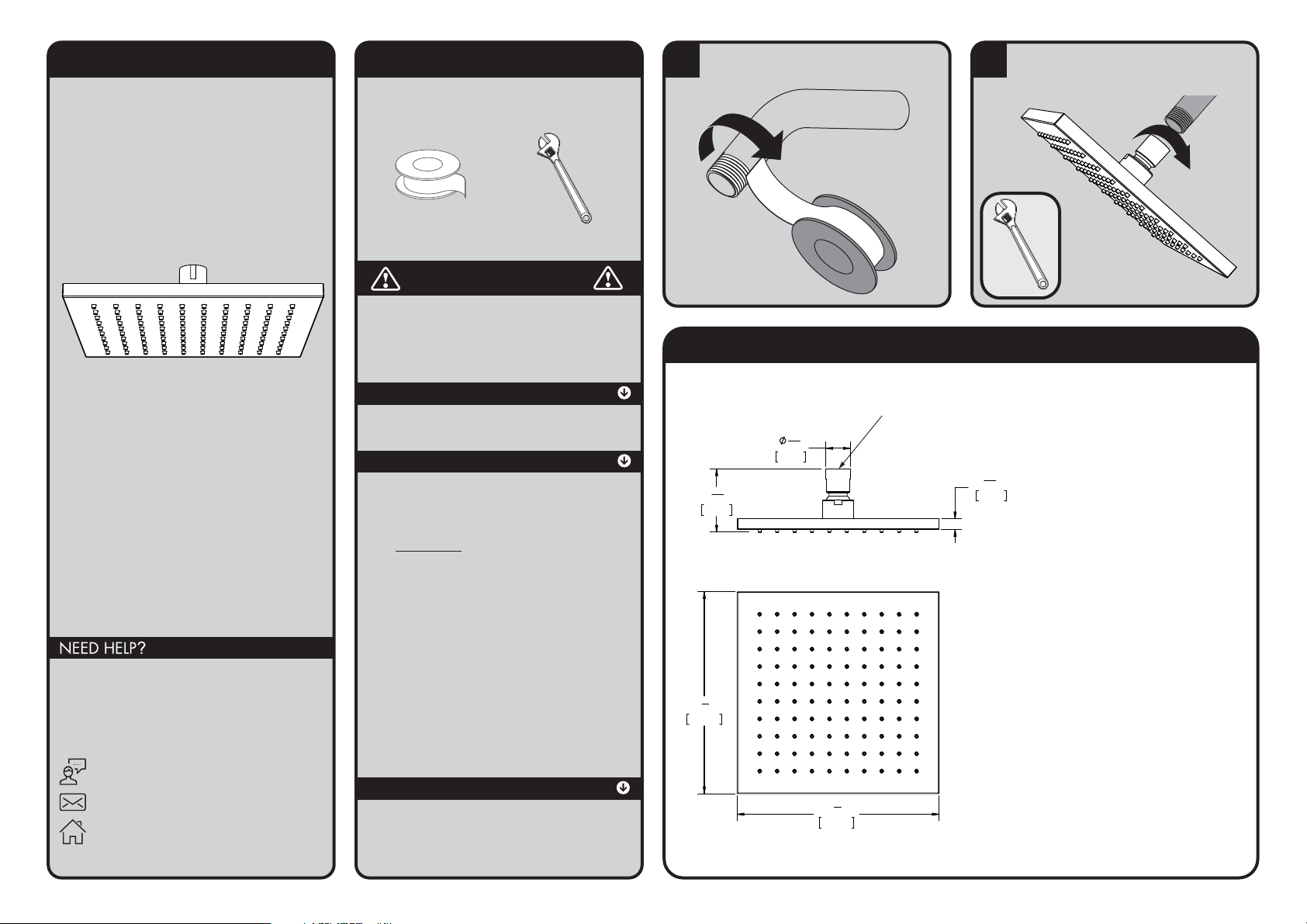

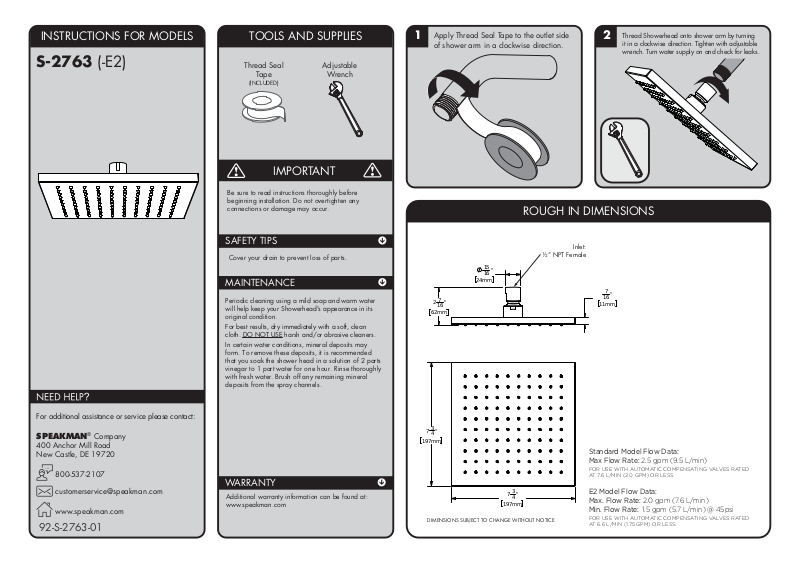

INSTRUCTIONS FOR MODELS
S-2763 (-E2)
TOOLS AND SUPPLIES
1
Apply Thread Seal Tape to the outlet side
of shower arm in a clockwise direction.
2
Thread Showerhead onto shower arm by turning
it in a clockwise direction. Tighten with adjustable
wrench. Turn water supply on and check for leaks.
ROUGH IN DIMENSIONS
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
Standard Model Flow Data:
Max Flow Rate: 2.5 gpm (9.5 L/min)
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 7.6 L/MIN (2.0 GPM) OR LESS.
E2 Model Flow Data:
Max. Flow Rate: 2.0 gpm (7.6 L/min)
Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 6.6 L/MIN (1.75 GPM) OR LESS.
Inlet:
½” NPT Female
2
7
16
"
62mm
15
16
"
24mm
7
16
"
11mm
7
3
4
"
197mm
7
3
4
"
197mm
Thread Seal
Tape
(INCLUDED)
Adjustable
Wrench
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Periodic cleaning using a mild soap and warm water
will help keep your Showerhead's appearance in its
original condition.
For best results, dry immediately with a soft, clean
cloth. DO NOT USE harsh and/or abrasive cleaners.
In certain water conditions, mineral deposits may
form. To remove these deposits, it is recommended
that you soak the shower head in a solution of 2 parts
vinegar to 1 part water for one hour. Rinse thoroughly
with fresh water. Brush off any remaining mineral
deposits from the spray channels.
