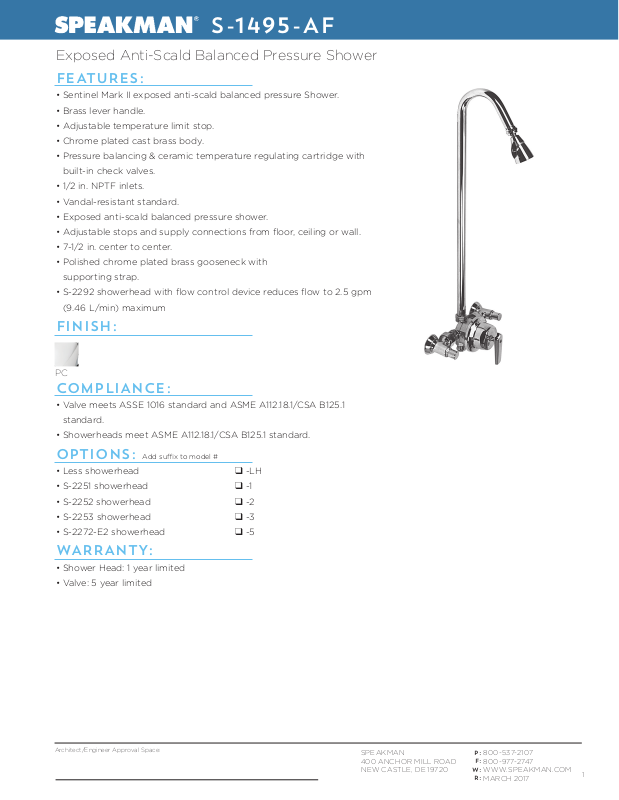

Page 1
S-1495 -AF

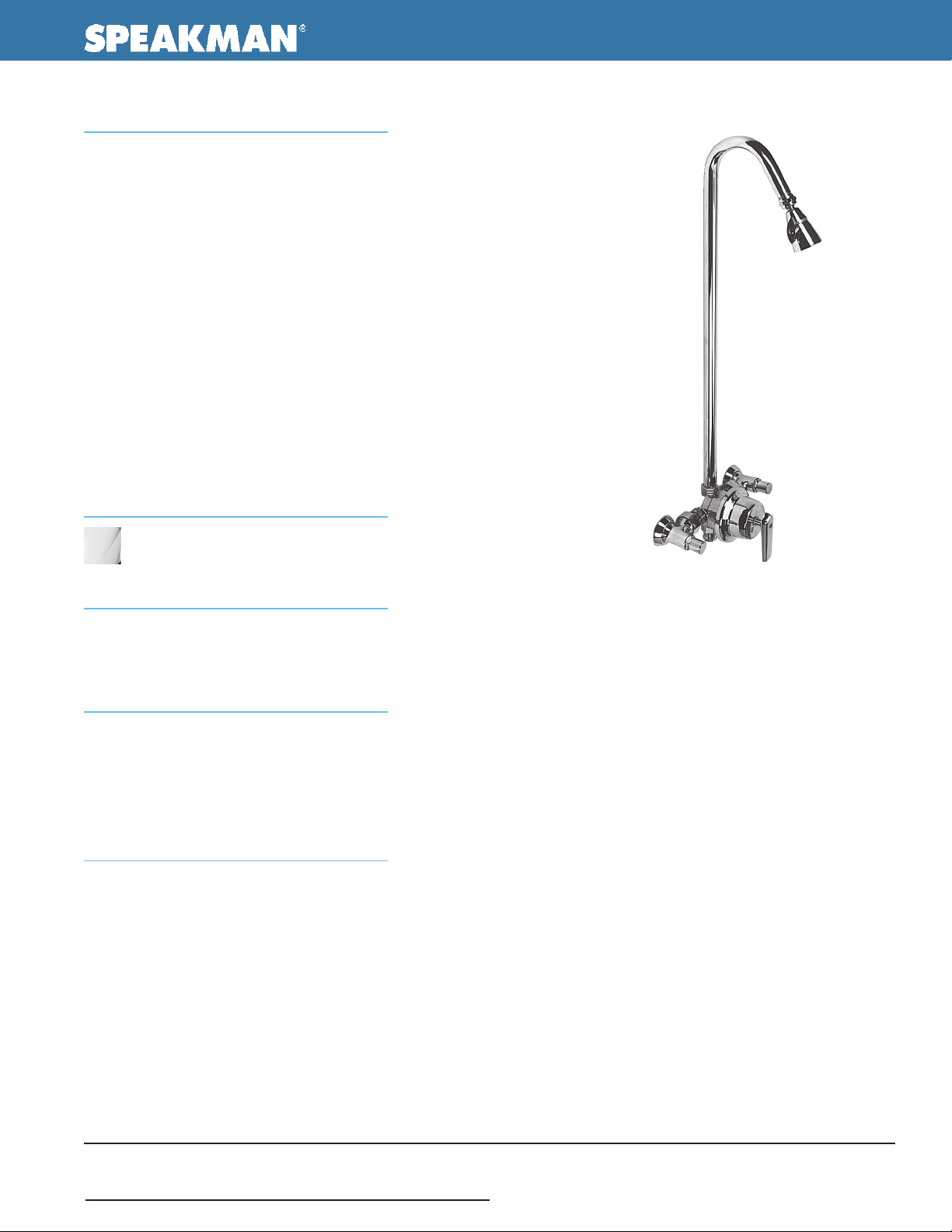

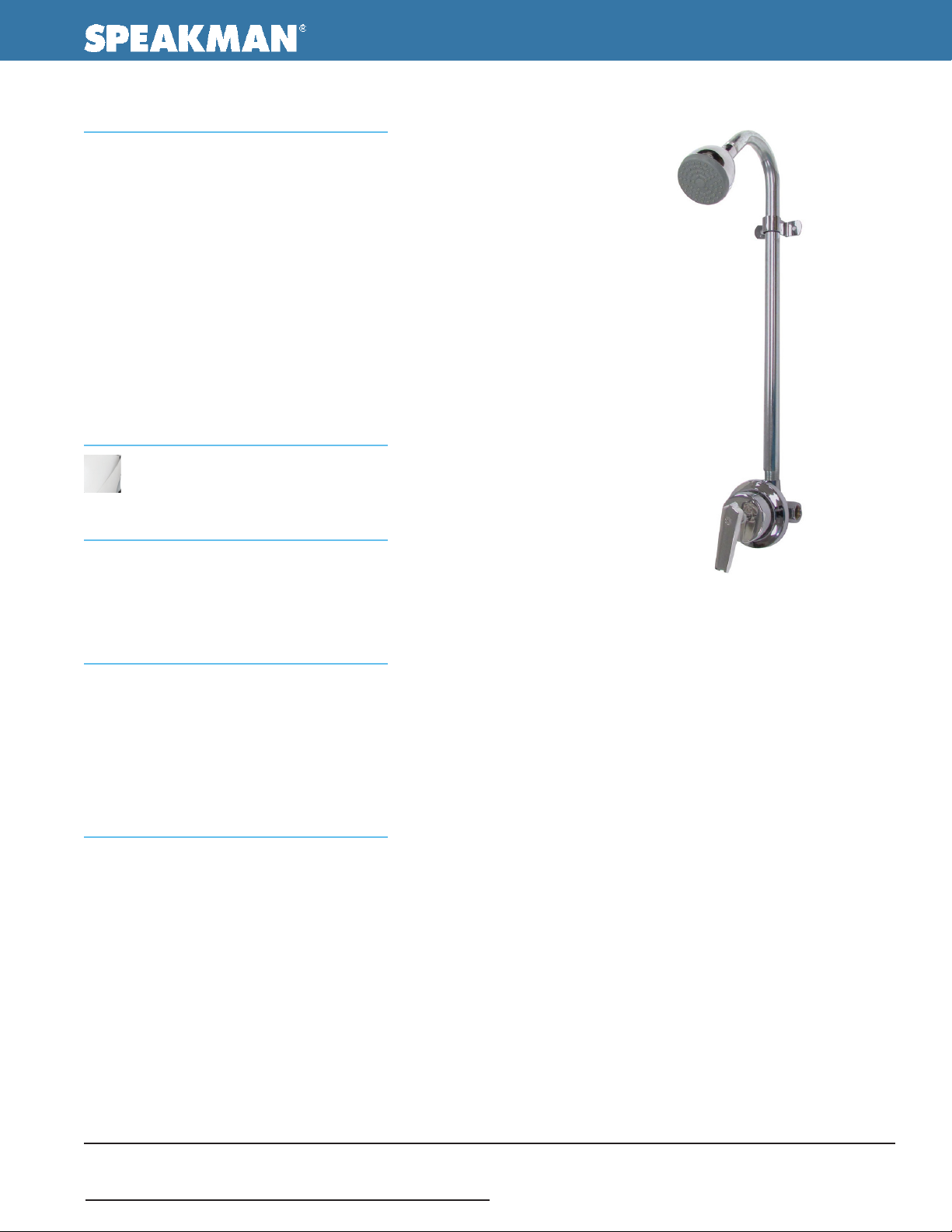

Exposed Anti-Scald Balanced Pressure Shower
FEATURES:
• Sentinel Mark II exposed anti-scald balanced pressure Shower.
• Brass lever handle.
• Adjustable temperature limit stop.
• Chrome plated cast brass body.
• Pressure balancing & ceramic temperature regulating cartridge with
built-in check valves.
• 1/2 in. NPTF inlets.
• Vandal-resistant standard.
• Exposed anti-scald balanced pressure shower.
• Adjustable stops and supply connections from floor, ceiling or wall.
• 7-1/2 in. center to center.
• Polished chrome plated brass gooseneck with
supporting strap.
• S-2292 showerhead with flow control device reduces flow to 2.5 gpm
(9.46 L/min) maximum
FINISH:
PC
COMPLIANCE:
• Valve meets ASSE 1016 standard and ASME A112.18.1/CSA B125.1
standard.
• Showerheads meet ASME A112.18.1/CSA B125.1 standard.
OPTIONS: Add sux to model #
• Less showerhead ❑ -LH
• S-2251 showerhead
• S-2252 showerhead
• S-2253 showerhead
• S-2272-E2 showerhead
❑ -1
❑ -2
❑ -3
❑ -5
WARRANTY:
• Shower Head: 1 year limited
• Valve: 5 year limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
MARCH 2017
1
Page 2

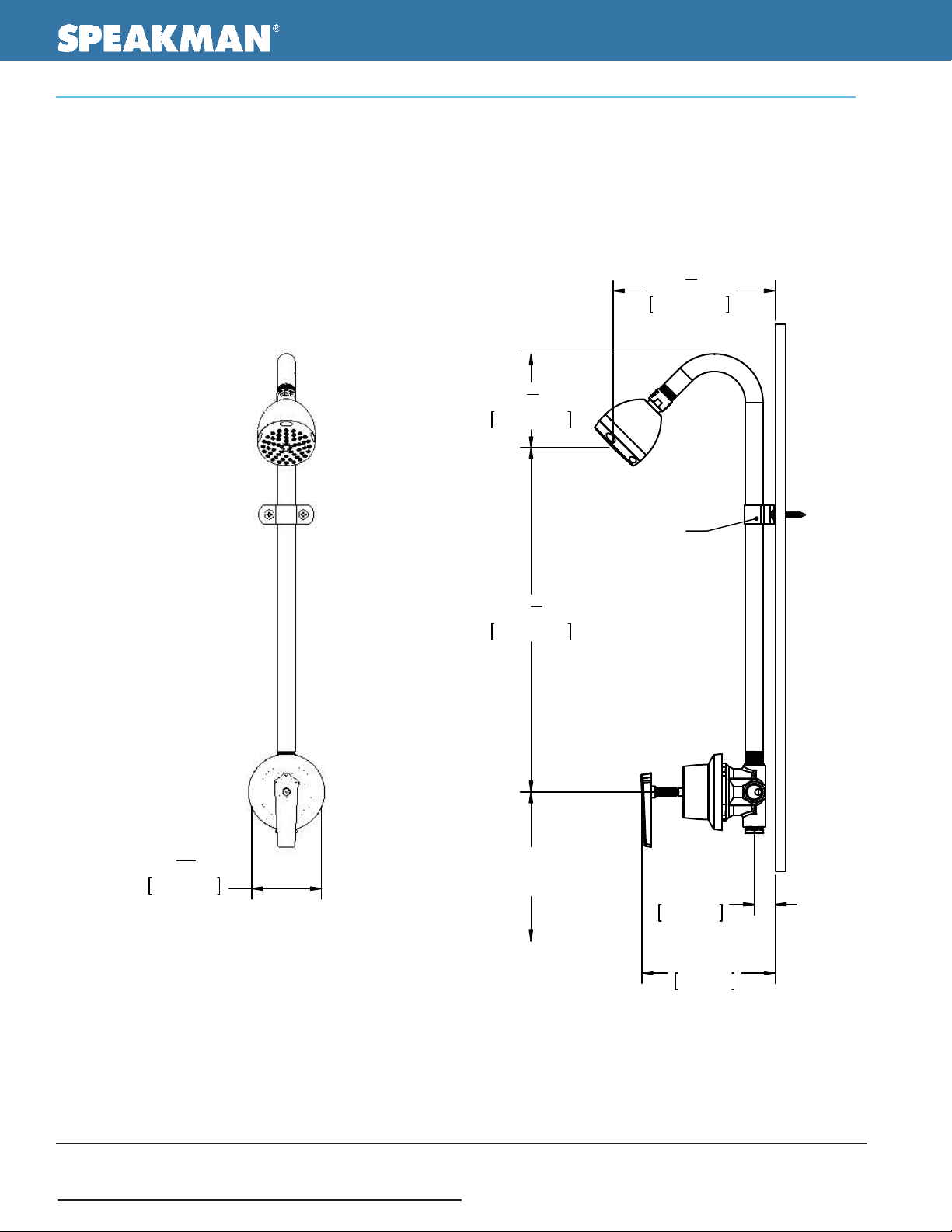

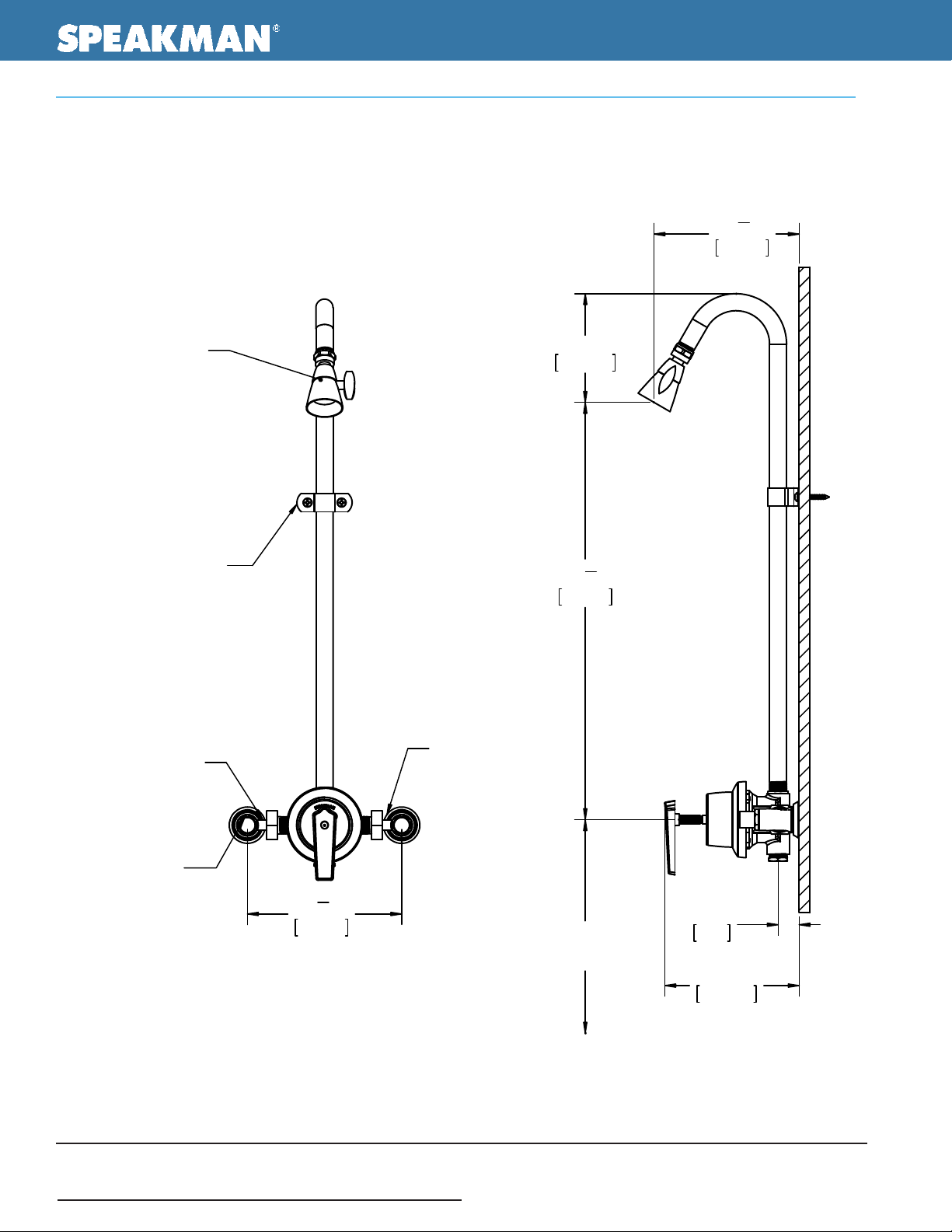

DIMENSIONS:
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice. 2. Unless otherwise
specied, all inlets and outlets are 1/2” female NPT threads.
1
"
7
4
184.15
S-2292
PIPE STRAP
W/ SCREWS
(LOCATION
OPTIONAL)
HOT INLET COLD INLET
UNION
UNION
6"
127mm
7
18
8
479.43
"
LOOSE KEY
ANGLE STOP
(2 PLACES)
Architect/Engineer Approval Space:
2
1
"
7
2
190.50
4'-6"
(1.37 meters)
TO FLOOR
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
1"
mm
5"
127mm
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
MARCH 2017
Page 3
S-1496 -AF
Exposed Anti-Scald Balanced Pressure Shower
FEATURES:
• Sentinel Mark II exposed anti-scald balanced pressure Shower.
• Brass lever handle.
• Adjustable temperature limit stop.
• Chrome plated cast brass body.
• Pressure balancing & ceramic temperature regulating cartridge with
built-in check valves.
• 1/2 in. NPTF inlets.
• Vandal-resistant standard.
• Exposed anti-scald balanced pressure shower.
• Galvanized gooseneck with supporting strap.
• S-2272-E2 showerhead with flow control device reduces flow to 2.0
gpm (7.57 L/min) maximum
FINISH:
PC
COMPLIANCE:
• Valve meets ASSE 1016, standard and ASME A112.18.1/CSA B125.1
standard.
• S-2252-E2 shower head meets ASME A112.18.1/CSA B125.1 standard and
WaterSense.
OPTIONS: Add sux to model #
• Less showerhead ❑ -LH
• S-2251 showerhead
• S-2252 showerhead
• S-2252 vandal-resistant showerhead
• S-2253 showerhead
• S-2292 showerhead
❑ -1
❑ -2
❑ -2VR
❑ -3
❑ -9
WARRANTY:
• Shower Head: 1 year limited
• Valve: 5 year limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
MARCH 2017
3
Page 4
DIMENSIONS:
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice. 2. Unless otherwise
specied, all inlets and outlets are 1/2” female copper sweat.
3
"
7
4
196.19mm
1
"
4
2
113.60mm
PIPE STRAP
W/SCREWS
(OPTIONAL
LOCATION
5
"
3
16
84.14mm
BODY WIDTH
AT INLETS
3
"
19
4
501.65mm
4'-6"
(1.37 METERS)
TO FLOOR
1"
25.4mm
5"
127mm
Architect/Engineer Approval Space:
4
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
MARCH 2017
