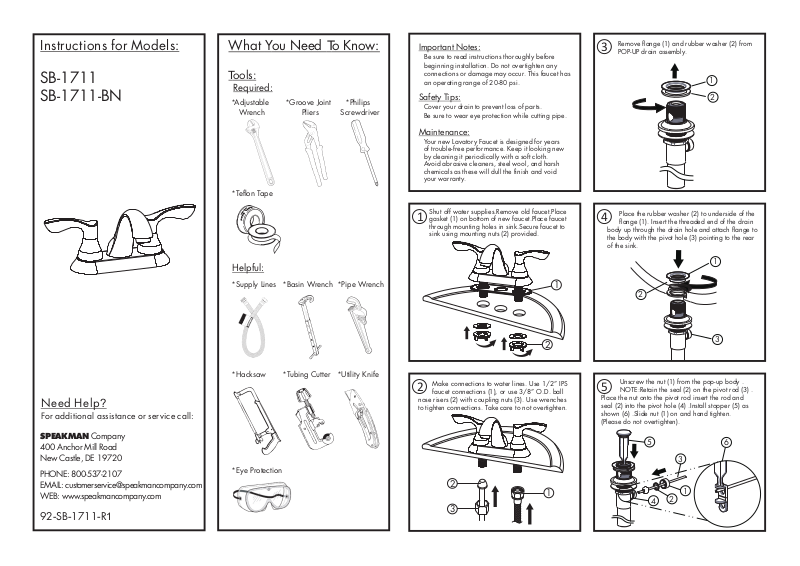

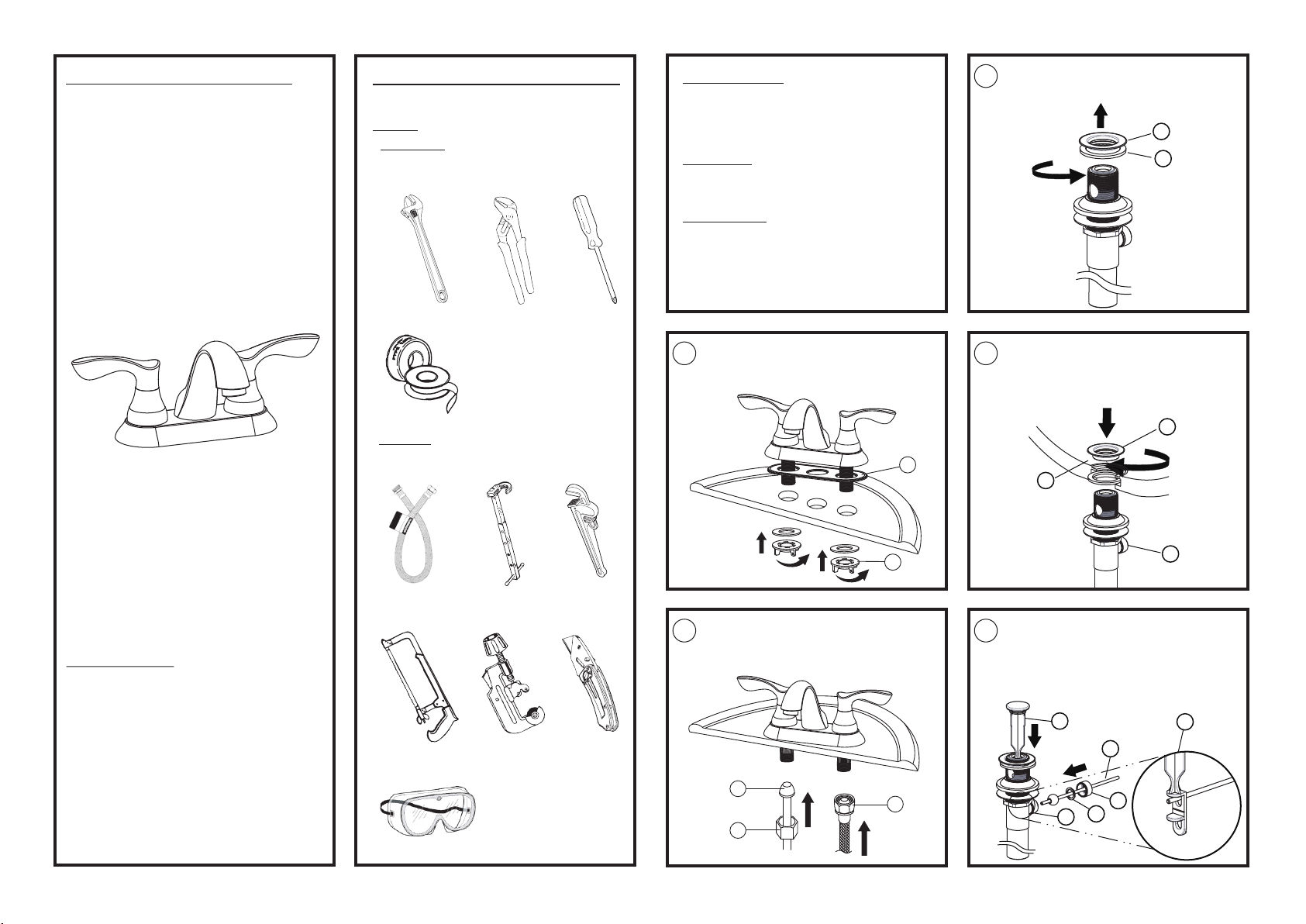

Page 1
Instructions for Models:
SB-1711
SB- -BN1711
What You Need To Know:
Tools:
Required:
*Adjustable
Wrench
*Teflon Tape
*Groove Joint
Pliers
*Philips
Screwdriver
Important Notes:
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur. This faucet has
an operating range of 20-80 psi.
Safety Tips:
Cover your drain to prevent loss of parts.
Be sure to wear eye protection while cutting pipe.
Maintenance:
Your new Lavatory Faucet is designed for years
of trouble-free performance. Keep it looking new
by cleaning it periodically with a soft cloth.
Avoid abrasive cleaners, steel wool, and harsh
chemicals as these will dull the finish and void
your warranty.
Remove flange (1) and rubber washer (2) from
3
POP-UP drain assembly.
1
2
Need Help?
For additional assistance or service call:
SPEAKMAN Company
400 Anchor Mill Road
New Castle, DE 19720
PHONE: 800-537-2107
EMAIL: [email protected]
WEB: www.speakmancompany.com
92-SB-1711-R1
Helpful:
*Supply Lines *Basin Wrench *Pipe Wrench
*Hacksaw *Tubing Cutter * Utility Knife
*Eye Protection
Shut off water supplies.Remove old faucet.Place
1
gasket (1) on bottom of new faucet.Place faucet
through mounting holes in sink.Secure faucet to
sink using mounting nuts (2) provided.
1
2
Make connections to water lines. Use 1/2” IPS
2
faucet connections (1), or use 3/8” O.D. ball
nose risers (2) with coupling nuts (3). Use wrenches
to tighten connections. Take care to not overtighten.
2
1
3
Place the rubber washer (2) to underside of the
4
flange (1). Insert the threaded end of the drain
body up through the drain hole and attach flange to
the body with the pivot hole (3) pointing to the rear
of the sink.
1
2
3
Unscrew the nut (1) from the pop-up body .
5
NOTE:Retain the seal (2) on the pivot rod (3) .
Place the nut onto the pivot rod insert the rod and
seal (2) into the pivot hole (4) .Install stopper (5) as
shown (6) .Slide nut (1) on and hand tighten.
(Please do not overtighten).
5
3
1
2
4
6

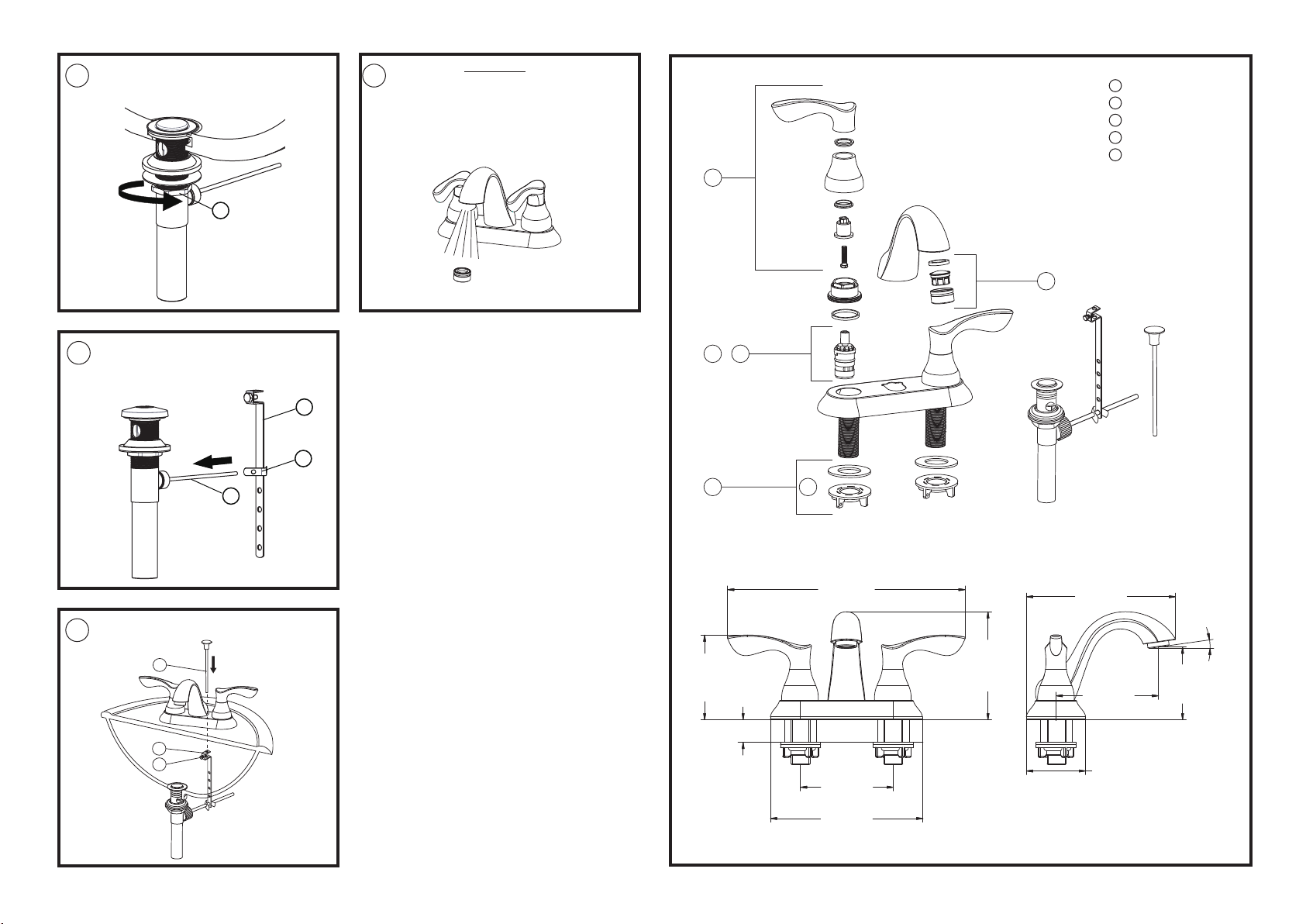

Page 2
Tighten lock nut (1) by rotating counterclockwise
6 9
until the pop-up drain assembly is secure.
Rubber washer should be on top of sink.
After installation is completed, remove aerator.
Turn on water supply and allow both hot and
cold water to run for at least one minute each to remove
the debris. While water is running ,check for leaks.
Replace aerator.
1
IMPORTANT:
1
RPG04-0414 (-BN)
2
RPG05-1916
3
RPG05-1916
4
RPG45-0060
5
RPG05-0915
1
5
Place one end of spring clip (1) on the end of
7
pivot rod (2) . Insert rod through hole in
lift rod strap (3) .Secure with spring clip (1) .
2
Insert lift rod (1) into strap (2) and tighten screw(3).
8
1
2
3
2
3
/
3
1
4
3.66”
[93mm ]
MAX 0.97”
[25mm]
2X
10.27”
[261m m]
4.02”
[102m m]
6.60”
[168m m]
4.67”
[119 mm ]
6.45”
[164m m]
4.44”
[113 mm ]
2.56”
[65mm ]
3.14”
[80mm ]
8°
