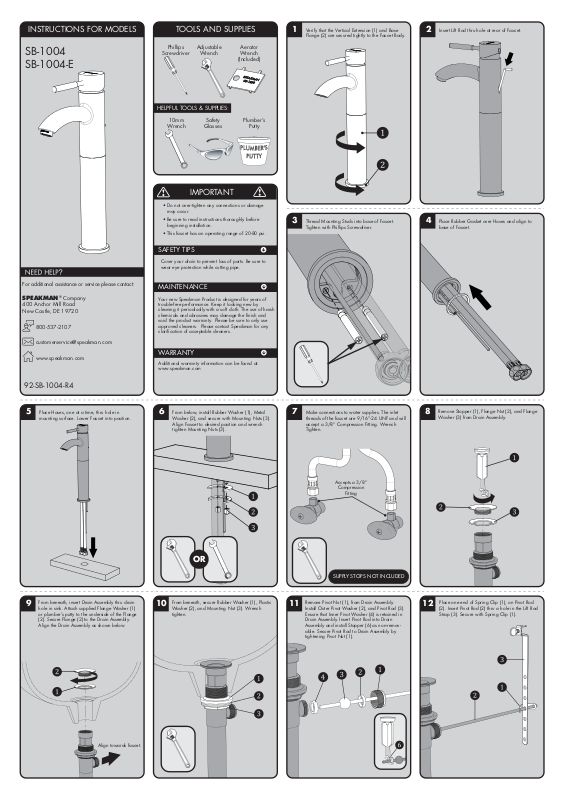

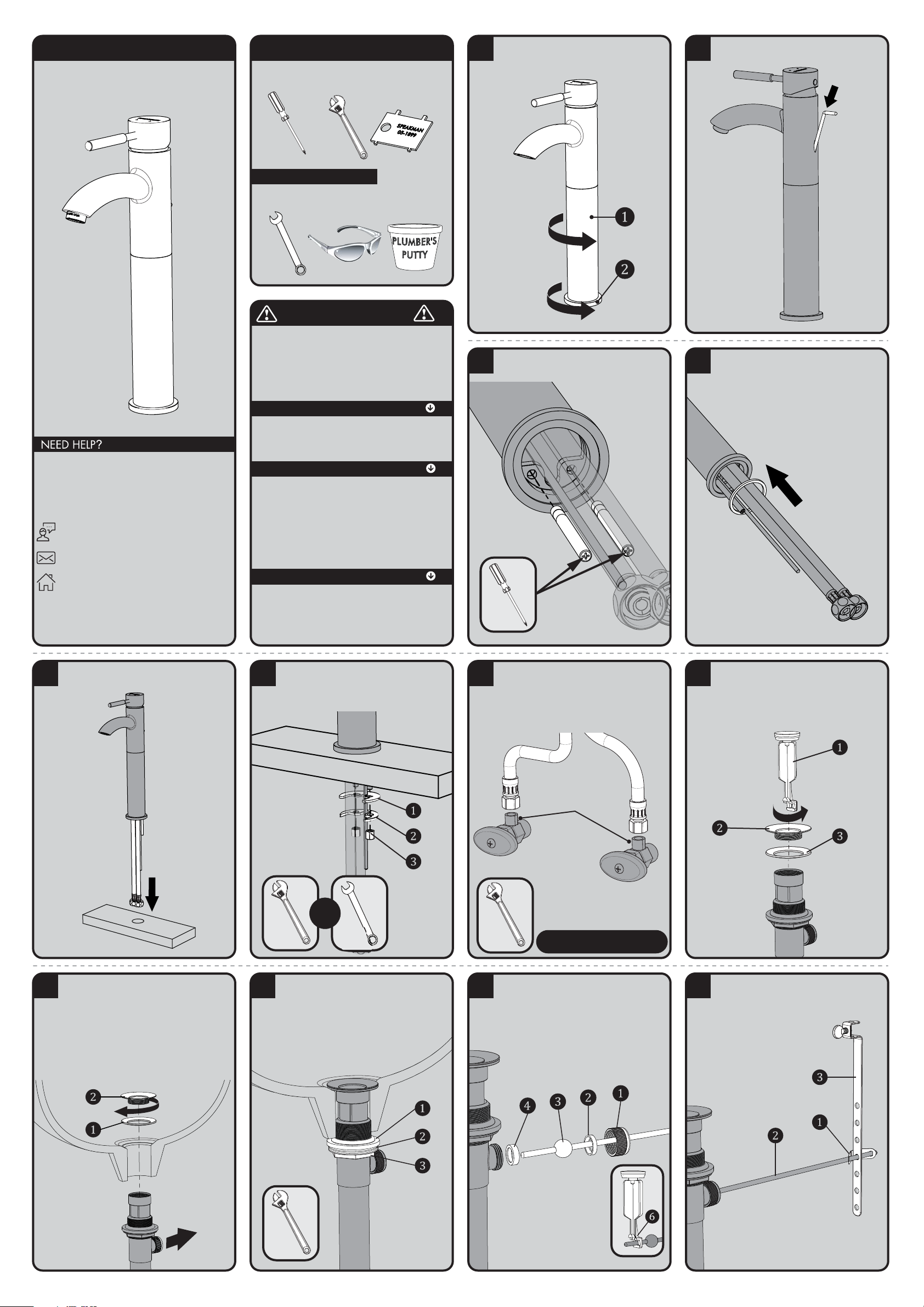

INSTRUCTIONS FOR MODELS
92-SB-1004-R4
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
SB-1004
SB-1004-E
HELPFUL TOOLS & SUPPLIES:
TOOLS AND SUPPLIES
Phillips
Screwdriver
Adjustable
Wrench
Aerator
Wrench
(Included)
10mm
Wrench
Safety
Glasses
Plumber’s
Putty
Additional warranty information can be found at:
www.speakman.com
WARRANTY
MAINTENANCE
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
SAFETY TIPS
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Do not over-tighten any connections or damage
may occur.
• This faucet has an operating range of 20-80 psi.
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives may damage the finish and
void the product warranty. Please be sure to only use
approved cleaners. Please contact Speakman for any
clarification of acceptable cleaners.
1
Verify that the Vertical Extension (1) and Base
Flange (2) are secured tightly to the Faucet Body.
2
Insert Lift Rod thru hole at rear of Faucet.
3
Thread Mounting Studs into base of Faucet.
Tighten with Phillips Screwdriver.
4
Place Rubber Gasket over Hoses and align to
base of Faucet.
5
Place Hoses, one at a time, thru hole in
mounting surface. Lower Faucet into position.
6
From below, install Rubber Washer (1), Metal
Washer (2), and secure with Mounting Nuts (3).
Align Faucet to desired position and wrench
tighten Mounting Nuts (3).
OR
7
Make connections to water supplies. The inlet
threads of the faucet are 9/16”-24 UNF and will
accept a 3/8” Compression Fitting. Wrench
Tighten.
Accepts a 3/8”
Compression
Fitting
SUPPLY STOPS NOT INCLUDED
8
Remove Stopper (1), Flange Nut (2), and Flange
Washer (3) from Drain Assembly.
9
From beneath, insert Drain Assembly thru drain
hole in sink. Attach supplied Flange Washer (1)
or plumber’s putty to the underside of the Flange
(2). Secure Flange (2) to the Drain Assembly.
Align the Drain Assembly as shown below.
Align towards faucet.
10
From beneath, secure Rubber Washer (1), Plastic
Washer (2), and Mounting Nut (3). Wrench
tighten.
11
Remove Pivot Nut (1), from Drain Assembly.
Install Outer Pivot Washer (2), and Pivot Rod (3).
Ensure that Inner Pivot Washer (4) is retained in
Drain Assembly. Insert Pivot Rod into Drain
Assembly and install Stopper (6) as non-removable. Secure Pivot Rod to Drain Assembly by
tightening Pivot Nut (1).
12
Place one end of Spring Clip (1), on Pivot Rod
(2). Insert Pivot Rod (2) thru a hole in the Lift Rod
Strap (3). Secure with Spring Clip (1).
Page 2

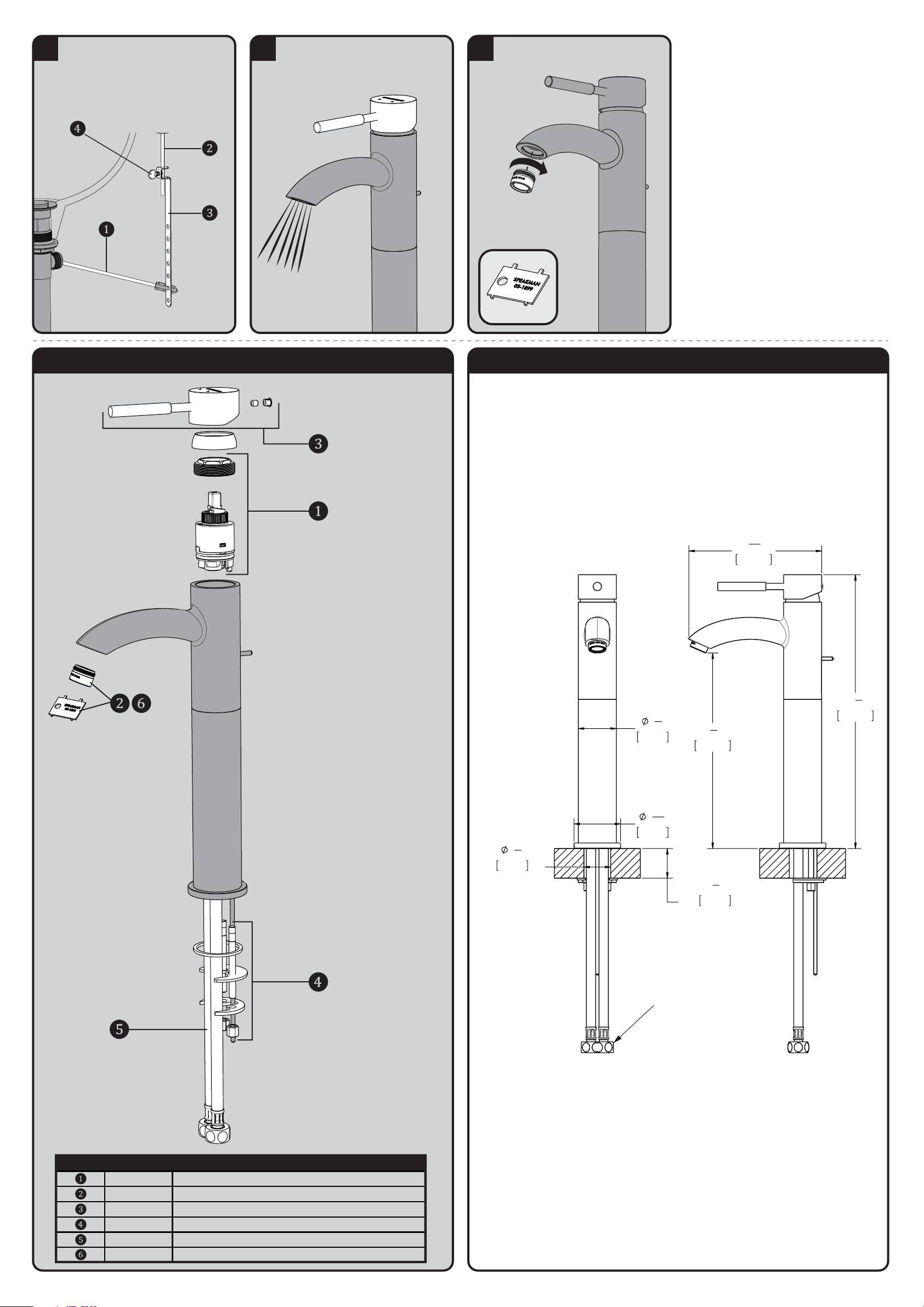

13
Place Drain into the open position by pressing
downward on the Pivot Rod (1). Insert Lift Rod
(2) into Strap (3). Adjust height of Lift Rod (2),
and tighten Thumb Screw (4).
14
Turn on water supplies. Activate faucet and flush
both HOT and COLD water for 1 minute.
15
Turn OFF faucet and install Aerator with
supplied Aerator Wrench.
SB-1004 REPAIR PARTS
ITEM NO. PART NO. DESCRIPTION
RPG05-0986 CARTRIDGE AND RETAINING NUT
RPG05-0989 1.5 GPM VANDAL RESISTANT AERATOR ASSEMBLY
RPG04-0442 LEVER HANDLE, SCREW, AND INDEX
RPG05-0985 MOUNTING HARDWARE GROUP
RPG63-0099 24” LONG HOSES (2)
RPG05-40005 1.2 GPM VANDAL RESISTANT AERATOR ASSEMBLY
SB-1004 ROUGH-IN DIAGRAM
ALL DIMENSIONS ARE IN INCHES (MILLIMETERS) UNLESS
OTHERWISE SPECIFIED. DIMENSIONS SUBJECT TO
CHANGE WITHOUT NOTICE.
3
1
4
45mm
3
6
"
16
157mm
3
12
"
4
"
9
231mm
1
"
8
324mm
1
1
"
4
32mm
MINIMUM
HOLE DIAMETER
3
2
"
16
55mm
3
1
"
8
35mm
MAXIMUM DECK
THICKNESS
3/8 COMPRESSION FITTINGS
(9/16-24 THREAD)
