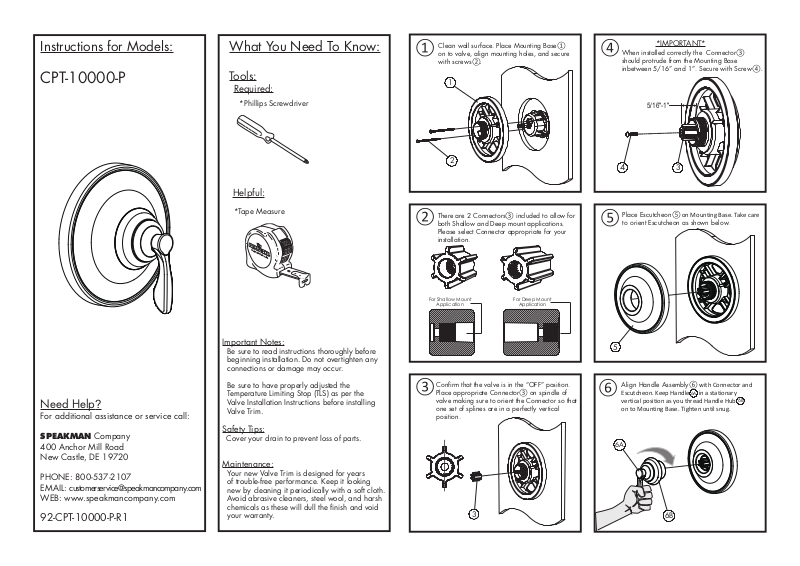

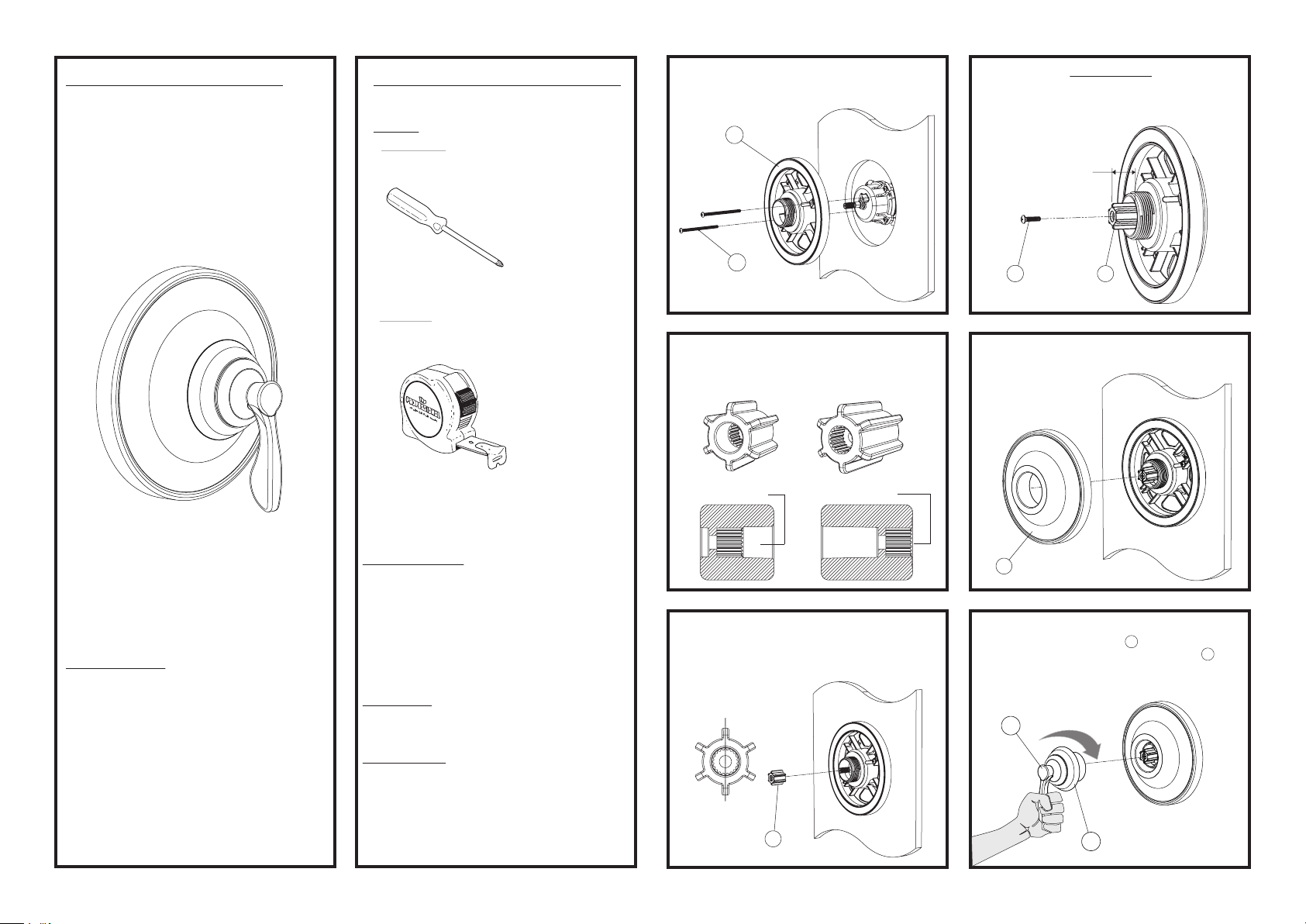

Instructions for Models:
CPT-10000-P
What You Need To Know:
Tools:
Required:
*Phillips Screwdriver
Clean wall surface. Place Mounting Base①
①
on to valve, align mounting holes, and secure
with screws②.
1
④
When installed correctly the Connector③
should protrude from the Mounting Base
inbetween 5/16” and 1”. Secure with Screw④.
*IMPORTANT*
5/16"-1"
Need Help?
For additional assistance or service call:
SPEAKMAN Company
400 Anchor Mill Road
New Castle, DE 19720
PHONE: 800-537-2107
EMAIL: [email protected]
WEB: www.speakmancompany.com
92-CPT-10000-P-R1
Helpful:
*Tape Measure
Important Notes:
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
Be sure to have properly adjusted the
Temperature Limiting Stop (TLS) as per the
Valve Installation Instructions before installing
Valve Trim.
Safety Tips:
Cover your drain to prevent loss of parts.
Maintenance:
Your new Valve Trim is designed for years
of trouble-free performance. Keep it looking
new by cleaning it periodically with a soft cloth.
Avoid abrasive cleaners, steel wool, and harsh
chemicals as these will dull the finish and void
your warranty.
2
There are 2 Connectors③ included to allow for
②
both Shallow and Deep mount applications.
Please select Connector appropriate for your
installation.
For Shallow Mount
Application
Confirm that the valve is in the “OFF” position.
③
Place appropriate Connector③ on spindle of
valve making sure to orient the Connector so that
one set of splines are in a perfectly vertical
position.
3
For Deep Mount
Application
4
Place Escutcheon⑤ on Mounting Base. Take care
⑤
to orient Escutcheon as shown below.
5
Align Handle Assembly⑥ with Connector and
⑥
Escutcheon. Keep Handle in a stationary
vertical position as you thread Handle Hub
on to Mounting Base. Tighten until snug.
6A
3
6A
6B
6B
Page 2

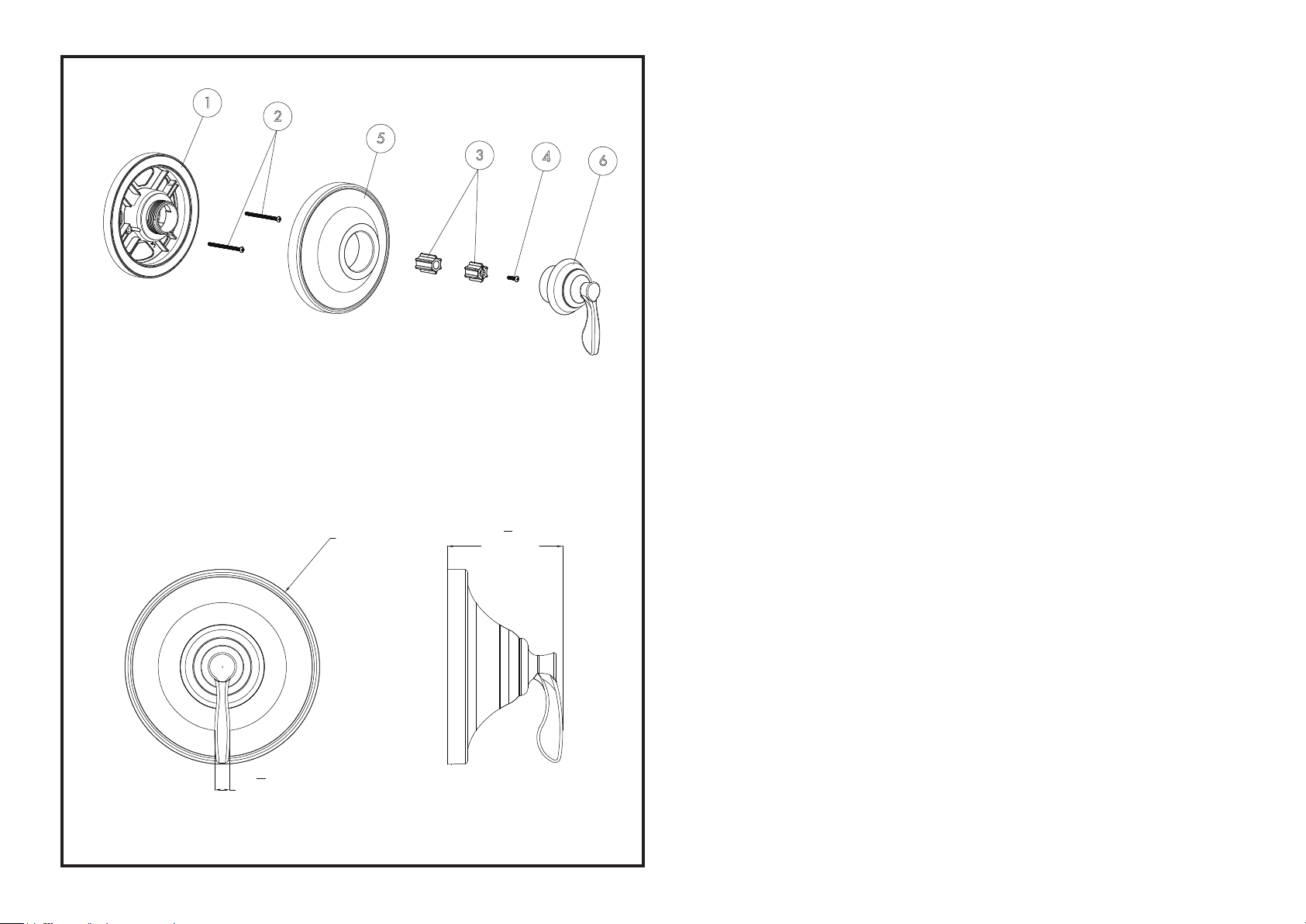

1
2
RPG05-0874 ②③④
RPG10-0107-(PC,BN)
⑤
⑥
RPG04-0420-(PC,BN)
5
3
4
6
1
''
2
[14mm]
Ø7''
[Ø178mm]
1
''
4
8
[105mm]
