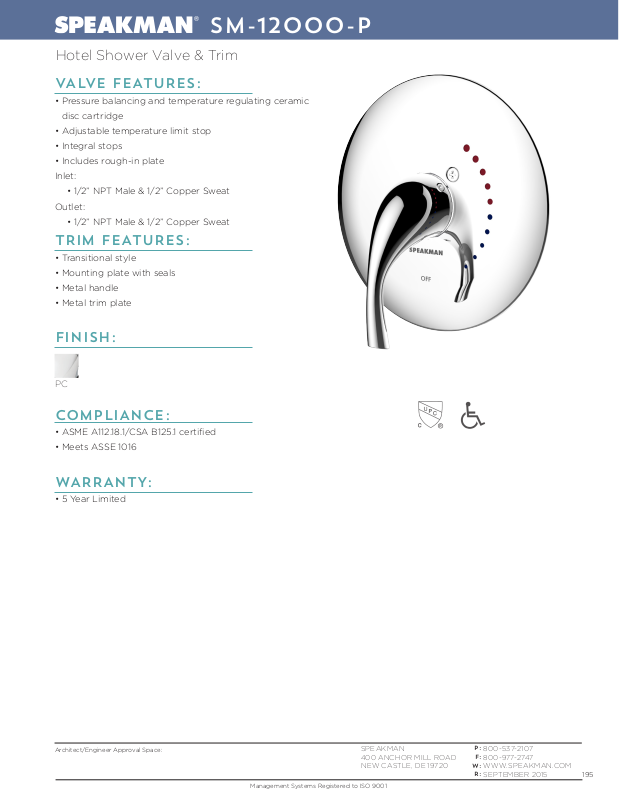

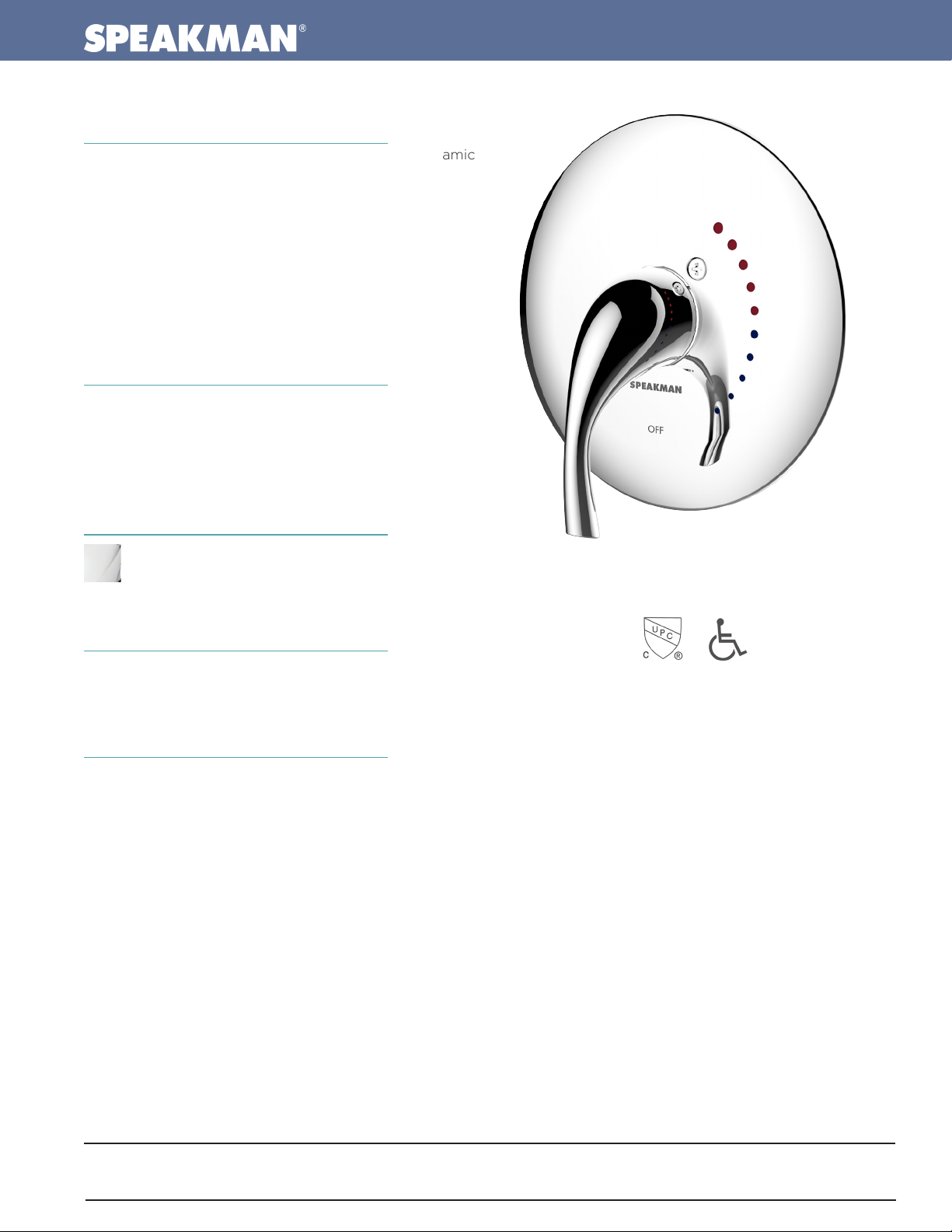

SM-12000-P
Hotel Shower Valve & Trim
VALVE FEATURES:
• Pressure balancing and temperature regulating ceramic
disc cartridge
• Adjustable temperature limit stop
• Integral stops
• Includes rough-in plate
Inlet:
• 1/2” NPT Male & 1/2” Copper Sweat
Outlet:
• 1/2” NPT Male & 1/2” Copper Sweat
TRIM FEATURES:
• Transitional style
• Mounting plate with seals
• Metal handle
• Metal trim plate
FINISH:
PC
COMPLIANCE:
• ASME A112.18.1/CSA B125.1 certified
• Meets ASSE 1016
WARRANTY:
• 5 Year Limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C AST LE, DE 1972 0
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -9 77 -274 7
W:
WWW.SPEAKMAN.COM
R:
SEPTEMBER 2015
195
Page 2

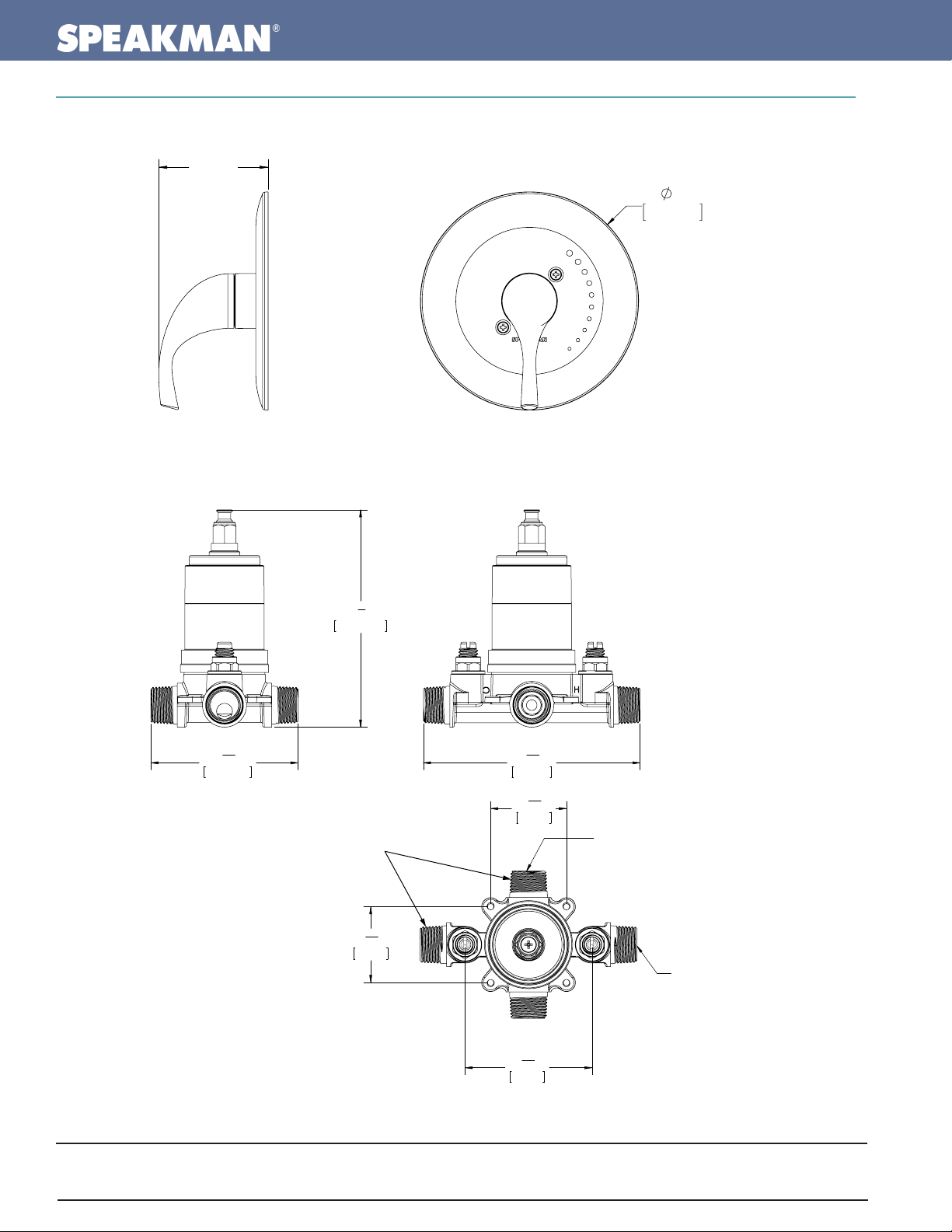

DIMENSIONS:
3” - 4”
[76.2mm - 101.6 mm]
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice. 2. Unless otherwise
specied, all inlets and outlets are 1/2” female copper sweat. 3. For ADA mounting locations, consult ADAAG, ANSI A117.1, or static regulations.
Contractor pack valves & trim kits available.
7"
178mm
3
83.50mm
7
"
4
8
123.30mm
5
"
16
½-14 NPT
THREADED
INLETS AND OUTLETS
11
"
1
16
43mm
123mm
2
72mm
13
4
16
11
1
16
43mm
13
"
16
"
"
1/2" COPPER PIPE
CONNECTION OUTLETS
1/2" COPPER PIPE
CONNECTION INLETS
