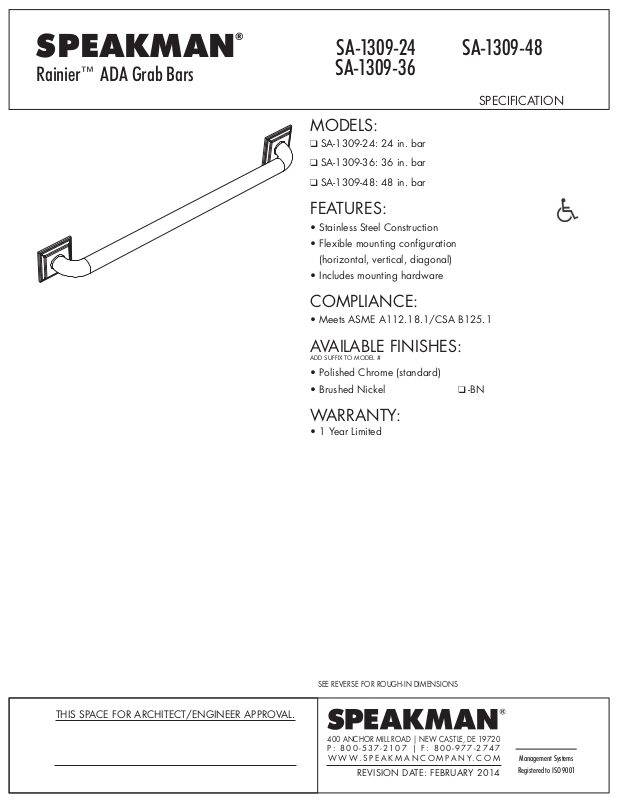

Page 1
SPEAKMAN
®
SA-1309-24
SA-1309-48
Rainier™ ADA Grab Bars
SA-1309-36
SPECIFICATION
MODELS:
❑ SA-1309-24: 24 in. bar
❑ SA-1309-36: 36 in. bar
❑ SA-1309-48: 48 in. bar
FEATURES:
• Stainless Steel Construction
• Flexible mounting configuration
(horizontal, vertical, diagonal)
• Includes mounting hardware
COMPLIANCE:
• Meets ASME A112.18.1/CSA B125.1
AVAILABLE FINISHES:
ADD SUFFIX TO MODEL #
• Polished Chrome (standard)
• Brushed Nickel ❑ -BN
WARRANTY:
• 1 Year Limited
SEE REVERSE FOR ROUGH-IN DIMENSIONS
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: FEBRUARY 2014
Management Systems
Registered to ISO 9001
Page 2
®
SPEAKMAN
Rainier™ ADA Grab Bars SA-1309-24, SA-1309-36, SA-1309-48
1
1
"
4
32mm
1
3
"
8
78mm
SPECIFICATION
2
55mm
C
1
"
8
3
2
"
4
71mm
D
DIMENSION “C”
SA-1309-24 27-1/8” (687mm)
SA-1309-36 39-1/8“ (992mm)
SA-1309-48 51-18” (1297mm)
DIMENSION “D”
SA-1309-24 24” (610mm)
SA-1309-36 36” (914mm)
SA-1309-48 48” (1219mm)
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to
change without notice.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: FEBRUARY 2014
Management Systems
Registered to ISO 9001
