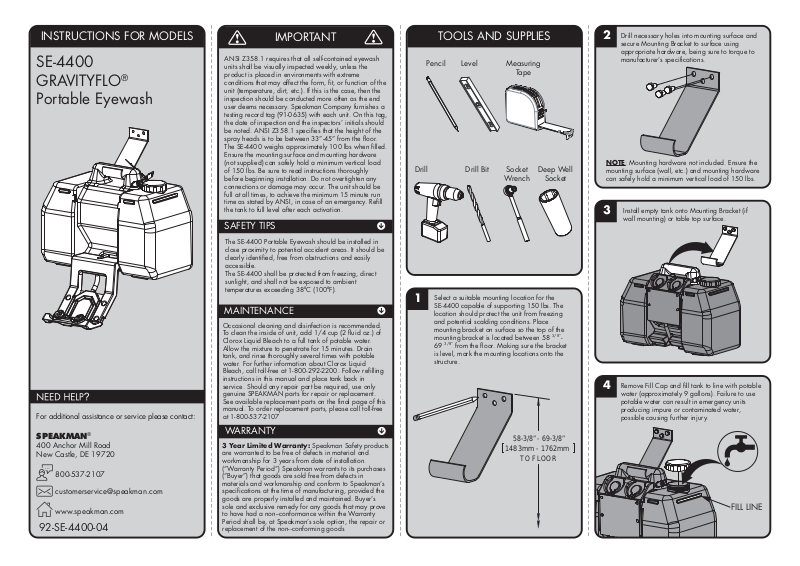

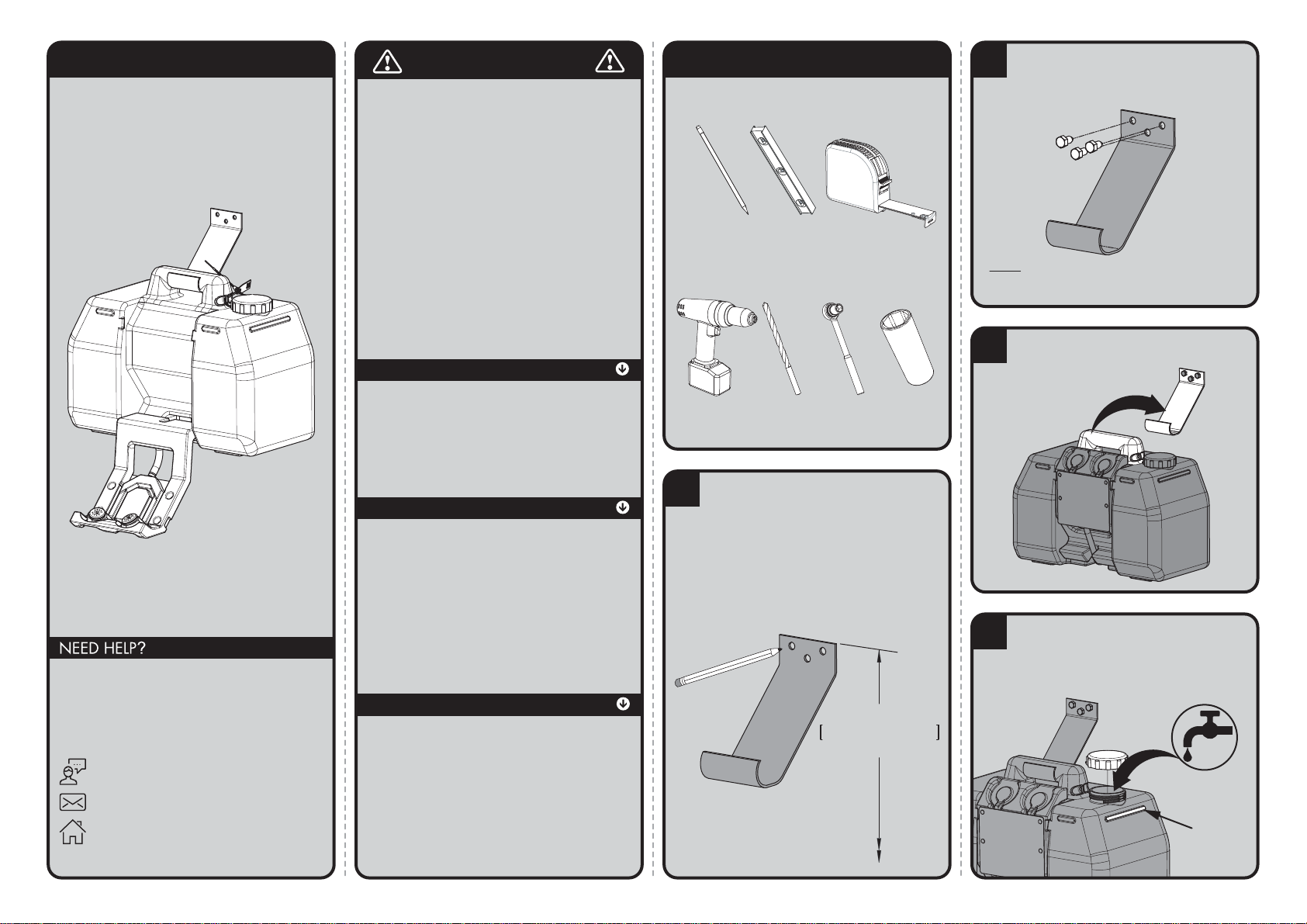

INSTRUCTIONS FOR MODELS

SE-4400

TOOLS AND SUPPLIES

IMPORTANT

Select a suitable mounting location for the SE-4400 capable of supporting 150 lbs. The location should protect the unit from freezing and potential scalding conditions. Place mounting bracket on surface so the top of the mounting bracket is located between 58

3/8”

from the floor. Making sure the bracket is level, mark the mounting locations onto the structure.

58-3/8” - 69-3/8”

1483mm - 1762mm

TO FLOOR

Drill necessary holes into mounting surface and secure Mounting Bracket to surface using appropriate hardware, being sure to torque to manufacturer’s specifications.

NOTE: Mounting hardware not included. Ensure the mounting surface (wall, etc.) and mounting hardware can safely hold a minimum vertical load of 150 lbs.

Install empty tank onto Mounting Bracket (if wall mounting) or table top surface.

Remove Fill Cap and fill tank to line with potable water (approximately 9 gallons). Failure to use potable water can result in emergency units producing impure or contaminated water, possible causing further injury.

FILL LINE

GRAVITYFLO

Portable Eyewash

For additional assistance or service please contact:

SPEAKMAN

400 Anchor Mill Road

New Castle, DE 19720

800-537-2107

[email protected]

www.speakman.com

92-SE-4400-04

ANSI Z358.1 requires that all self-contained eyewash units shall be visually inspected weekly, unless the product is placed in environments with extreme conditions that may affect the form, fit, or function of the unit (temperature, dirt, etc.). If this is the case, then the inspection should be conducted more often as the end user deems necessary. Speakman Company furnishes a testing record tag (91-0635) with each unit. On this tag, the date of inspection and the inspectors’ initials should be noted. ANSI Z358.1 specifies that the height of the spray heads is to be between 33”-45” from the floor. The SE-4400 weighs approximately 100 lbs when filled. Ensure the mounting surface and mounting hardware (not supplied) can safely hold a minimum vertical load of 150 lbs. Be sure to read instructions thoroughly before beginning installation. Do not overtighten any connections or damage may occur. The unit should be full at all times, to achieve the minimum 15 minute run time as stated by ANSI, in case of an emergency. Refill the tank to full level after each activation.

Pencil Level Measuring

Tape

Drill Drill Bit Socket

Wrench

Deep Well

Socket

SAFETY TIPS

The SE-4400 Portable Eyewash should be installed in close proximity to potential accident areas. It should be clearly identified, free from obstructions and easily accessible. The SE-4400 shall be protected from freezing, direct sunlight, and shall not be exposed to ambient temperatures exceeding 380C (1000F).

MAINTENANCE

Occasional cleaning and disinfection is recommended. To clean the inside of unit, add 1/4 cup (2 fluid oz.) of Clorox Liquid Bleach to a full tank of potable water. Allow the mixture to penetrate for 15 minutes. Drain tank, and rinse thoroughly several times with potable water. For further information about Clorox Liquid Bleach, call toll-free at 1-800-292-2200. Follow refilling instructions in this manual and place tank back in service. Should any repair part be required, use only genuine SPEAKMAN parts for repair or replacement. See available replacement parts on the final page of this manual. To order replacement parts, please call toll-free at 1-800-537-2107

WARRANTY

3 Year Limited Warranty: Speakman Safety products are warranted to be free of defects in material and workmanship for 3 years from date of installation. (“Warranty Period”) Speakman warrants to its purchases (“Buyer”) that goods are sold free from defects in materials and workmanship and conform to Speakman’s specifications at the time of manufacturing, provided the goods are properly installed and maintained. Buyer’s sole and exclusive remedy for any goods that may prove to have had a non-‐conformance within the Warranty Period shall be, at Speakman’s sole option, the repair or replacement of the non-‐conforming goods

Page 2

IMPORTANT

Self-contained eyewash equipment shall be visually

Reinstall Fill Cap and secure it with the tamper-evident Seal Tie. Secure the included Maintenance Tag to the tank in a location where it can be easily checked.

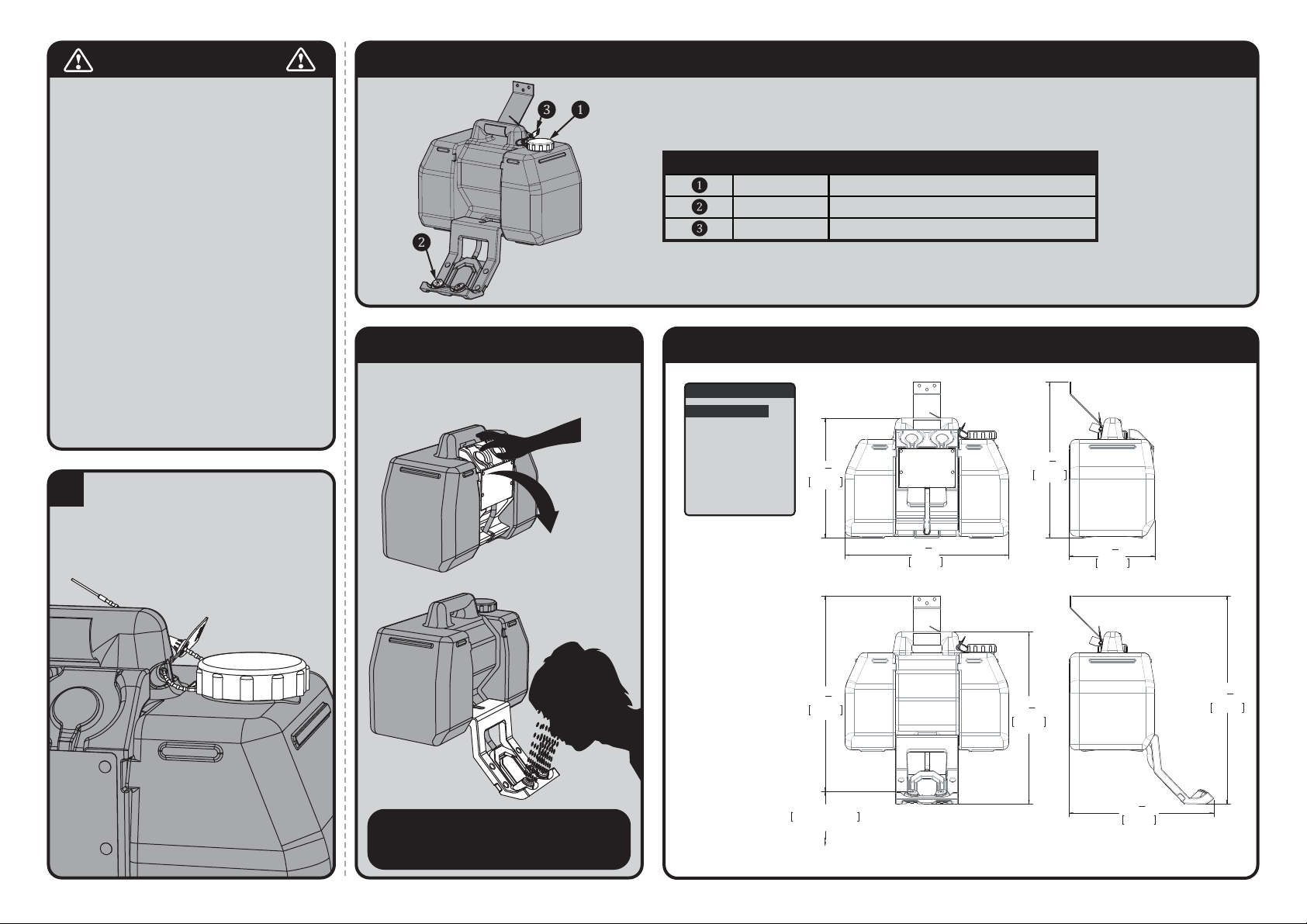

SE-4400 REPAIR PARTS

SPEAKMAN

ITEM NO. PART NO. DESCRIPTION

RPG07-0021 REPLACEMENT FILL CAP - QTY: 1

RPG38-0434 REPLACEMENT SPRAY OUTLET - QTY: 1

RPG05-0935 TAMPER EVIDENT SEAL TIE - QTY: 6

SE-4400 ROUGH IN DIAGRAM

SPEAKMAN

3 4

477mm

1 8

688mm

3 8

569mm

3 8

646mm

33" - 45”

838mm - 1143mm

TO FLOOR

540mm

1 2

395mm

1 4

514mm

1 8

283mm

DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.

NOTES:

COMPLIANCE:

ANSI Z358.1

ACTIVATION

To activate the flow of water, rotate activation tray downward.

FLOW DATA:

Run Time (Full Tank): 15 minutes (minimum)

Flow Rate: .4 gpm (1.5 L/min) (minimum)

checked frequently to determine if flushing fluid needs to be changed or supplemented. Frequency of these inspections is dependent on environment conditions, but at a minimum weekly. Failure to conduct visual checks could lead to further injury.

Customer shall take precautions to help prevent the growth of potentially harmful bacteria in eyewash tanks. Either of the following procedures is recommended.

Thoroughly cleanse tank at least once every month. See “Maintenance” Section for further information of cleaning unit.

Procedure 1: Use suitable Bacteriostatic

preservative to help prevent growth of bacteria in eyewash tank. Eyewash tank should be drained, flushed and refilled with clean potable water and Bacteriostatic preservative added as directed by the preservative’s manufacturer.

Procedure 2: Drain, flush and refill units with clean potable water at least once every week unless site conditions require more frequent changing.
