Page 1

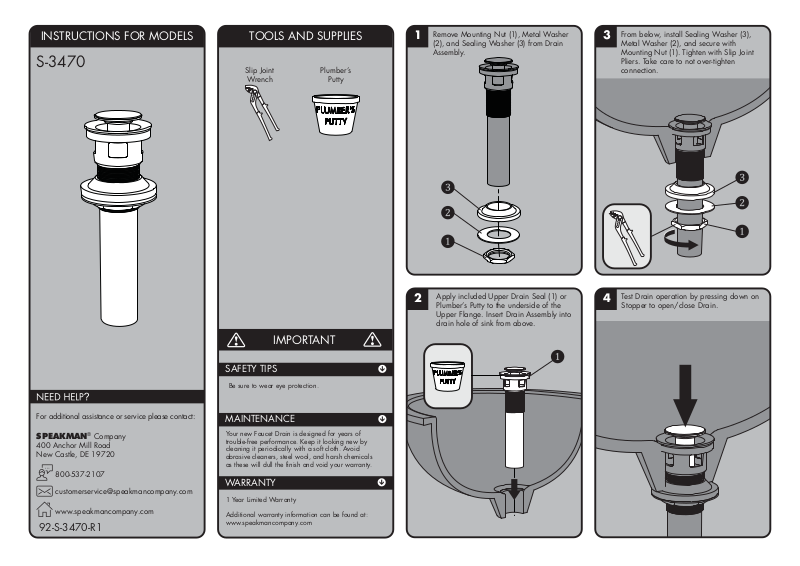

INSTRUCTIONS FOR MODELS
S-3470
TOOLS AND SUPPLIES
1

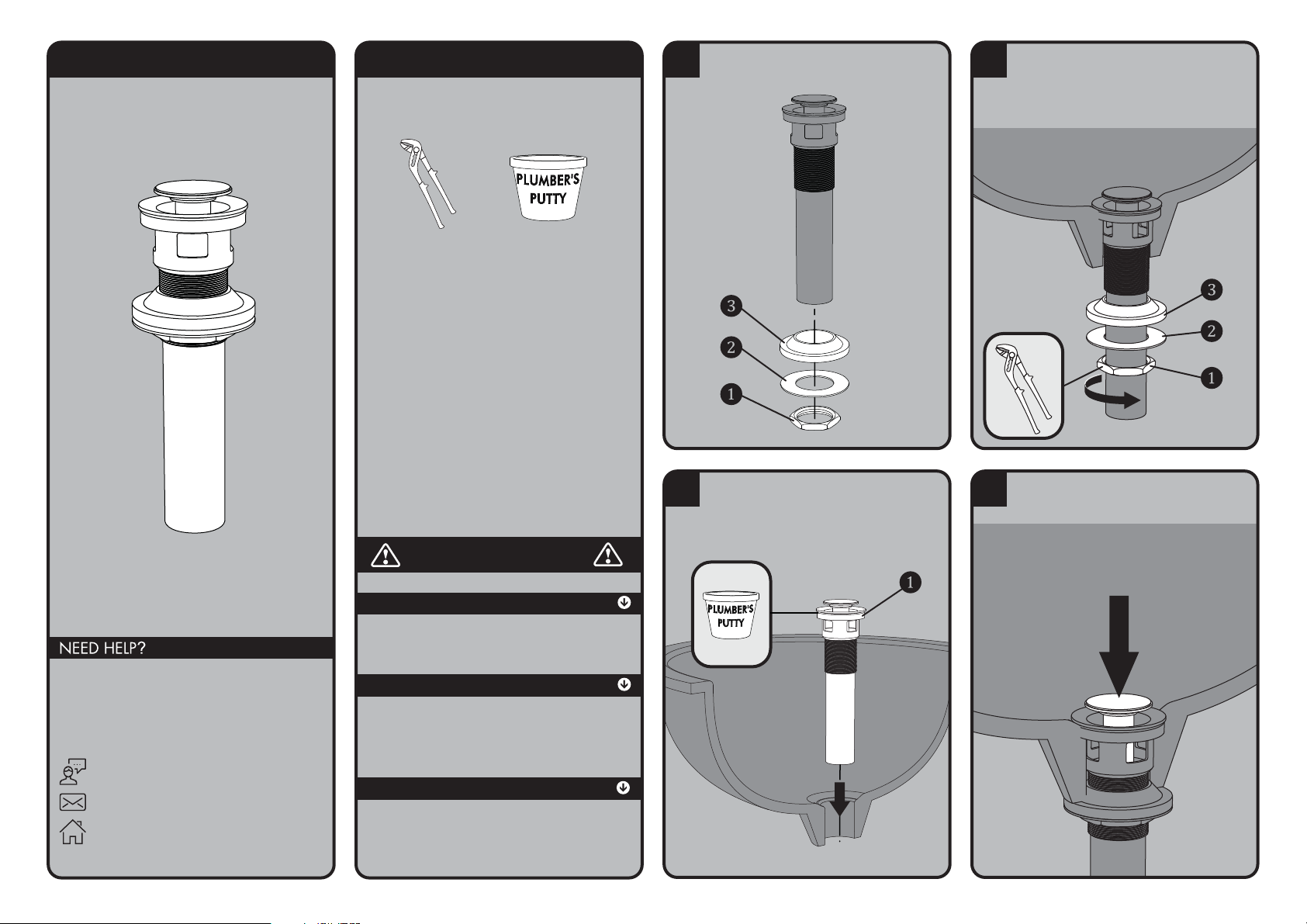

Remove Mounting Nut (1), Metal Washer
(2), and Sealing Washer (3) from Drain
Assembly.
2
Apply included Upper Drain Seal (1) or
Plumber’s Putty to the underside of the
Upper Flange. Insert Drain Assembly into
drain hole of sink from above.
3
From below, install Sealing Washer (3),
Metal Washer (2), and secure with
Mounting Nut (1). Tighten with Slip Joint
Pliers. Take care to not over-tighten
connection.
4
Test Drain operation by pressing down on
Stopper to open/close Drain.
Slip Joint
Wrench
SAFETY TIPS
Plumber’s
Putty
IMPORTANT
For additional assistance or service please contact:
SPEAKMAN
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakmancompany.com
®
Company
92-S-3470-R1
Be sure to wear eye protection.
MAINTENANCE
Your new Faucet Drain is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool, and harsh chemicals
as these will dull the finish and void your warranty.
WARRANTY
1 Year Limited Warranty
Additional warranty information can be found at:
www.speakmancompany.com
Page 2

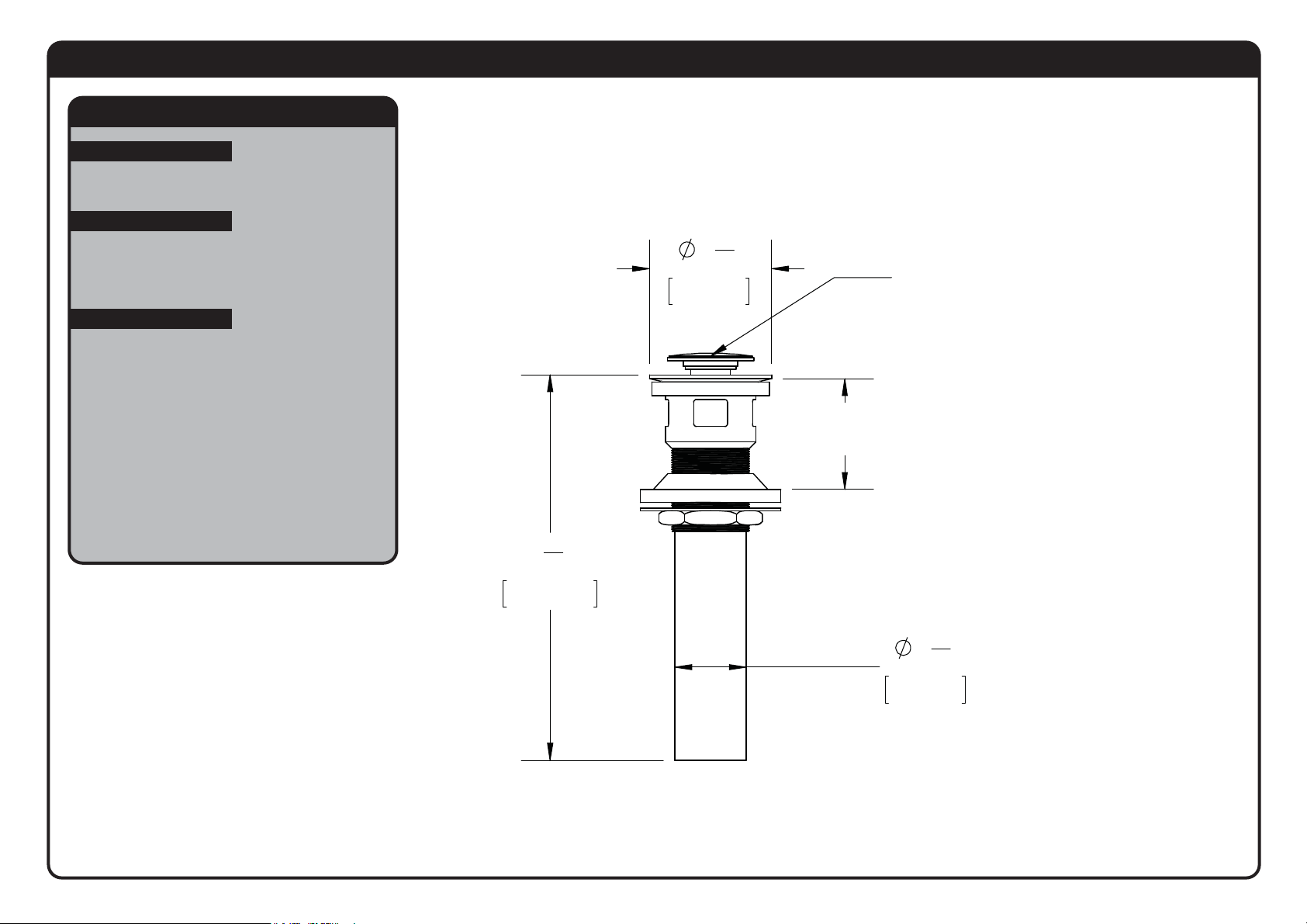

S-3470 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
NOTES:
COMPLIANCE:
FEATURES:
CONNECTIONS:
ASME A112.18.1/CSA B 125.1
• Brass Construction
• Rubber Seals
For 1-¼” Drain Connections
6
3
4
"
171mm
1
1
4
"
32mm
2
1
8
"
54mm
2"
[ 51mm ]
PUSH ON / POP OFF
ACTIVATION
(FOR DRAIN CONNECTION)
MAX
