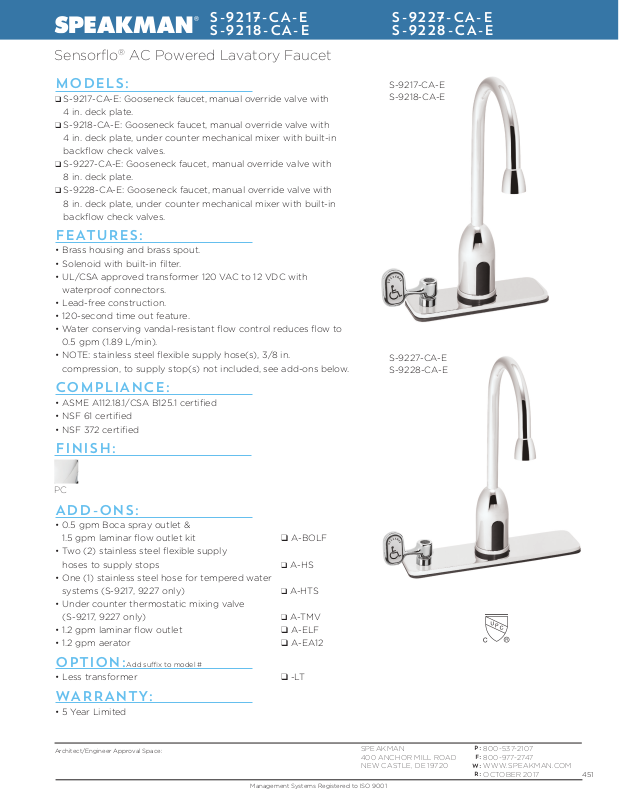

Page 1
S-9217-CA-E
NSF 372
S-9218-CA-E
Sensoro® AC Powered Lavatory Faucet
S-9227-CA-E
S-9228-CA-E
MODELS:
❑ S-9217-CA-E: Gooseneck faucet, manual override valve with
4 in. deck plate.
❑ S-9218-CA-E: Gooseneck faucet, manual override valve with
4 in. deck plate, under counter mechanical mixer with built-in
backflow check valves.
❑ S-9227-CA-E: Gooseneck faucet, manual override valve with
8 in. deck plate.
❑ S-9228-CA-E: Gooseneck faucet, manual override valve with
8 in. deck plate, under counter mechanical mixer with built-in
backflow check valves.
FEATURES:
• Brass housing and brass spout.
• Solenoid with built-in filter.
• UL/CSA approved transformer 120 VAC to 12 VDC with
waterproof connectors.
• Lead-free construction.
• 120-second time out feature.
• Water conserving vandal-resistant flow control reduces flow to
0.5 gpm (1.89 L/min).
• NOTE: stainless steel flexible supply hose(s), 3/8 in.
compression, to supply stop(s) not included, see add-ons below.
S-9217-CA-E
S-9218-CA-E
S-9227-CA-E
S-9228-CA-E
COMPLIANCE:
• ASME A112.18.1/CSA B125.1 certified
• NSF 61 certified
• NSF 372 certified
FINISH:
PC
ADD-ONS:
• 0.5 gpm Boca spray outlet &
1.5 gpm laminar flow outlet kit ❑ A-BOLF
• Two (2) stainless steel flexible supply
hoses to supply stops ❑ A-HS
• One (1) stainless steel hose for tempered water
systems (S-9217, 9227 only) ❑ A-HTS
• Under counter thermostatic mixing valve
(S-9217, 9227 only) ❑ A-TMV
• 1.2 gpm laminar flow outlet ❑ A-ELF
• 1.2 gpm aerator ❑ A-EA12
OPTION:Add sux to model #
• Less transformer ❑ -LT
WARRANTY:
• 5 Year Limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
451
Page 2

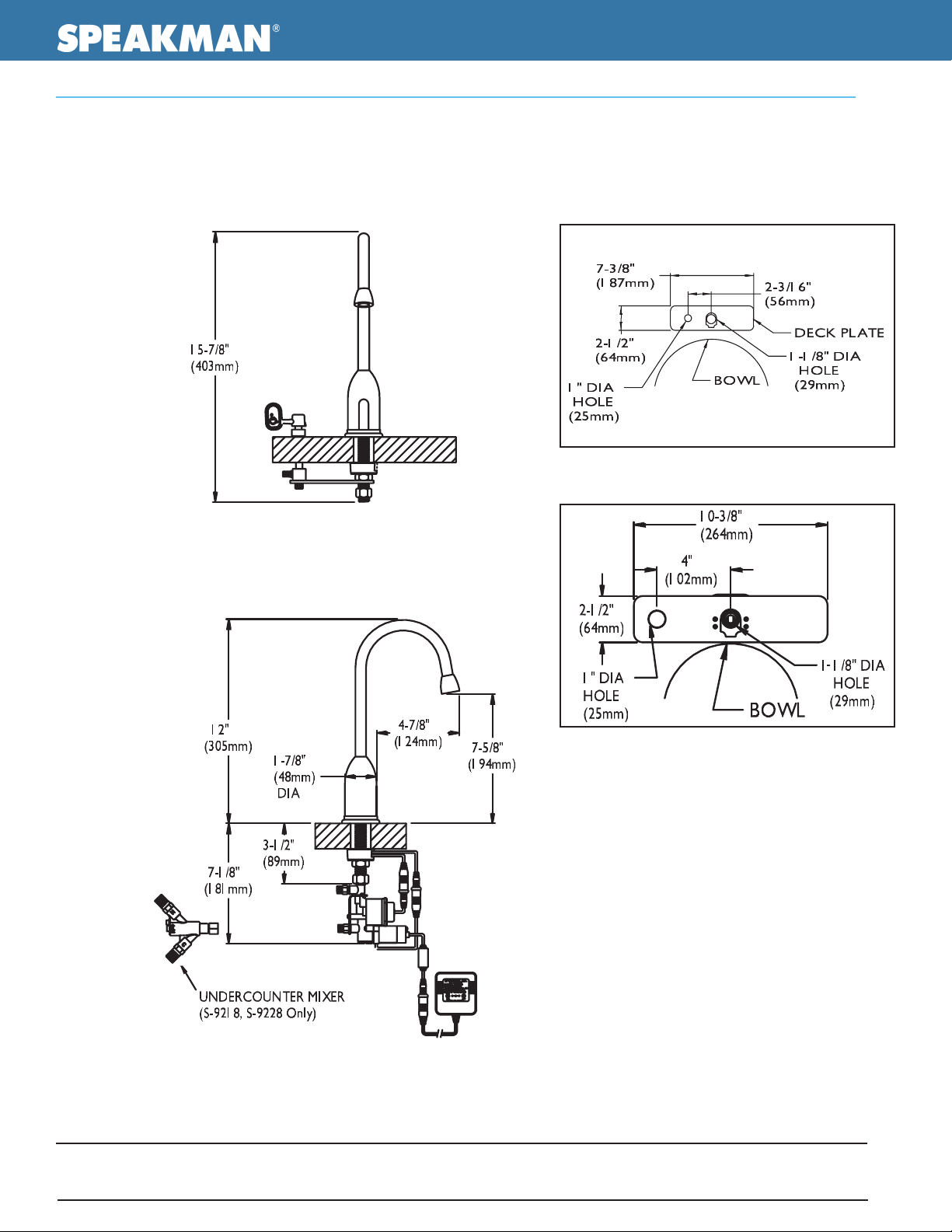

DIMENSIONS:
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.
2. Inlet is 3/8” compression with male threads. Position faucet as close to the edge of the sink as possible.
S-9217-CA-E
S-9218-CA-E
S-9227-CA-E
S-9228-CA-E
Architect/Engineer Approval Space:
452
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
