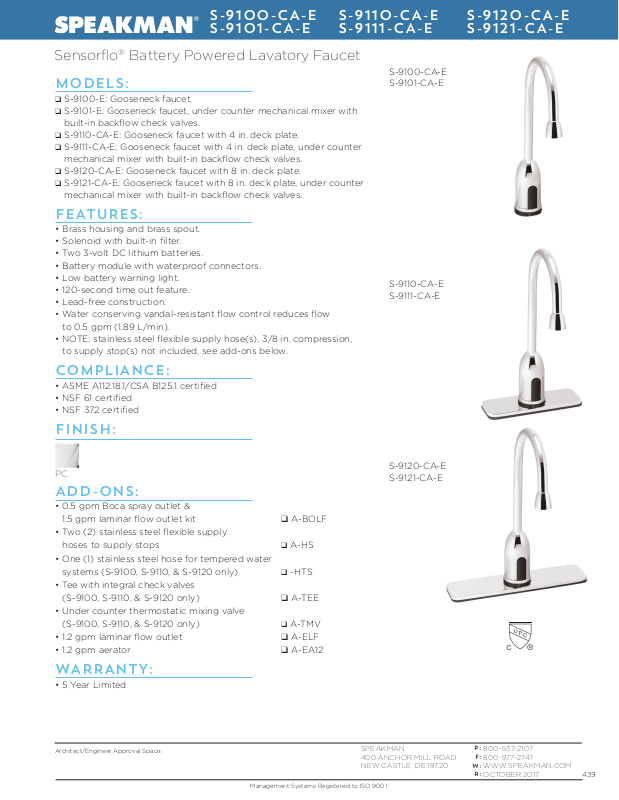

Page 1
S-9100-CA-E
NSF 372
S-9101-CA-E
S-9110-CA-E
S-9111-CA-E
Sensoro® Battery Powered Lavatory Faucet
MODELS:
❑ S-9100-E: Gooseneck faucet.
❑ S-9101-E: Gooseneck faucet, under counter mechanical mixer with
built-in backflow check valves.
❑ S-9110-CA-E: Gooseneck faucet with 4 in. deck plate.
❑ S-9111-CA-E: Gooseneck faucet with 4 in. deck plate, under counter
mechanical mixer with built-in backflow check valves.
❑ S-9120-CA-E: Gooseneck faucet with 8 in. deck plate.
❑ S-9121-CA-E: Gooseneck faucet with 8 in. deck plate, under counter
mechanical mixer with built-in backflow check valves.
FEATURES:
• Brass housing and brass spout.
• Solenoid with built-in filter.
• Two 3-volt DC lithium batteries.
• Battery module with waterproof connectors.
• Low battery warning light.
• 120-second time out feature.
• Lead-free construction.
• Water conserving vandal-resistant flow control reduces flow
to 0.5 gpm (1.89 L/min).
• NOTE: stainless steel flexible supply hose(s), 3/8 in. compression,
to supply stop(s) not included, see add-ons below.
S-9120-CA-E
S-9121-CA-E
S-9100-CA-E
S-9101-CA-E
S-9110-CA-E
S-9111-CA-E
COMPLIANCE:
• ASME A112.18.1/CSA B125.1 certified
• NSF 61 certified
• NSF 372 certified
FINISH:
PC
ADD-ONS:
• 0.5 gpm Boca spray outlet &
1.5 gpm laminar flow outlet kit ❑ A-BOLF
• Two (2) stainless steel flexible supply
hoses to supply stops ❑ A-HS
• One (1) stainless steel hose for tempered water
systems (S-9100, S-9110, & S-9120 only) ❑ -HTS
• Tee with integral check valves
(S-9100, S-9110, & S-9120 only) ❑ A-TEE
• Under counter thermostatic mixing valve
(S-9100, S-9110, & S-9120 only) ❑ A-TMV
• 1.2 gpm laminar flow outlet ❑ A-ELF
• 1.2 gpm aerator ❑ A-EA12
S-9120-CA-E
S-9121-CA-E
WARRANTY:
• 5 Year Limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
439
Page 2

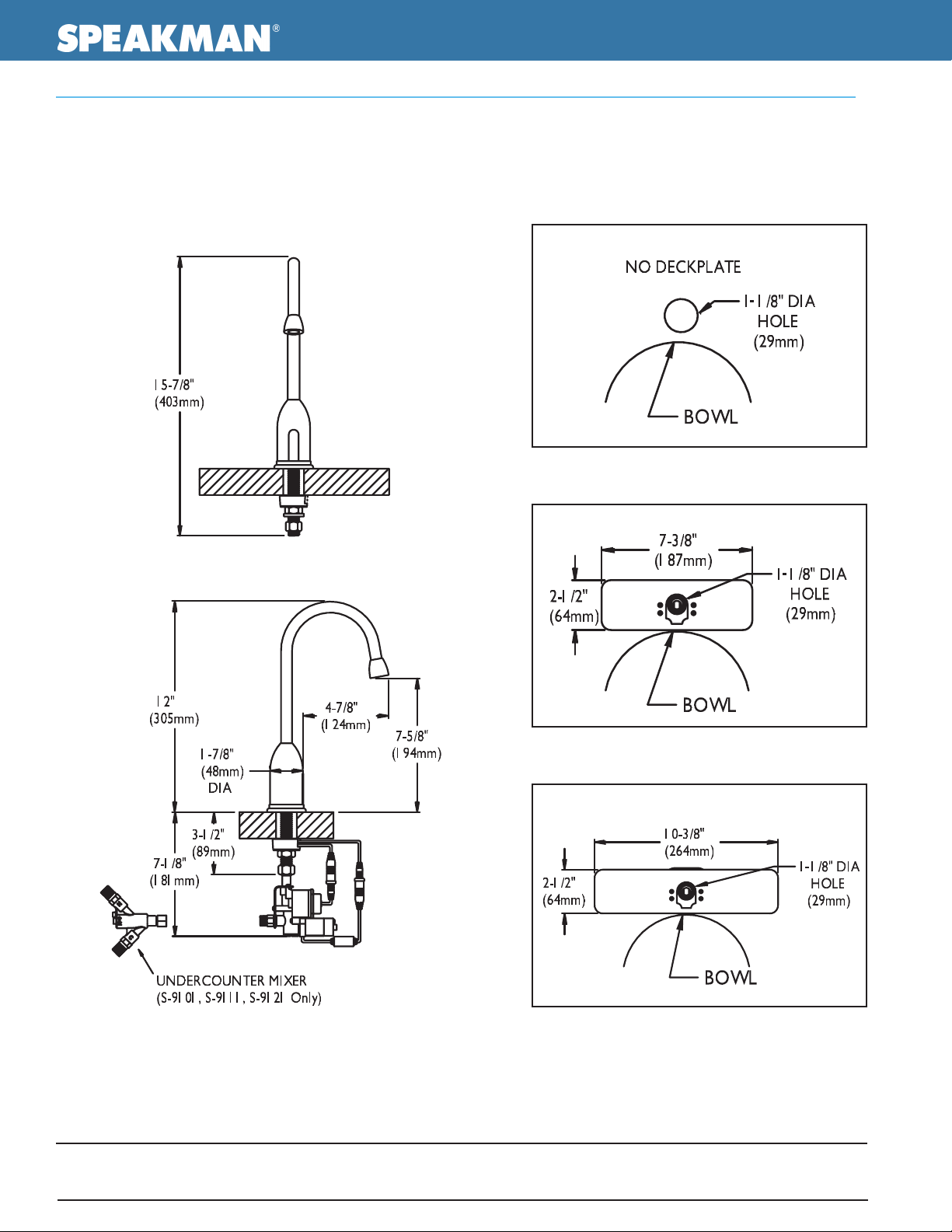

DIMENSIONS:
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.
2. Inlet is 3/8” compression with male threads. Position faucet as close to the edge of the sink as possible.
S-9100-CA-E
S-9101-CA-E
S-9110-CA-E
S-9111-CA-E
Architect/Engineer Approval Space:
440
S-9120-CA-E
S-9121-CA-E
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
