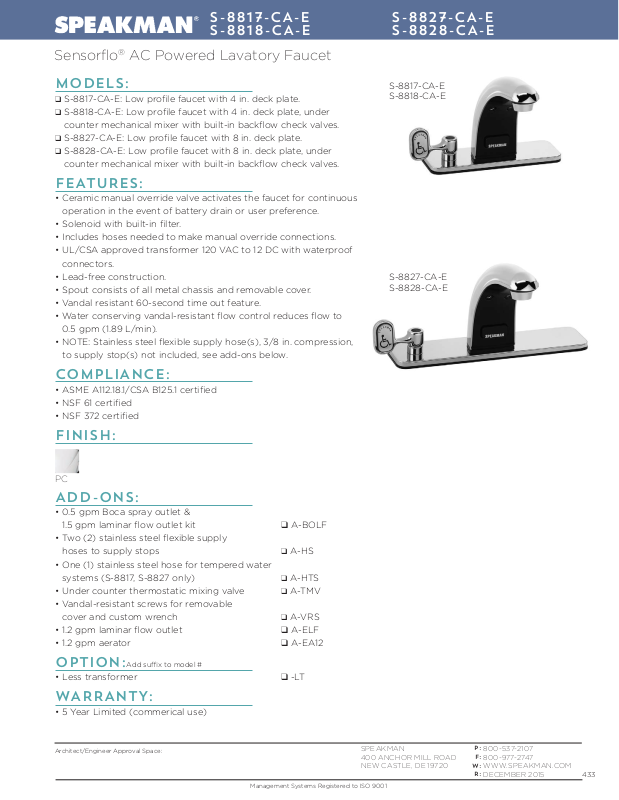

Page 1
S-8817-CA-E
S-8818-CA-E
Sensoro® AC Powered Lavatory Faucet
S-8827-CA-E
S-8828-CA-E
MODELS:
❑ S-8817-CA-E: Low profile faucet with 4 in. deck plate.
❑ S-8818-CA-E: Low profile faucet with 4 in. deck plate, under
counter mechanical mixer with built-in backflow check valves.
❑ S-8827-CA-E: Low profile faucet with 8 in. deck plate.
❑ S-8828-CA-E: Low profile faucet with 8 in. deck plate, under
counter mechanical mixer with built-in backflow check valves.
FEATURES:
• Ceramic manual override valve activates the faucet for continuous
operation in the event of battery drain or user preference.
• Solenoid with built-in filter.
• Includes hoses needed to make manual override connections.
• UL/CSA approved transformer 120 VAC to 12 DC with waterproof
connectors.
• Lead-free construction.
• Spout consists of all metal chassis and removable cover.
• Vandal resistant 60-second time out feature.
• Water conserving vandal-resistant flow control reduces flow to
0.5 gpm (1.89 L/min).
• NOTE: Stainless steel flexible supply hose(s), 3/8 in. compression,
to supply stop(s) not included, see add-ons below.
COMPLIANCE:
• ASME A112.18.1/CSA B125.1 certified
• NSF 61 certified
• NSF 372 certified
S-8817-CA-E
S-8818-CA-E
S-8827-CA-E
S-8828-CA-E
FINISH:
PC
ADD-ONS:
• 0.5 gpm Boca spray outlet &
1.5 gpm laminar flow outlet kit ❑ A-BOLF
• Two (2) stainless steel flexible supply
hoses to supply stops
• One (1) stainless steel hose for tempered water
systems (S-8817, S-8827 only)
• Under counter thermostatic mixing valve
• Vandal-resistant screws for removable
cover and custom wrench
• 1.2 gpm laminar flow outlet ❑ A-ELF
• 1.2 gpm aerator ❑ A-EA12
❑ A-HS
❑ A-HTS
❑ A-TMV
❑ A-VRS
OPTION:Add sux to model #
• Less transformer ❑ -LT
WARRANTY:
• 5 Year Limited (commerical use)
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
DECEMBER 2015
433
Page 2
DIMENSIONS:
1-1/2" (38mm)
MAXIMUM DECK
THICKNESS
SWIVEL CONNECTION
ALLOWS 360 ROTATION
OF SOLENOID FOR EASE
OF INSTALLATION
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.
2. Inlet is 3/8” compression with male threads. Position faucet as close to the edge of the sink as possible.
S-8817-CA-E
S-8818-CA-E
TRANSFORMER
SPEAKMAN CO.
AC ADAPTOR
SA
U
-
+
C
L
SOLENOID
REMOVABLE IN-LINE
FILTER (100 X 100
STAINLESS STEEL MESH)
S-8827-CA-E
S-8828-CA-E
3-1/2"
(89mm)
7"
(178mm)
UNDERCOUNTER
MIXER (S-8818 & S-8828 Only)
5"
(127mm)
4-3/4"
(121mm)
(178mm)
5-3/4"
(146mm)
7"
Architect/Engineer Approval Space:
434
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
DECEMBER 2015
