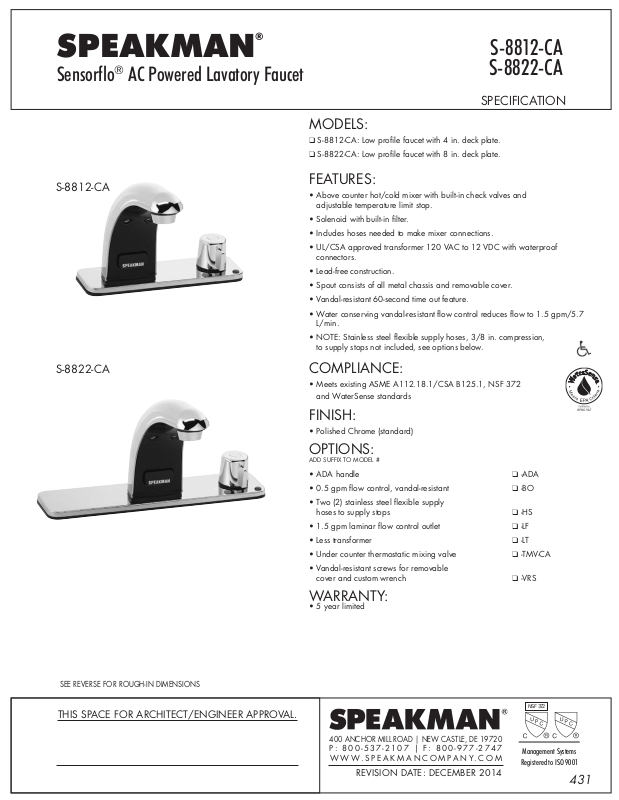

Page 1
NSF 372
SPEAKMAN
®
S-8812-CA
Sensorflo® AC Powered Lavatory Faucet
S-8812-CA
S-8822-CA
SPECIFICATION
MODELS:
❑ S-8812-CA: Low profile faucet with 4 in. deck plate.
❑ S-8822-CA: Low profile faucet with 8 in. deck plate.
FEATURES:
• Above counter hot/cold mixer with built-in check valves and
adjustable temperature limit stop.
• Solenoid with built-in filter.
• Includes hoses needed to make mixer connections.
• UL/CSA approved transformer 120 VAC to 12 VDC with waterproof
connectors.
• Lead-free construction.
• Spout consists of all metal chassis and removable cover.
• Vandal-resistant 60-second time out feature.
• Water conserving vandal-resistant flow control reduces flow to 1.5 gpm/5.7
L/min.
• NOTE: Stainless steel flexible supply hoses, 3/8 in. compression,
to supply stops not included, see options below.
S-8822-CA
COMPLIANCE:
• Meets existing ASME A112.18.1/CSA B125.1, NSF 372
and WaterSense standards
FINISH:
• Polished Chrome (standard)
OPTIONS:
ADD SUFFIX TO MODEL #
• ADA handle ❑ -ADA
• 0.5 gpm ow control, vandal-resistant ❑ -BO
• Two (2) stainless steel exible supply
hoses to supply stops ❑ -HS
• 1.5 gpm laminar ow control outlet ❑ -LF
• Less transformer ❑ -LT
• Under counter thermostatic mixing valve ❑ -TMV-CA
• Vandal-resistant screws for removable
cover and custom wrench ❑ -VRS
WARRANTY:
• 5 year limited
SEE REVERSE FOR ROUGH-IN DIMENSIONS
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: DECEMBER 2014
NSF 372
Management Systems
Registered to ISO 9001
431
Page 2
NSF 372
®
SPEAKMAN
Sensorflo® AC Powered Lavatory Faucet S-8812-CA, S-8822-CA
S-8812-CA
1-1/2" (38mm)
MAXIMUM DECK
THICKNESS
SWIVEL CONNECTION
ALLOWS 360 ROTATION
OF SOLENOID FOR EASE
OF INSTALLATION
TRANSFORMER
SPEAKMAN CO.
AC ADAPTOR
SA
U
+
C
L
SOLENOID
SPECIFICATION
REMOVABLE IN-LINE
FILTER (100 X 100
STAINLESS STEEL MESH)
S-8822-CA
432
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specified and
are subject to change without notice. 2. Inlet is 3/8” compression with male threads.
3. Position faucet as close to the edge of the sink as possible
NSF 372
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
Management Systems
Registered to ISO 9001
REVISION DATE: DECEMBER 2014
