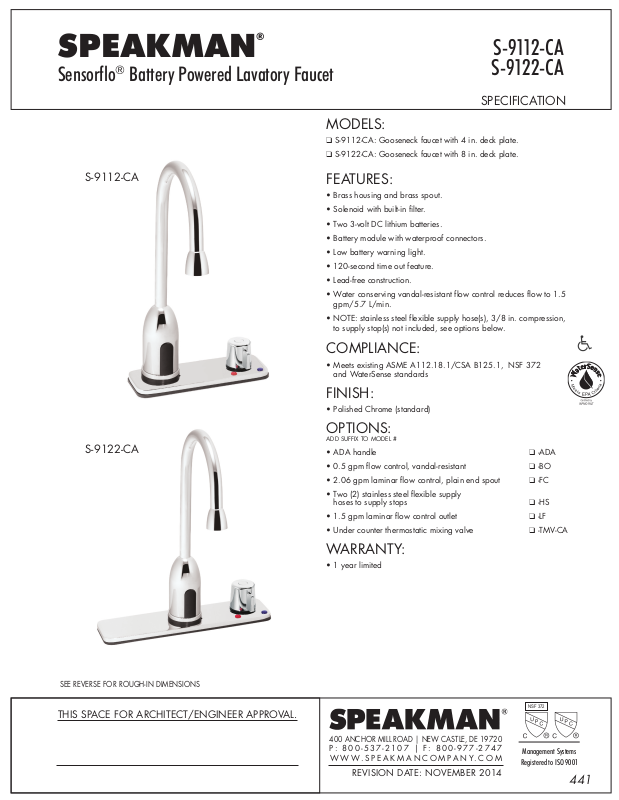

Page 1
NSF 372
SPEAKMAN
®
S-9112-CA
Sensorflo® Battery Powered Lavatory Faucet
S-9112-CA
S-9122-CA
SPECIFICATION
MODELS:
❑ S-9112-CA: Gooseneck faucet with 4 in. deck plate.
❑ S-9122-CA: Gooseneck faucet with 8 in. deck plate.
FEATURES:
• Brass housing and brass spout.
• Solenoid with built-in filter.
• Two 3-volt DC lithium batteries.
• Battery module with waterproof connectors.
• Low battery warning light.
• 120-second time out feature.
• Lead-free construction.
• Water conserving vandal-resistant flow control reduces flow to 1.5
gpm/5.7 L/min.
• NOTE: stainless steel flexible supply hose(s), 3/8 in. compression,
to supply stop(s) not included, see options below.
COMPLIANCE:
• Meets existing ASME A112.18.1/CSA B125.1, NSF 372
and WaterSense standards
S-9122-CA
SEE REVERSE FOR ROUGH-IN DIMENSIONS
FINISH:
• Polished Chrome (standard)
OPTIONS:
ADD SUFFIX TO MODEL #
• ADA handle ❑ -ADA
• 0.5 gpm ow control, vandal-resistant ❑ -BO
• 2.06 gpm laminar ow control, plain end spout ❑ -FC
• Two (2) stainless steel exible supply
hoses to supply stops ❑ -HS
• 1.5 gpm laminar ow control outlet ❑ -LF
• Under counter thermostatic mixing valve ❑ -TMV-CA
WARRANTY:
• 1 year limited
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: NOVEMBER 2014
NSF 372
Management Systems
Registered to ISO 9001
441
Page 2
NSF 372
®
SPEAKMAN
Sensorflo® Battery Powered Lavatory Faucet S-9112-CA, S-9122-CA
S-9112-CA
S-9122-CA
SPECIFICATION
442
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specified and
are subject to change without notice. 2. Inlet is 3/8” compression with male threads.
3. Position faucet as close to the edge of the sink as possible
NSF 372
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: NOVEMBER 2014
Management Systems
Registered to ISO 9001
