Speakman SPK3088 Specifications & Dimensions

Download

Page 1

S-8712-CA-E S-8722-CA-E

NSF 372

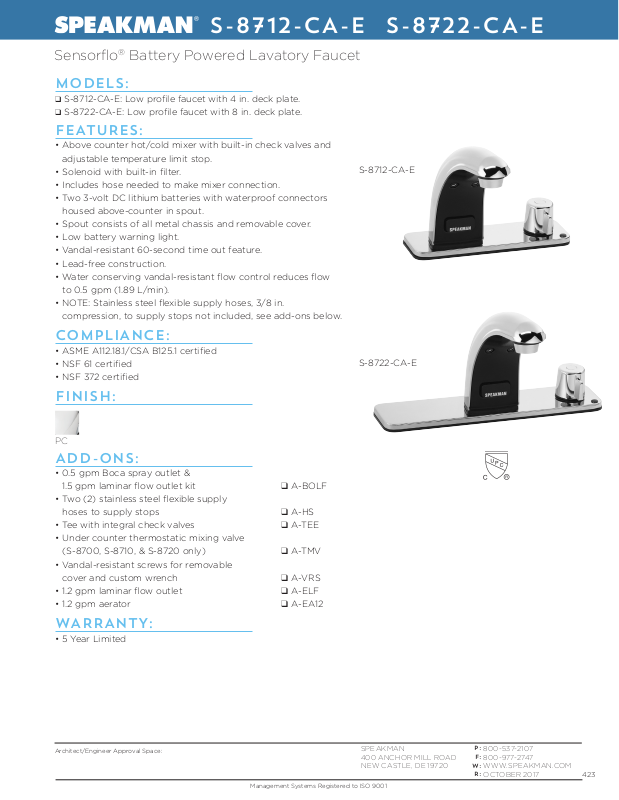

Sensoro® Battery Powered Lavatory Faucet

MODELS:

❑ S-8712-CA-E: Low proﬁle faucet with 4 in. deck plate. ❑ S-8722-CA-E: Low proﬁle faucet with 8 in. deck plate.

FEATURES:

• Above counter hot/cold mixer with built-in check valves and adjustable temperature limit stop.

• Solenoid with built-in ﬁlter.

• Includes hose needed to make mixer connection.

• Two 3-volt DC lithium batteries with waterproof connectors housed above-counter in spout.

• Spout consists of all metal chassis and removable cover.

• Low battery warning light.

• Vandal-resistant 60-second time out feature.

• Lead-free construction.

• Water conserving vandal-resistant ﬂow control reduces ﬂow to 0.5 gpm (1.89 L/min).

• NOTE: Stainless steel ﬂexible supply hoses, 3/8 in. compression, to supply stops not included, see add-ons below.

S-8712-CA-E

COMPLIANCE:

• ASME A112.18.1/CSA B125.1 certiﬁed

• NSF 61 certiﬁed

• NSF 372 certiﬁed

FINISH:

ADD-ONS:

• 0.5 gpm Boca spray outlet &

1.5 gpm laminar ﬂow outlet kit ❑ A-BOLF

• Two (2) stainless steel ﬂexible supply hoses to supply stops ❑ A-HS

• Tee with integral check valves ❑ A-TEE

• Under counter thermostatic mixing valve (S-8700, S-8710, & S-8720 only) ❑ A-TMV

• Vandal-resistant screws for removable cover and custom wrench ❑ A-VRS

• 1.2 gpm laminar ﬂow outlet ❑ A-ELF

• 1.2 gpm aerator ❑ A-EA12

WARRANTY:

• 5 Year Limited

S-8722-CA-E

Architect/Engineer Approval Space:

SPEAKMAN 400 ANCHOR MILL ROAD NEW C ASTLE, DE 19720

Management Systems Registered to ISO 9001

800-537-2107

80 0 -977-2747

WWW.SPEAKMAN.COM

OCTOBER 2017

423

Page 2

STAINLESS STEEL MESH)

DIMENSIONS:

1-1/2" (38mm)

MAXIMUM DECK

THICKNESS

SWIVEL CONNECTION ALLOWS 360 ROTATION OF SOLENOID FOR EASE OF INSTALLATION

NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.

2. Inlet is 3/8” compression with male threads. Position faucet as close to the edge of the sink as possible.
