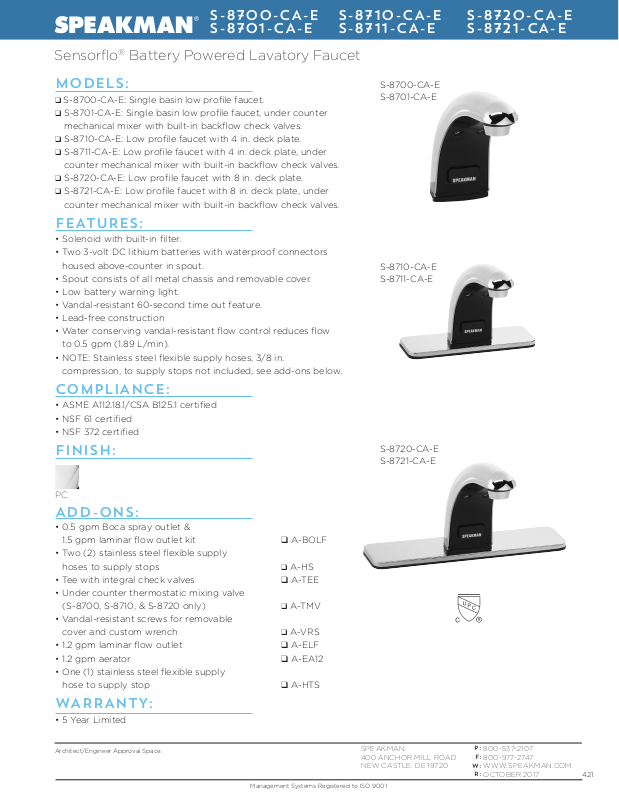

Page 1
S-8700-CA-E
NSF 372
S-8701-CA-E
S-8710-CA-E
S-8711-CA-E
Sensoro® Battery Powered Lavatory Faucet
S-8720-CA-E
S-8721-CA-E
MODELS:
❑ S-8700-CA-E: Single basin low profile faucet.
❑ S-8701-CA-E: Single basin low profile faucet, under counter
mechanical mixer with built-in backflow check valves.
❑ S-8710-CA-E: Low profile faucet with 4 in. deck plate.
❑ S-8711-CA-E: Low profile faucet with 4 in. deck plate, under
counter mechanical mixer with built-in backflow check valves.
❑ S-8720-CA-E: Low profile faucet with 8 in. deck plate.
❑ S-8721-CA-E: Low profile faucet with 8 in. deck plate, under
counter mechanical mixer with built-in backflow check valves.
FEATURES:
• Solenoid with built-in filter.
• Two 3-volt DC lithium batteries with waterproof connectors
housed above-counter in spout.
• Spout consists of all metal chassis and removable cover.
• Low battery warning light.
• Vandal-resistant 60-second time out feature.
• Lead-free construction
• Water conserving vandal-resistant flow control reduces flow
to 0.5 gpm (1.89 L/min).
• NOTE: Stainless steel flexible supply hoses, 3/8 in.
compression, to supply stops not included, see add-ons below.
S-8700-CA-E
S-8701-CA-E
S-8710-CA-E
S-8711-CA-E
COMPLIANCE:
• ASME A112.18.1/CSA B125.1 certified
• NSF 61 certified
• NSF 372 certified
FINISH:
PC
ADD-ONS:
• 0.5 gpm Boca spray outlet &
1.5 gpm laminar flow outlet kit ❑ A-BOLF
• Two (2) stainless steel flexible supply
hoses to supply stops ❑ A-HS
• Tee with integral check valves ❑ A-TEE
• Under counter thermostatic mixing valve
(S-8700, S-8710, & S-8720 only) ❑ A-TMV
• Vandal-resistant screws for removable
cover and custom wrench ❑ A-VRS
• 1.2 gpm laminar flow outlet ❑ A-ELF
• 1.2 gpm aerator ❑ A-EA12
• One (1) stainless steel flexible supply
hose to supply stop ❑ A-HTS
S-8720-CA-E
S-8721-CA-E
WARRANTY:
• 5 Year Limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
421
Page 2
DIMENSIONS:
1-1/2" (38mm)
MAXIMUM DECK
THICKNESS
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.
2. Inlet is 3/8” compression with male threads. Position faucet as close to the edge of the sink as possible.
S-8700-CA-E
S-8701-CA-E
SWIVEL CONNECTION
ALLOWS 360 ROTATION
OF SOLENOID FOR EASE
OF INSTALLATION
7"
(178mm)
3-1/2"
(89mm)
REMOVABLE IN-LINE
FILTER (100 X 100
STAINLESS STEEL MESH)
5"
(127mm)
4-3/4"
(121mm)
SOLENOID
5-3/4"
(146mm)
S-8710-CA-E
S-8711-CA-E
S-8720-CA-E
S-8721-CA-E
UNDERCOUNTER
MIXER (S-8701, S-8711 & S-8721 ONLY)
Architect/Engineer Approval Space:
422
7"
(178mm)
Management Systems Registered to ISO 9001
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
Page 3
S-8712-CA-E S-8722-CA-E
NSF 372
Sensoro® Battery Powered Lavatory Faucet
MODELS:
❑ S-8712-CA-E: Low profile faucet with 4 in. deck plate.
❑ S-8722-CA-E: Low profile faucet with 8 in. deck plate.
FEATURES:
• Above counter hot/cold mixer with built-in check valves and
adjustable temperature limit stop.
• Solenoid with built-in filter.
• Includes hose needed to make mixer connection.
• Two 3-volt DC lithium batteries with waterproof connectors
housed above-counter in spout.
• Spout consists of all metal chassis and removable cover.
• Low battery warning light.
• Vandal-resistant 60-second time out feature.
• Lead-free construction.
• Water conserving vandal-resistant flow control reduces flow
to 0.5 gpm (1.89 L/min).
• NOTE: Stainless steel flexible supply hoses, 3/8 in.
compression, to supply stops not included, see add-ons below.
S-8712-CA-E
COMPLIANCE:
• ASME A112.18.1/CSA B125.1 certified
• NSF 61 certified
• NSF 372 certified
FINISH:
PC
ADD-ONS:
• 0.5 gpm Boca spray outlet &
1.5 gpm laminar flow outlet kit ❑ A-BOLF
• Two (2) stainless steel flexible supply
hoses to supply stops ❑ A-HS
• Tee with integral check valves ❑ A-TEE
• Under counter thermostatic mixing valve
(S-8700, S-8710, & S-8720 only) ❑ A-TMV
• Vandal-resistant screws for removable
cover and custom wrench ❑ A-VRS
• 1.2 gpm laminar flow outlet ❑ A-ELF
• 1.2 gpm aerator ❑ A-EA12
WARRANTY:
• 5 Year Limited
S-8722-CA-E
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
423
Page 4
STAINLESS STEEL MESH)
DIMENSIONS:
1-1/2" (38mm)
MAXIMUM DECK
THICKNESS
SWIVEL CONNECTION
ALLOWS 360 ROTATION
OF SOLENOID FOR EASE
OF INSTALLATION
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.
2. Inlet is 3/8” compression with male threads. Position faucet as close to the edge of the sink as possible.
S-8712-CA-E
SOLENOID
REMOVABLE IN-LINE
FILTER (100 X 100
S-8722-CA-E
Architect/Engineer Approval Space:
424
Management Systems Registered to ISO 9001
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
Page 5
S-8717-CA-E
NSF 372
S-8718-CA-E
Sensoro® Battery Powered Lavatory Faucet
S-8727-CA-E
S-8728-CA-E
MODELS:
❑ S-8717-CA-E: Low profile faucet with 4 in. deck plate.
❑ S-8718-CA-E: Low profile faucet with 4 in. deck plate, under
counter mechanical mixer with built-in backflow check valves.
❑ S-8727-CA-E: Low profile faucet with 8 in. deck plate.
❑ S-8728-CA-E: Low profile faucet with 8 in. deck plate, under
counter mechanical mixer with built-in backflow check valves.
FEATURES:
• Ceramic manual override valve activates the faucet for continuous
operation in the event of battery drain or user preference.
• Solenoid with built-in filter.
• Includes hoses needed to make manual override connections.
• Two 3-volt DC lithium batteries with waterproof connectors
housed above-counter in spout.
• Spout consists of all metal chassis and removable cover.
• Low battery warning light.
• Vandal resistant 60-second time out feature.
• Lead-free construction.
• Water conserving vandal-resistant flow control reduces
flow to 0.5 gpm (1.89 L/min).
• NOTE: Stainless steel flexible supply hose(s), 3/8 in. compression,
to supply stop(s) not included, see add-ons below.
S-8717-CA-E
S-8718-CA-E
S-8727-CA-E
S-8728-CA-E
COMPLIANCE:
• ASME A112.18.1/CSA B125.1 certified
• NSF 61 certified
• NSF 372 certified
FINISH:
PC
ADD-ONS:
• 0.5 gpm Boca spray outlet &
1.5 gpm laminar flow outlet kit ❑ A-BOLF
• Two (2) stainless steel flexible supply
hoses to supply stops ❑ A-HS
• One (1) stainless steel hose for tempered water
systems (S-8717, S-8727 only) ❑ A-HTS
• Tee with integral check valves ❑ A-TEE
• Under counter thermostatic mixing valve
(S-8717, S-8727 only) ❑ A-TMV
• Vandal-resistant screws for removable
cover and custom wrench ❑ A-VRS
• 1.2 gpm laminar flow outlet ❑ A-ELF
• 1.2 gpm aerator ❑ A-EA12
WARRANTY:
• 5 Year Limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
425
Page 6
(89mm)
DIMENSIONS:
1-1/2" (38mm)
MAXIMUM DECK
THICKNESS
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.
2. Inlet is 3/8” compression with male threads. Position faucet as close to the edge of the sink as possible.
S-8717-CA-E
S-8718-CA-E
SWIVEL CONNECTION
ALLOWS 360 ROTATION
OF SOLENOID FOR EASE
OF INSTALLATION
7"
(178mm)
3-1/2"
5"
(127mm)
4-3/4"
(121mm)
(178mm)
7"
SOLENOID
REMOVABLE IN-LINE
FILTER (100 X 100
STAINLESS STEEL MESH)
5-3/4"
(146mm)
S-8727-CA-E
S-8728-CA-E
426
UNDERCOUNTER
MIXER (S-8718 & S-8728 Only)
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
Page 7
S-8729-CA-E
NSF 372
Sensoro® Battery Powered Lavatory Faucet
FEATURES:
• Above counter hot/cold mixer with built-in check valves and
temperature limit stop.
• Ceramic manual override valve activates the faucet for
continuous operation in the event of battery drain or user
preference.
• Solenoid with built-in filter.
• Includes hoses needed to make mixer and manual override
connections.
• Includes 8 in. deck plate.
• Two 3-volt DC lithium batteries with waterproof connectors
housed above counter in spout.
• Spout consists of all metal chassis and removable cover.
• Low battery warning light.
• Vandal resistant 60-second time out feature.
• Lead-free construction.
• Water conserving vandal-resistant flow control reduces flow to
0.5 gpm (1.89 L/min).
• NOTE: Stainless steel flexible supply hoses, 3/8 in.
compression, to supply stops not included, see add-ons below.
COMPLIANCE:
• ASME A112.18.1/CSA B125.1 certified
• NSF 61 certified
• NSF 372 certified
FINISH:
PC
ADD-ONS:
• 0.5 gpm Boca spray outlet &
1.5 gpm laminar flow outlet kit ❑ A-BOLF
• Two (2) stainless steel flexible supply
hoses to supply stops ❑ A-HS
• Tee with integral check valves ❑ A-TEE
• Under counter thermostatic mixing valve ❑ A-TMV
• Vandal-resistant screws for removable
cover and custom wrench ❑ A-VRS
• 1.2 gpm laminar flow outlet ❑ A-ELF
• 1.2 gpm aerator ❑ A-EA12
WARRANTY:
• 5 Year Limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
427
Page 8
DIMENSIONS:
1-1/2" (38mm)
MAXIMUM DECK
THICKNESS
SWIVEL CONNECTION
ALLOWS 360 ROTATION
OF SOLENOID FOR EASE
OF INSTALLATION
K
M
A
E
A
P
N
S
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.
2. Inlet is 3/8” compression with male threads. Position faucet as close to the edge of the sink as possible.
SOLENOID
REMOVABLE IN-LINE
FILTER (100 X 100
STAINLESS STEEL MESH)
Architect/Engineer Approval Space:
428
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
