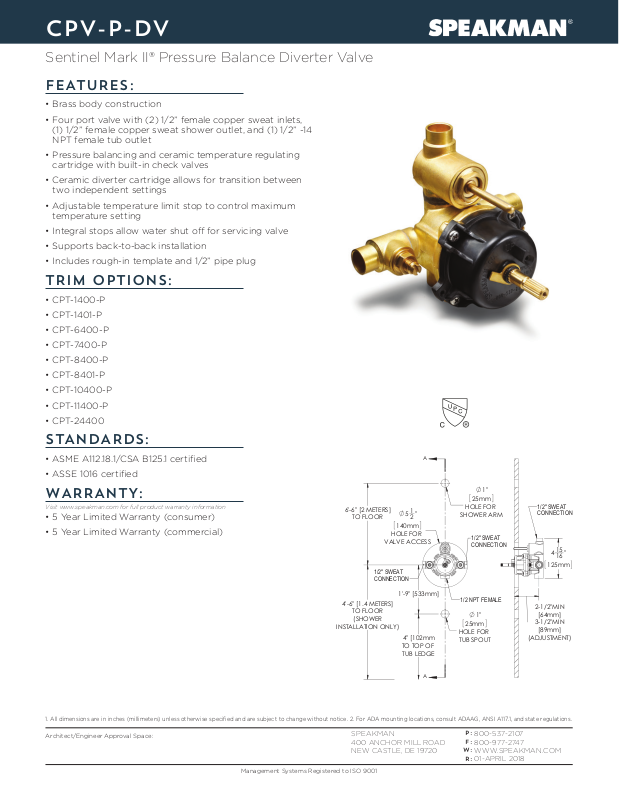

Page 1
CPV-P-DV
INSTALLATION ONLY
N

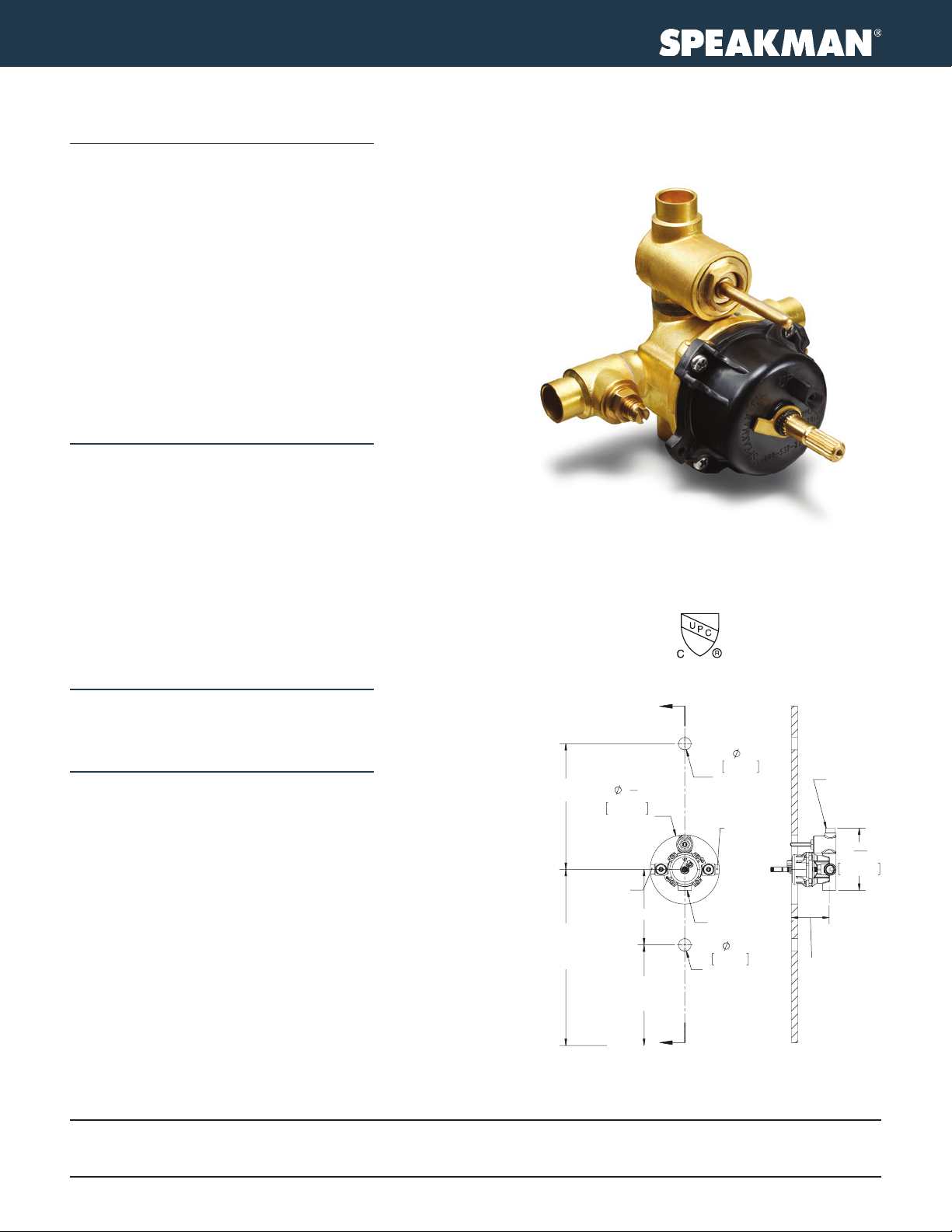

Sentinel Mark II® Pressure Balance Diverter Valve
FEATURES:
• Brass body construction
• Four port valve with (2) 1/2” female copper sweat inlets,
(1) 1/2” female copper sweat shower outlet, and (1) 1/2” -14
NPT female tub outlet
• Pressure balancing and ceramic temperature regulating
cartridge with built-in check valves
• Ceramic diverter cartridge allows for transition between
two independent settings
• Adjustable temperature limit stop to control maximum
temperature setting
• Integral stops allow water shut o for servicing valve
• Supports back-to-back installation
• Includes rough-in template and 1/2” pipe plug
TRIM OPTIONS:
• CPT-1400-P
• CPT-1401-P
• CPT-6400-P
• CPT-7400-P
• CPT-8400-P
• CPT-8401-P
• CPT-10400-P
• CPT-11400-P
• CPT-24400
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
• ASSE 1016 certified
WARRANTY:
Visit www.speakman.com for full product warranty information
• 5 Year Limited Warranty (consumer)
• 5 Year Limited Warranty (commercial)
1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice. 2. For ADA mounting locations, consult ADAAG, ANSI A117.1, and state regulations.
Architect/Engineer Approval Space:
6'-6" [2 METERS]
Management Systems Registered to ISO 9001
4'-6" [1.4 METERS]
SPEAKMAN
400 ANCHOR MILL ROAD
NEW CASTLE, DE 19720
TO FLOOR
1/2" SWEAT
CONNECTION
TO FLOOR
(SHOWER
1
5
"
2
140mm
HOLE FOR
VALVE ACCESS
1'-9" [533mm]
)
4" [102mm
TO TOP OF
TUB LEDGE
A
1"
25mm
HOLE FOR
SHOWER ARM
1/2" SWEAT
CONNECTION
1/2 NPT FEMALE
1"
25mm
HOLE FOR
TUB SPOUT
A
P:
800-537-2107
F:
80 0 -97 7-2 747
W:
WWW.SPEAKMAN.COM
R:
01-APRIL 2018
1/2" SWEAT
CONNECTIO
15
4
16
125mm
2-1/2"MIN
[64mm]
3-1/2"MIN
[89mm]
(ADJUSTMENT)
"
