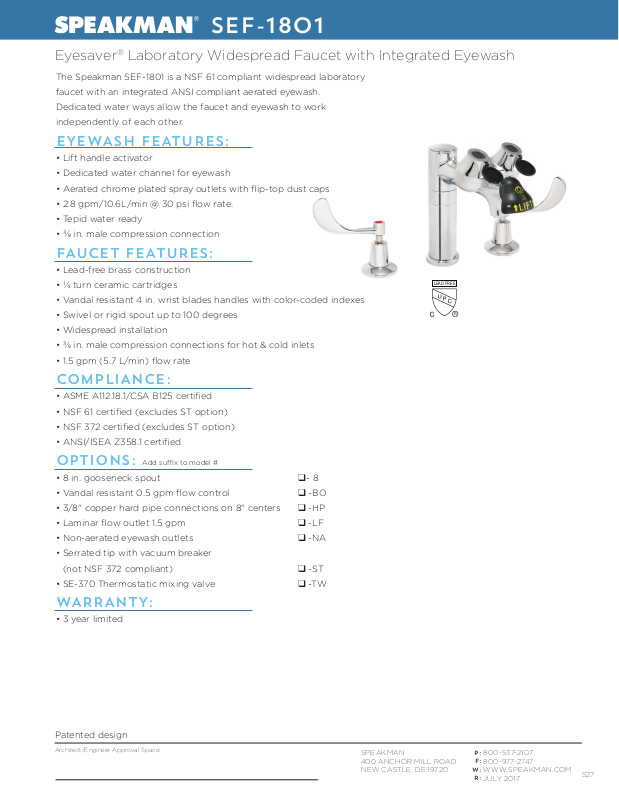

SEF-1801

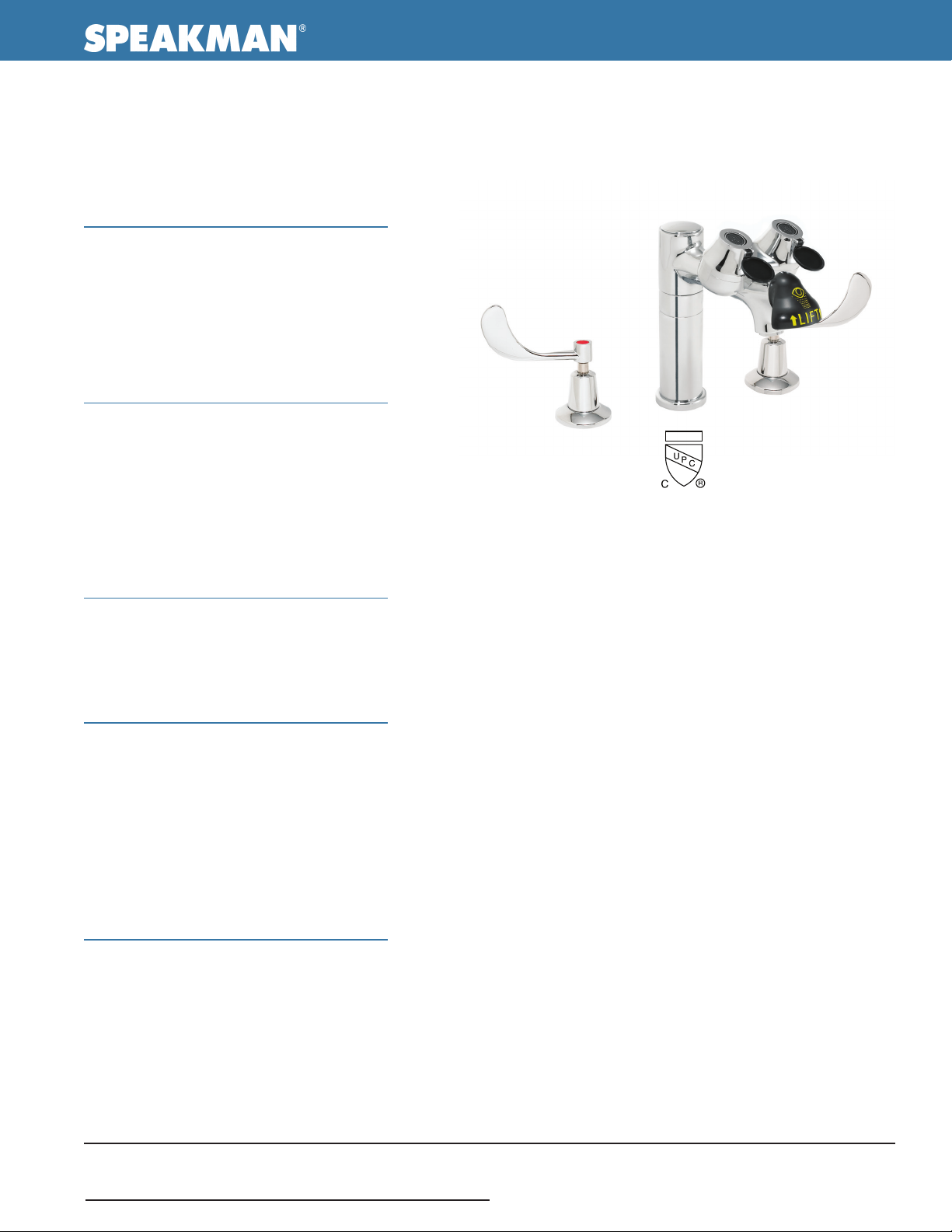

Eyesaver® Laboratory Widespread Faucet with Integrated Eyewash
The Speakman SEF-1801 is a NSF 61 compliant widespread laboratory
faucet with an integrated ANSI compliant aerated eyewash.
Dedicated water ways allow the faucet and eyewash to work
independently of each other.
EYEWASH FEATURES:
• Lift handle activator
• Dedicated water channel for eyewash
• Aerated chrome plated spray outlets with flip-top dust caps
• 2.8 gpm/10.6L/min @ 30 psi flow rate.
• Tepid water ready
• ⅜ in. male compression connection
FAUCET FEATURES:
• Lead-free brass construction
• ¼ turn ceramic cartridges
• Vandal resistant 4 in. wrist blades handles with color-coded indexes
• Swivel or rigid spout up to 100 degrees
• Widespread installation
• ⅜ in. male compression connections for hot & cold inlets
• 1.5 gpm (5.7 L/min) flow rate
LEAD FREE
COMPLIANCE:
• ASME A112.18.1/CSA B125 certified
• NSF 61 certified (excludes ST option)
• NSF 372 certified (excludes ST option)
• ANSI/ISEA Z358.1 certified
OPTIONS: Add sux to model #
• 8 in. gooseneck spout ❑- 8
• Vandal resistant 0.5 gpm flow control ❑ -BO
• 3/8" copper hard pipe connections on 8" centers ❑ -HP
• Laminar flow outlet 1.5 gpm ❑ -LF
• Non-aerated eyewash outlets ❑ -NA
• Serrated tip with vacuum breaker
(not NSF 372 compliant) ❑ -ST
• SE-370 Thermostatic mixing valve ❑ -TW
WARRANTY:
• 3 year limited
Patented design
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
JULY 2017
527
Page 2

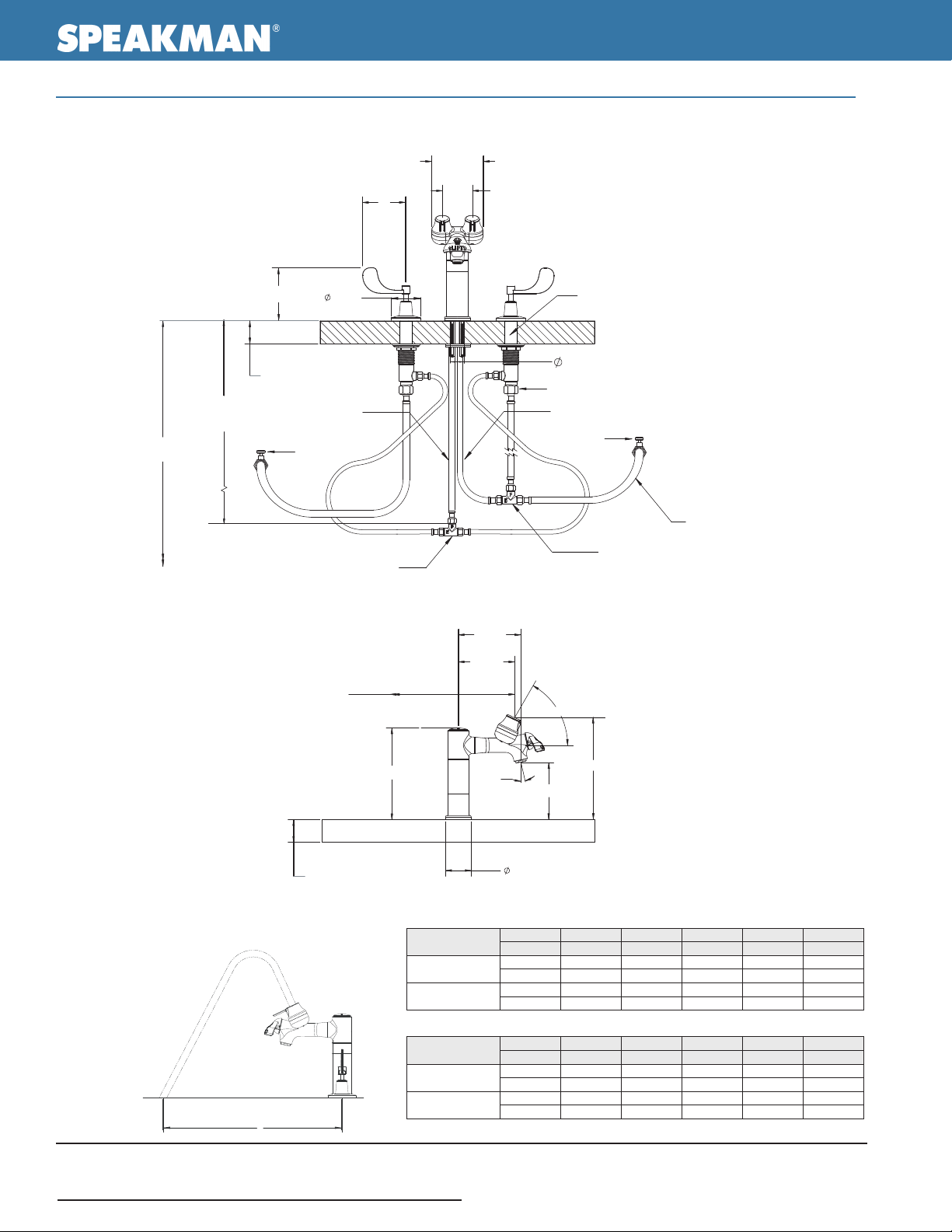

ROUGH-IN MEASUREMENTS
2" MAX. DECK HEIGHT
8"
6" MIN FROM WALL
OR OBSTRUCTION
SEF-1801 SIDE VIEW (LESS HOSES)
FRONT VIEW
6" MIN FROM WALL
OR OBSTRUCTION
SEF-1801-8 SIDE VIEW (LESS HOSES)
EYEWASH HOSE
CHECK VALVES
SEF-1801 SIDE VIEW (LESS HOSES)
DIMENSIONS:
Eyewash Flow Data
19” (SEF-1801)
17” (SEF-1801-8)
(2 HOSES)
24” MIN - 36” MAX
COUNTERTOP HEIGHT
NOTE: 1. Unless otherwise specified, all inlets are 3/8” compression with female threads. 2.All dimensions are in inches (millimeters) unless
otherwise specified and are subject to change without notice.
4-1/2"
2-5/8"
1-3/8” HOLES (2)
4-1/2"
4"
2-1/4"
2" MAX. DECK HEIGHT
SPOUT SUPPLY
HOSE
HOT SUPPLY
1-1/4" MINIMUM HOLE SIZE
1/2” COMPRESSION INLET
EYEWASH HOSE
COLD SUPPLY
6” LONG HOSE
TEE WITHOUT
6" MIN FROM WALL
OR OBSTRUCTION
2" MAX. DECK HEIGHT
8"
5-1/2"
4-7/8"
Flowing Pressure
Flow Rate
Eyewash Distance
Plume ”A”
TEE WITH CHECK
VALVES
65°
12°
2-1/4"
SEF-1800-CA-SL Spray Plume Length and Flow
30 psi 40 psi 50 psi 60 psi 70 psi 80 psi
2.07 Bar 2.76 Bar 3.45 Bar 4.14 Bar 4.83 Bar 5.52 Bar
2.14 gpm 2.25 gpm 2.49 gpm 2.70 gpm 2.95 gpm 3.09 gpm
8.1 L/min 8.5 L/min 9.4 L/min 10.2 L/min 11.2 L/min 11.7 L/min
12” 13” 15” 18” 21” 24”
30.5 cm 33.0 cm 38.1 cm 45.7 cm 53.3 cm 61.0 cm
8-7/8"
5-1/4"
Architect/Engineer Approval Space:
528
A
Flowing Pressure
Flow Rate
Eyewash Distance
Plume “A”
SEF-1800-CA-SL-8 Spray Plume Length and Flow
30 psi 40 psi 50 psi 60 psi 70 psi 80 psi
2.07 Bar 2.76 Bar 3.45 Bar 4.14 Bar 4.83 Bar 5.52 Bar
2.15 gpm 2.24 gpm 2.47 gpm 2.71 gpm 2.95 gpm 3.13 gpm
8.1 L/min 8.5 L/min 9.3 L/min 10.3 L/min 11.2 L/min 11.8 L/min
17” 18” 20” 23” 27” 29”
43.2 cm 45.7 cm 50.8 cm 58.4 cm 68.6 cm 73.7 cm
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
JULY 2017
