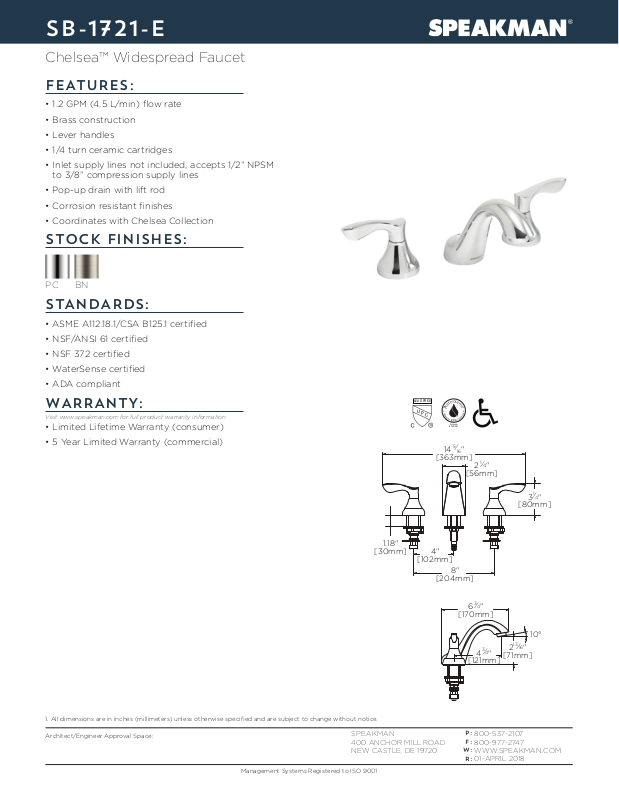

SB-1721-E
IAPMO R&T
LEAD FREE
Chelsea™ Widespread Faucet
FEATURES:
• 1.2 GPM (4.5 L/min) flow rate
• Brass construction
• Lever handles
• 1/4 turn ceramic cartridges
• Inlet supply lines not included, accepts 1/2” NPSM
to 3/8” compression supply lines
• Pop-up drain with lift rod
• Corrosion resistant finishes
• Coordinates with Chelsea Collection
STOCK FINISHES:
BN
PC
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
• NSF/ANSI 61 certified
• NSF 372 certified
• WaterSense certified
• ADA compliant
WARRANTY:
Visit www.speakman.com for full product warranty information
• Limited Lifetime Warranty (consumer)
• 5 Year Limited Warranty (commercial)
1.18
"
[30mm]
14
[363mm]
4
"
[102mm]
[204mm]
Certified by
5
⁄
"
16
[56mm]
8
"
6
[170mm]
[121mm]
1
⁄
4
2
"
1
⁄
4
"
3
[80mm]
3
⁄
4
"
10°
13
⁄
16
"
2
3
⁄
4
"
4
[71mm]
1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
SPEAKMAN
400 ANCHOR MILL ROAD
NEW CASTLE, DE 19720
P:
800-537-2107
F:
80 0 -97 7-2 747
W:
WWW.SPEAKMAN.COM
R:
01-APRIL 2018
