Page 1
SPEAKMAN
VS-232007
VS-233011
12.6” REF
[321 mm]
VS-2007
HAND HELD
SHOWERHEAD
2.5” REF
[64 mm]
VS-114
2-WAY
DIVERTER
G63-0084
HOSE
ASSEMBLY
75
6.3” REF
[161 mm]
5.1” REF
[130 mm]
2.5” REF
[64 mm]
VS-114
2-WAY
DIVERTER
VS-3010
HAND HELD
SHOWERHEAD
6.3” REF
[160 mm]
S-2007
FIXED
SHOWERHEAD
6.6” REF
[168 mm]
S-3010
FIXED
SHOWERHEAD

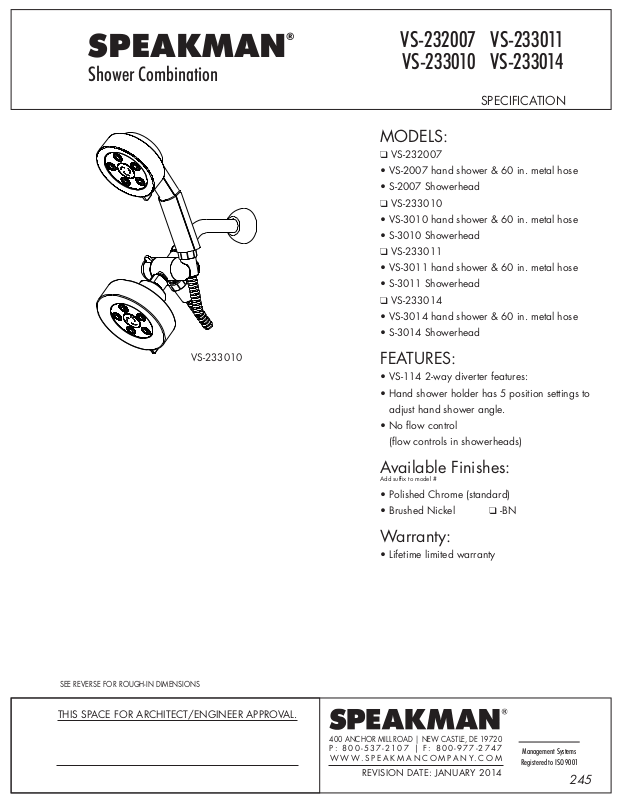

Shower Combination
®
VS-232007
VS-233010
VS-233011
VS-233014
SPECIFICATION
MODELS:
❑ VS-232007
• VS-2007 hand shower & 60 in. metal hose
• S-2007 Showerhead
❑ VS-233010
• VS-3010 hand shower & 60 in. metal hose
• S-3010 Showerhead
❑ VS-233011
• VS-3011 hand shower & 60 in. metal hose
• S-3011 Showerhead
❑ VS-233014
• VS-3014 hand shower & 60 in. metal hose
• S-3014 Showerhead
VS-233010
FEATURES:
• VS-114 2-way diverter features:
• Hand shower holder has 5 position settings to
adjust hand shower angle.
• No ow control
(ow controls in showerheads)
Available Finishes:
Add sufx to model #
• Polished Chrome (standard)
• Brushed Nickel ❑ -BN
Warranty:
• Lifetime limited warranty
SEE REVERSE FOR ROUGH-IN DIMENSIONS
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: JANUARY 2014
Management Systems
Registered to ISO 9001
245
Page 2
®
SPEAKMAN
Shower Combination VS-232007, VS-233010, VS-233011, VS-233014
SPECIFICATION
6.3” REF
[160 mm]
S-2007
FIXED
SHOWERHEAD
VS-2007
HAND HELD
SHOWERHEAD
2.5” REF
[64 mm]
VS-114
2-WAY
DIVERTER
VS-232007
12.6” REF
[321 mm]
VS-233011
12.9” REF
[327 mm]
6.3” REF
[161 mm]
75
G63-0084
HOSE
ASSEMBLY
5.1” REF
[130 mm]
VS-3010
HAND HELD
SHOWERHEAD
6.6” REF
[168 mm]
2.5” REF
[64 mm]
S-3010
FIXED
SHOWERHEAD
VS-114
2-WAY
DIVERTER
VS-233010
13.1” REF
[332 mm]
VS-233014
13.0” REF
[330 mm]
6.3” REF
[161 mm]
75
G63-0084
HOSE
ASSEMBLY
5.5” REF
[140 mm]
246
VS-3011
HAND HELD
SHOWERHEAD
6.9” REF
[176 mm]
2.5” REF
[64 mm]
S-3011
FIXED
SHOWERHEAD
VS-114
2-WAY
DIVERTER
6.3” REF
[161 mm]
G63-0084
HOSE
ASSEMBLY
5.3” REF
[136 mm]
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
VS-3014
HAND HELD
SHOWERHEAD
VS-114
2.5” REF
2-WAY
[64 mm]
DIVERTER
6.6” REF
[168 mm]
S-3014
FIXED
SHOWERHEAD
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specified and are
subject to change without notice.
6.3” REF
[161 mm]
75
G63-0084
HOSE
ASSEMBLY
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
Management Systems
Registered to ISO 9001
REVISION DATE: JANUARY 2014
5.1” REF
[130 mm]
