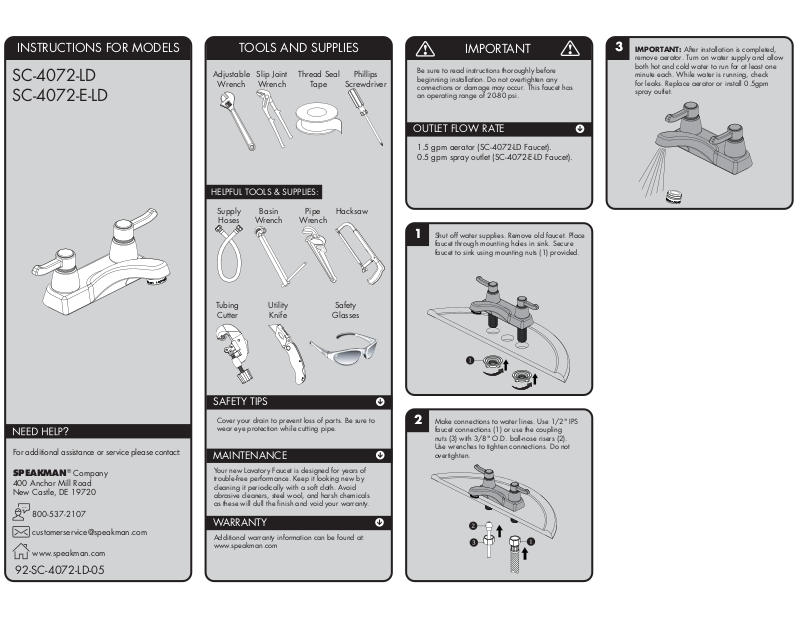

INSTRUCTIONS FOR MODELS
SC-4072-LD
HELPFUL TOOLS & SUPPLIES:
TOOLS AND SUPPLIES
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur. This faucet has
an operating range of 20-80 psi.
OUTLET FLOW RATE
1.5 gpm aerator (SC-4072-LD Faucet).
0.5 gpm spray outlet (SC-4072-E-LD Faucet).
1

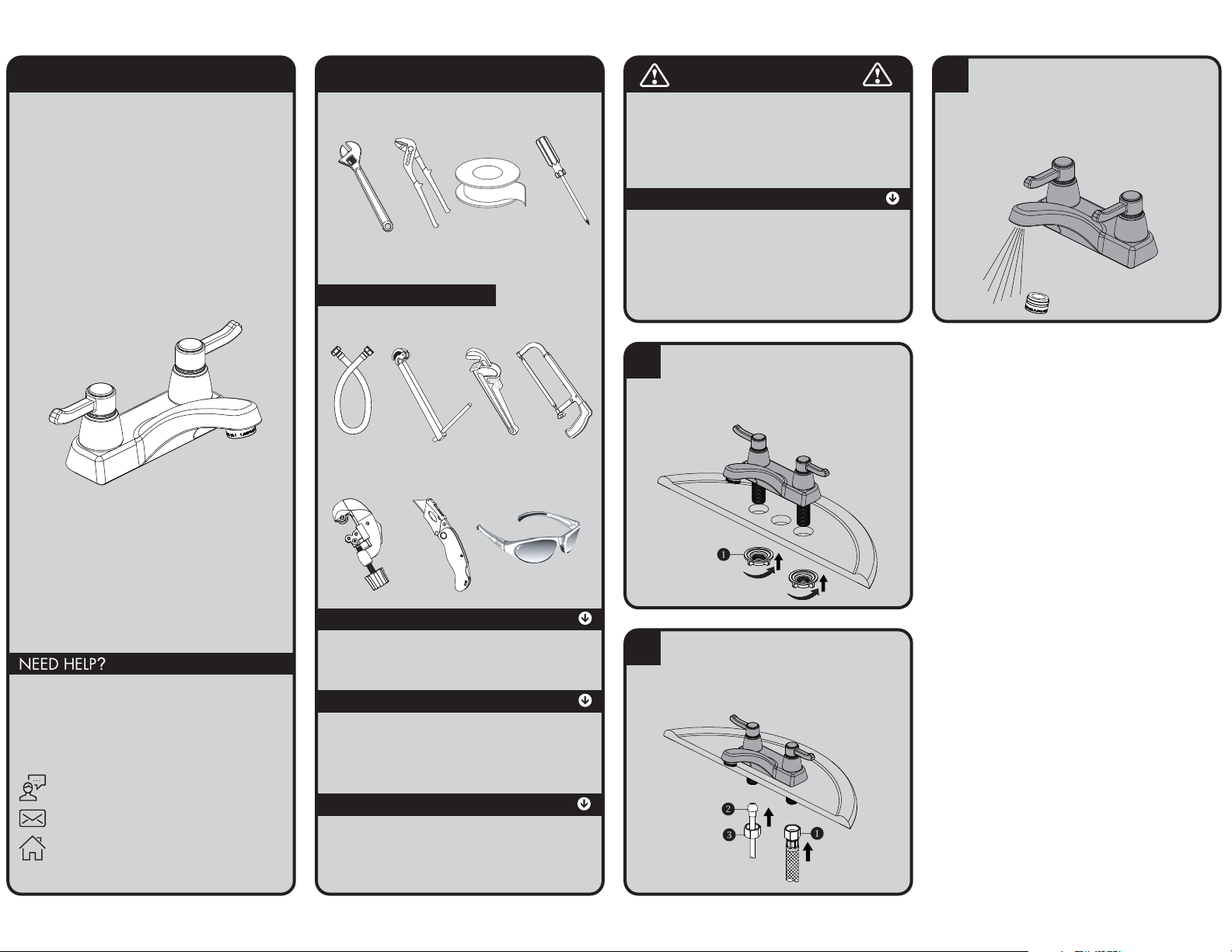

Shut off water supplies. Remove old faucet. Place
faucet through mounting holes in sink. Secure
faucet to sink using mounting nuts (1) provided.
2
Make connections to water lines. Use 1/2" IPS
faucet connections (1) or use the coupling
nuts (3) with 3/8" O.D. ball-nose risers (2).
Use wrenches to tighten connections. Do not
overtighten.
3
IMPORTANT: After installation is completed,
remove aerator. Turn on water supply and allow
both hot and cold water to run for at least one
minute each. While water is running, check
for leaks. Replace aerator or install 0.5gpm
spray outlet.
SC-4072-E-LD
Adjustable
Wrench
Slip Joint
Wrench
Thread Seal
Tape
Phillips
Screwdriver
For additional assistance or service please contact:
SPEAKMAN
400 Anchor Mill Road
New Castle, DE 19720
92-SC-4072-LD-05
®
Company
800-537-2107
www.speakman.com
Supply
Hoses
Tubing
Cutter
Basin
Wrench
Utility
Knife
Pipe
Wrench
Hacksaw
Safety
Glasses
SAFETY TIPS
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
MAINTENANCE
Your new Lavatory Faucet is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool, and harsh chemicals
as these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Page 2

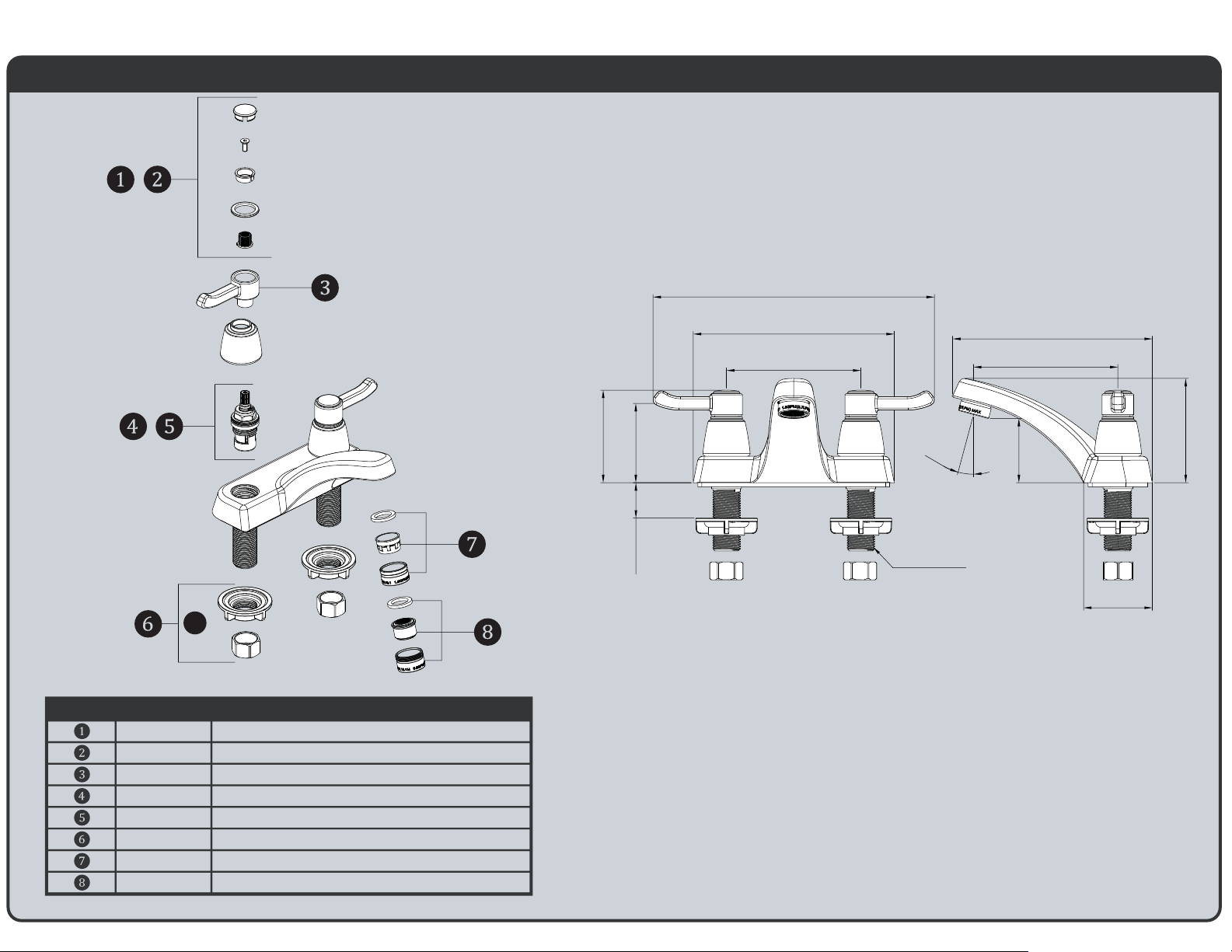

SC-4072-LD / SC-4072-LD-E REPAIR PARTS / ROUGH-IN DIAGRAM
SPEAKMAN
®
RPG41-0118 HOT INDICATOR (RED)
RPG41-0118 COLD INDICATOR (BLUE)
RPG04-0403-PC LEVER HANDLE REPLACEMENT
RPG05-0899 1/4 TURN CERAMIC HOT VALVE
RPG05-0900 1/4 TURN CERAMIC COLD VALVE
RPG45-0045 MOUNTING HARDWARE (x2)
RPG05-0838-PC 1.5 GPM AERATOR
RPG05-0798-PC
0.5 GPM SPRAY OUTLET
ITEM NO. PART NO. DESCRIPTION
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
X2
/
/
4"
[101.60mm]
5.98"
[152.00mm]
8.37"
[212.71mm]
2.36"
[59.96mm]
2.76"
[70.00mm]
MAX 1.06"
[26.80mm]
2.05"
[52.00mm]
15°
1.91"
[48.64mm]
3.1"
[78.84mm]
4.3"
[109.18mm]
5.94"
[150.95mm]
1/2"-14NPSM-2A
