1/4”-20 UNC-2A
THREAD

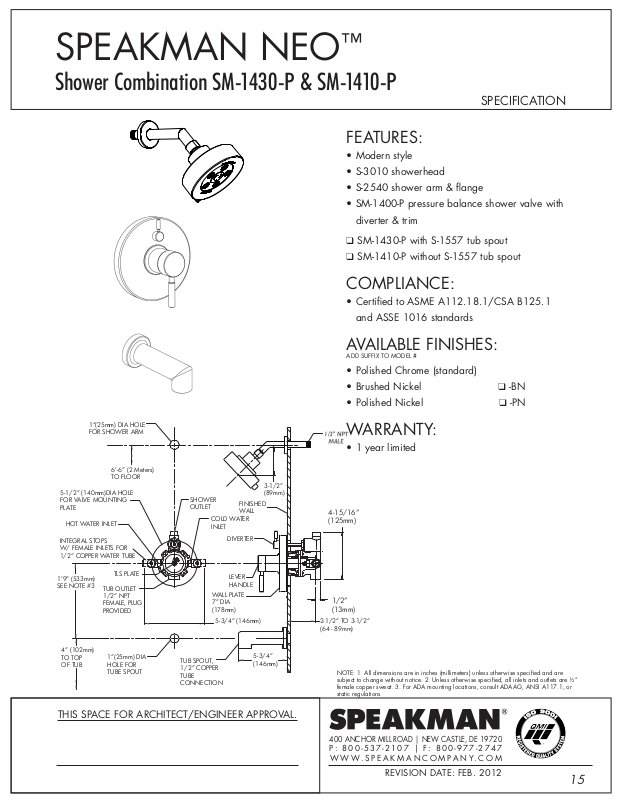

SPEAKMAN NEO
Shower Combination SM-1430-P & SM-1410-P
FEATURES:
• Modern style
• S-3010 showerhead
• S-2540 shower arm & ange
• SM-1400-P pressure balance shower valve with
diverter & trim
❑ SM-1430-P with S-1557 tub spout
❑ SM-1410-P without S-1557 tub spout
COMPLIANCE:
• Certied to ASME A112.18.1/CSA B125.1
and ASSE 1016 standards

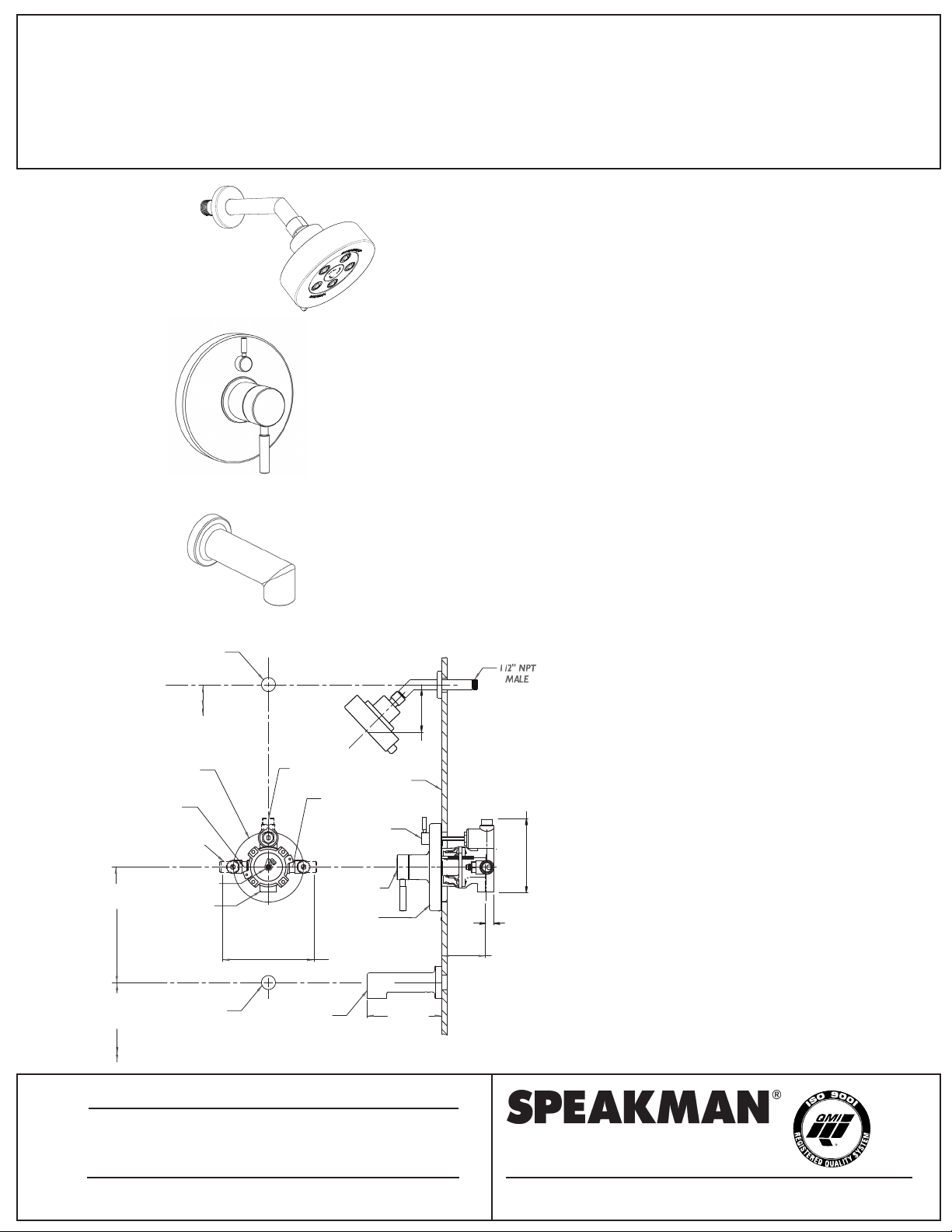

SPECIFICATION
1”(25mm) DIA HOLE
FOR SHOWER ARM
6’-6” (2 Meters)
TO FLOOR
5-1/2” (140mm)DIA HOLE
FOR VALVE MOUNTING
PL ATE
HOT WATER INLET
INTEGRAL STOPS
W/ FEMALE INLETS FOR
1/2” COPPER WATER TUBE
1’9” (533mm)
SEE NOTE #3
TLS PLATE
TUB OUTLET
1/2” NPT
FEMALE, PLUG
PROVIDED
SHOWER
OUTLET
FINISHED
WALL
COLD WATER
INLET
DIVERTER
LEVER
HANDLE
WALL PLATE
7” DIA
(178mm)
5-3/4” (146mm)
3-1/2”
(89mm)
AVAILABLE FINISHES:
ADD SUFFIX TO MODEL #
• Polished Chrome (standard)
• Brushed Nickel ❑ -BN
• Polished Nickel ❑ -PN
WARRANTY:
• 1 year limited
4-15/16”
(125mm)
1/2”
(13mm)
2-1/2” TO 3-1/2”
(64 - 89mm)
4” (102mm)
TO TOP
OF TUB
1”(25mm) DIA
HOLE FOR
TUBE SPOUT
TUB SPOUT,
1/2” COPPER
TUBE
CONNECTION
5-3/4”
(146mm)
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are
subject to change without notice. 2. Unless otherwise specied, all inlets and outlets are ½”
female copper sweat. 3. For ADA mounting locations, consult ADAAG, ANSI A117.1, or
static regulations
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: FEB. 2012
