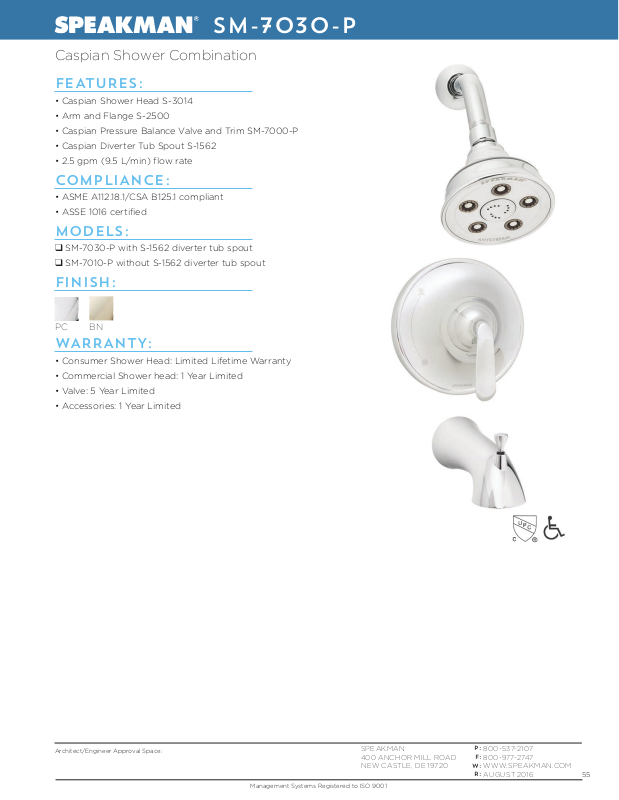

Page 1
SM-7030-P
Caspian Shower Combination
FEATURES:
• Caspian Shower Head S-3014
• Arm and Flange S-2500
• Caspian Pressure Balance Valve and Trim SM-7000-P
• Caspian Diverter Tub Spout S-1562
• 2.5 gpm (9.5 L/min) flow rate
COMPLIANCE:
• ASME A112.18.1/CSA B125.1 compliant
• ASSE 1016 certified
MODELS:
❑ SM-7030-P with S-1562 diverter tub spout
❑ SM-7010-P without S-1562 diverter tub spout
FINISH:
PC
BN
WARRANTY:
• Consumer Shower Head: Limited Lifetime Warranty
• Commercial Shower head: 1 Year Limited
• Valve: 5 Year Limited
• Accessories: 1 Year Limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -9 77-274 7
W:
WWW.SPEAKMAN.COM
R:
AUGU ST 2016
55
Page 2

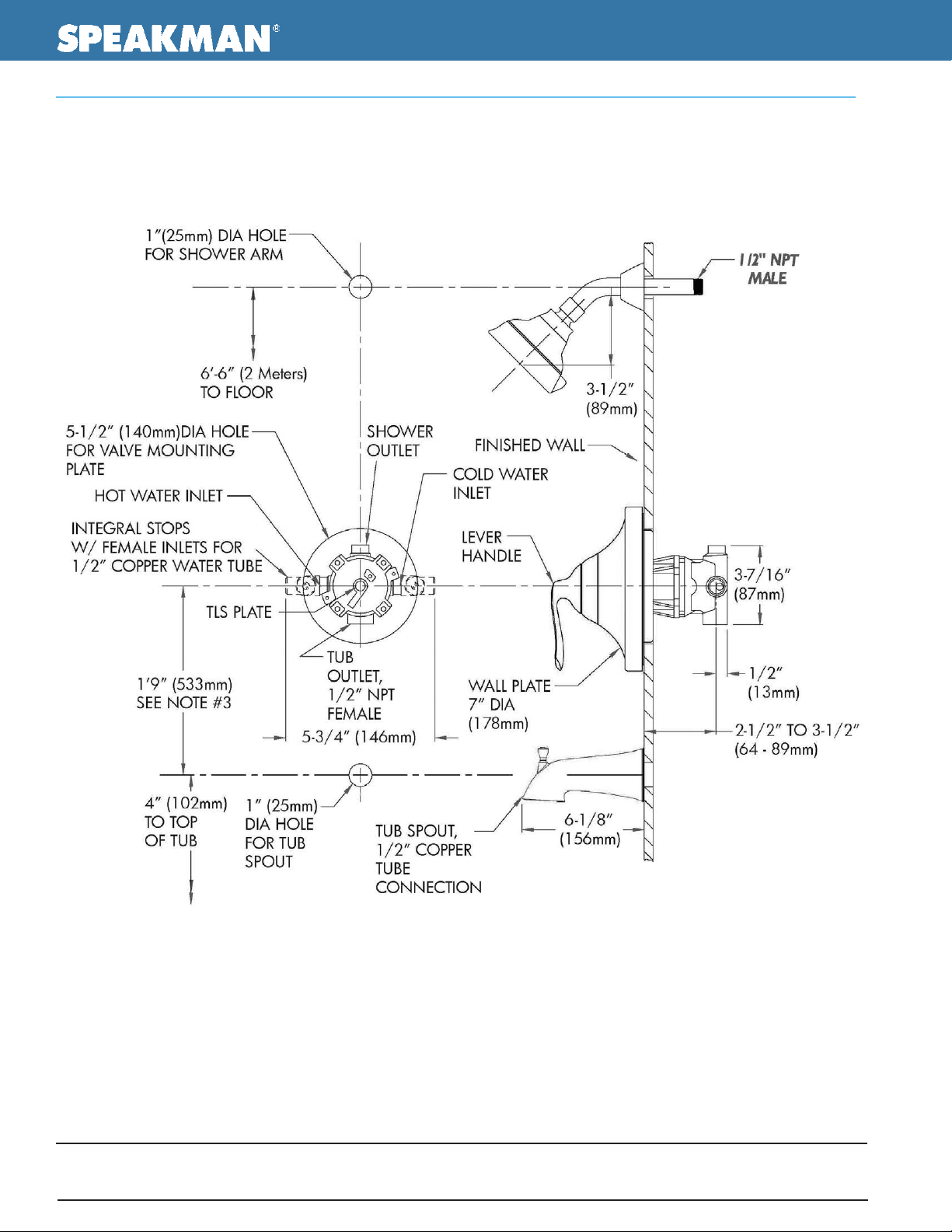

DIMENSIONS:
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice. 2. Unless otherwise
specied, all inlets and outlets are 1/2” female copper sweat. 3. For ADA mounting locations, consult ADAAG, ANSI A117.1, or static regulations.
Contractor pack valves & trim kits available.
Architect/Engineer Approval Space:
56
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -9 77-274 7
W:
WWW.SPEAKMAN.COM
R:
AUGU ST 2016
