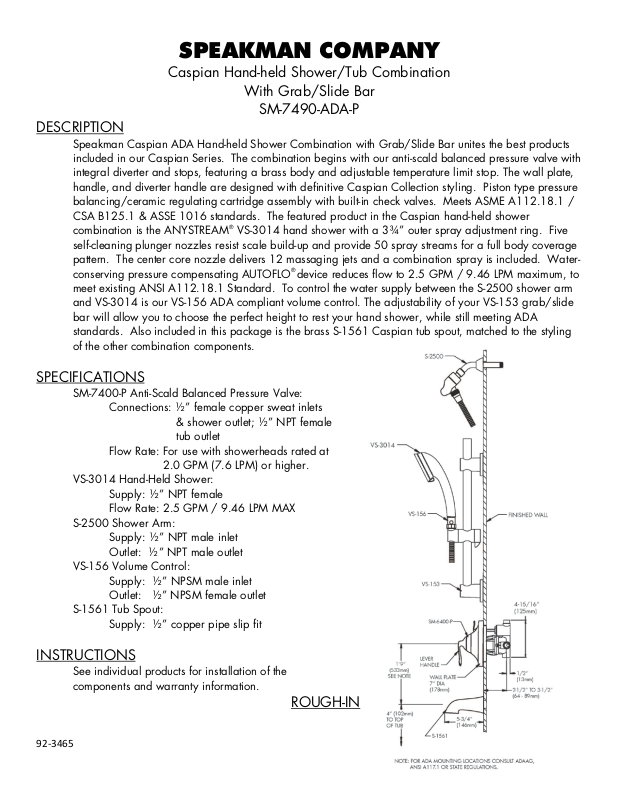

DESCRIPTION
Speakman Caspian ADA Hand-held Shower Combination with Grab/Slide Bar unites the best products
included in our Caspian Series. The combination begins with our anti-scald balanced pressure valve with
integral diverter and stops, featuring a brass body and adjustable temperature limit stop. The wall plate,
handle, and diverter handle are designed with definitive Caspian Collection styling. Piston type pressure
balancing/ceramic regulating cartridge assembly with built-in check valves. Meets ASME A112.18.1 /
CSA B125.1 & ASSE 1016 standards. The featured product in the Caspian hand-held shower
combination is the ANYSTREAM
self-cleaning plunger nozzles resist scale build-up and provide 50 spray streams for a full body coverage
pattern. The center core nozzle delivers 12 massaging jets and a combination spray is included. Waterconserving pressure compensating AUTOFLO
meet existing ANSI A112.18.1 Standard. To control the water supply between the S-2500 shower arm
and VS-3014 is our VS-156 ADA compliant volume control. The adjustability of your VS-153 grab/slide
bar will allow you to choose the perfect height to rest your hand shower, while still meeting ADA
standards. Also included in this package is the brass S-1561 Caspian tub spout, matched to the styling
of the other combination components.
SPEAKMAN COMPANY
Caspian Hand-held Shower/Tub Combination
With Grab/Slide Bar
SM-7490-ADA-P
®
VS-3014 hand shower with a 3¾” outer spray adjustment ring. Five
®
device reduces flow to 2.5 GPM / 9.46 LPM maximum, to
SPECIFICATIONS
SM-7400-P Anti-Scald Balanced Pressure Valve:
Connections: ½” female copper sweat inlets
& shower outlet; ½” NPT female
tub outlet
Flow Rate: For use with showerheads rated at
2.0 GPM (7.6 LPM) or higher.
VS-3014 Hand-Held Shower:
Supply: ½” NPT female
Flow Rate: 2.5 GPM / 9.46 LPM MAX
S-2500 Shower Arm:
Supply: ½” NPT male inlet
Outlet: ½” NPT male outlet
VS-156 Volume Control:
Supply: ½” NPSM male inlet
Outlet: ½” NPSM female outlet
S-1561 Tub Spout:
Supply: ½” copper pipe slip fit
INSTRUCTIONS
See individual products for installation of the
components and warranty information.
92-3465

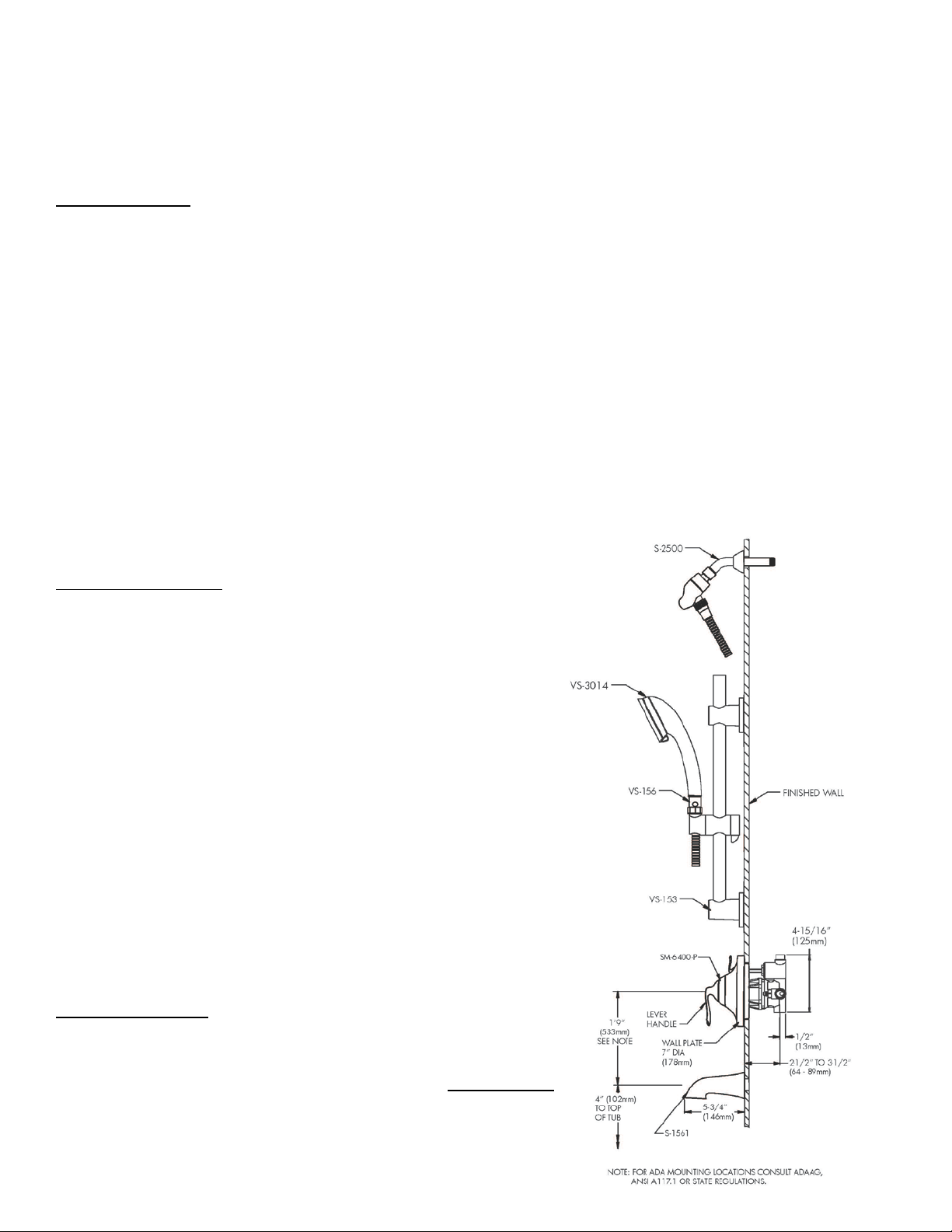

ROUGH-IN
